ZCMD41L1 OsiSense 4-Pole Fixed Limit Switch Body With Positive Opening, 2NO-2NC Contact, For Use With XCMD Standard Format Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCMD41L1
- UPC:
- 785901531753
- Item #:
- 21524
ZCMD41L1 OsiSense 4-Pole Fixed Limit Switch Body With Positive Opening, 2NO-2NC Contact, For Use With XCMD Standard Format Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR #:
- ZCMD41L1
- UPC:
- 785901531753
- Item #:
- 21524

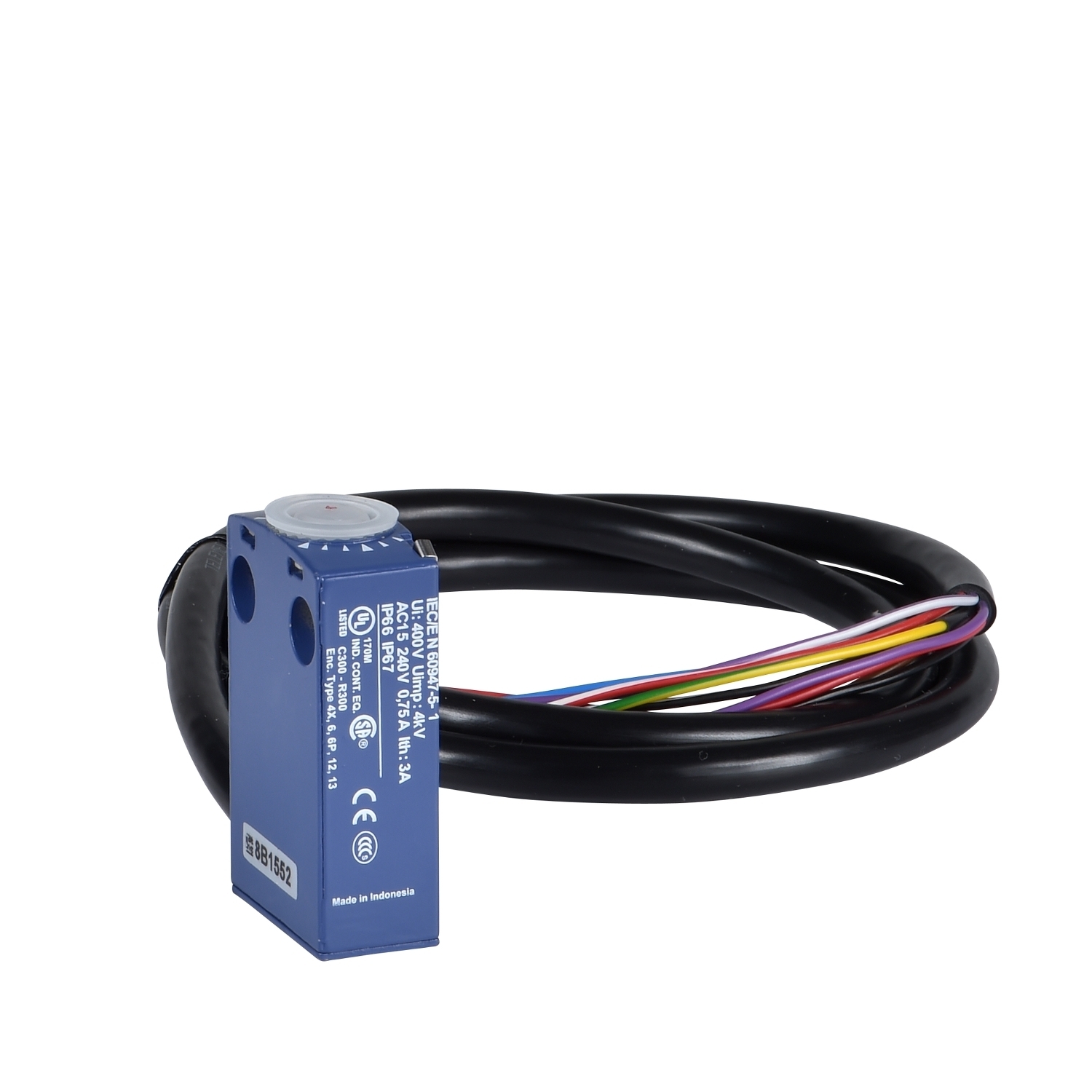

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 2 x NO + 2 x NC snap action contacts and is pre-cabled (1 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCMD41L1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 6 |
| Application | XCMD |
| Connection | Fixed cable |
| Contact Configuration | 2 NC + 2 NO |
| Number of Poles | 4 |
| Operating Cycles | 5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880350&lang=en-us |
| UPC | 785901531753 |
| GTIN | 03389110299441 |
| Item Type | Limit switch body |
| Size | 0.63 |
