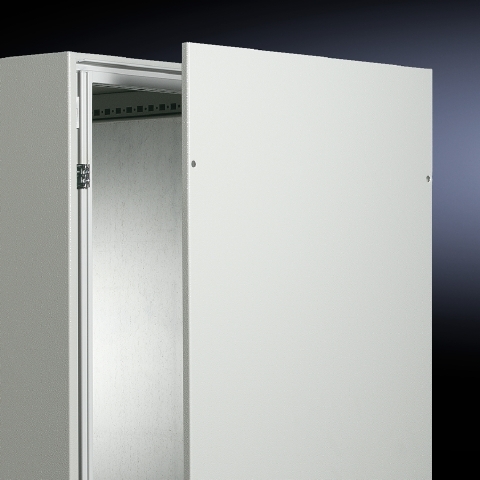

8128235 Side Wall Panel, 2200 mm H 800 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 8128235
- UPC:
- 639889367302
- Item #:
- 214878
8128235 Side Wall Panel, 2200 mm H 800 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR #:
- 8128235
- UPC:
- 639889367302
- Item #:
- 214878
Side panels, screw-fastened, sheet steel, for TS, TS IT, material: Sheet steel, 1.5 mm, surface: dipcoat-primed, powder-coated on the outside, color: RAL 7035, supply includes: Assembly parts, description: Side panels, screw-fastened, sheet steel, for TS. Packaging Unit: 2 pc(s).
Features
- Easy positioning on the frame with the location aid
- Six or eight enclosure panel fasteners with earthing insert ensure automatic potential equalisation and higher EMC protection
- Earthing bolts with contact surface are integrated
- To maintain UL Type 12 or Type 3R rating, one pair of sidewalls is required per TS8 freestanding enclosure or bayed TS8
| Catalog Number | 8128235 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | RAL 7035 |
| Consist of | Assembly Components |
| Material | Sheet Steel |
| Special Features | Features: Automatic Potential Equalization and Higher EMC Protection, Easy Positioning with the Location Aid, Grounding Bolt with Contact Surface |
| RoHS Indicator | Yes |
| UPC | 639889367302 |
| GTIN | 00639889367302 |
| Item Type | Side Panel |
| Length | 36.2990 |
| Length UOM | Inch |
| Width | 2.9530 |
| Width UOM | Inch |
| Height | 87.7950 |
| Height UOM | Inch |
| Weight | 55.115 |
| Weight UOM | Pounds |
