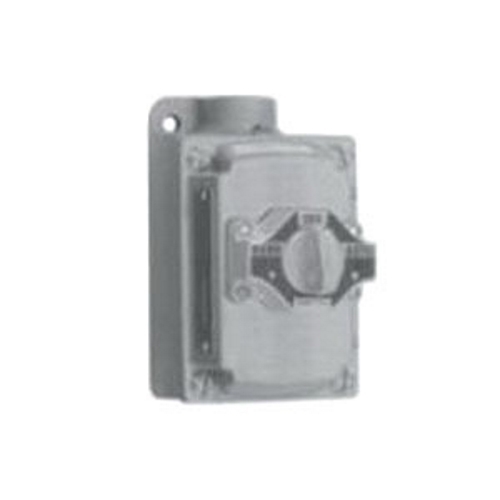

Contender EDS Series 1-Gang 2 Circuit Selector Switch, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Operation: Maintained, Standard: Class I, Divis

Manuals & Documentation
Catalog Number EDS21273
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Special Features Maintained contact; Furnished with internal ground screw; Explosionproof, dust-ignitionproof; selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements, assures positive contact and long, trouble free operation; Provide circuit control and/Or selection
Standard Class I, Division 1, Groups C, D Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
UPC 781381698481
GTIN 00781381698481
Item Type EDS Series 1-Gang 2 Circuit Selector Switch
