SQUARE D

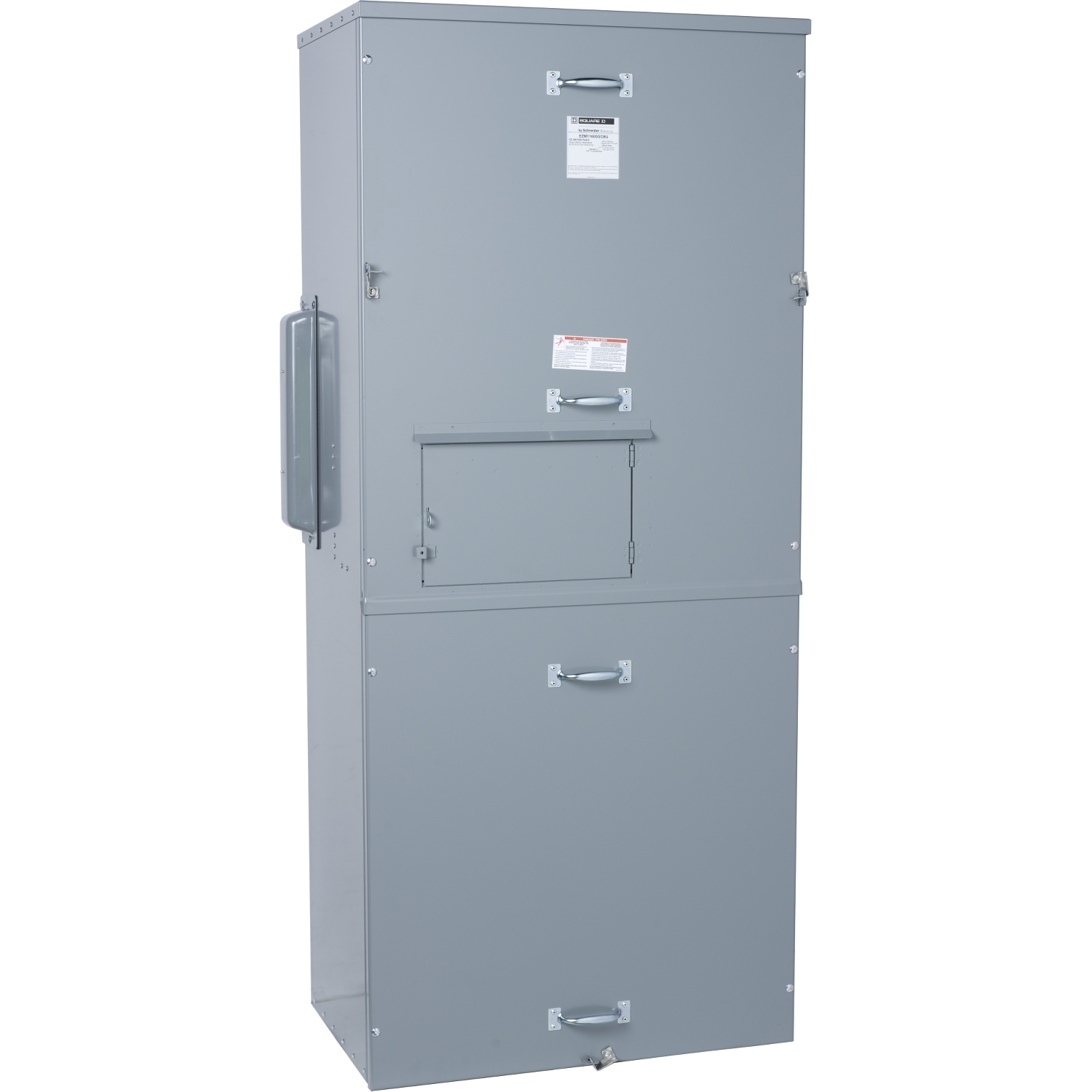

EZM11600GCBU Main Unit, EZ Meter Pak, 1600 Amp, 120/240V, 1 Phase, 3 Wire, 1Aluminum and Copper Busbar, 65 kA SCCR, Main Breaker, UG

MFR:
Schneider Electric
MFR #:
EZM11600GCBU
UPC:
785901653554
Item #:
214457

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 1600A with the busbar rated for 1200A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.

Manuals & Documentation
Catalog Number EZM11600GCBU
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Review
Enclosure Painted steel
Mounting Surface
Phase 1
Special Features Main Circuit Breaker
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61558502&lang=en-us
UPC 785901653554
GTIN 00785901653554
Item Type Meter center main unit
Width 30.19
Width UOM Inch
Height 68.7
Height UOM Inch
Depth 18.33 IN
