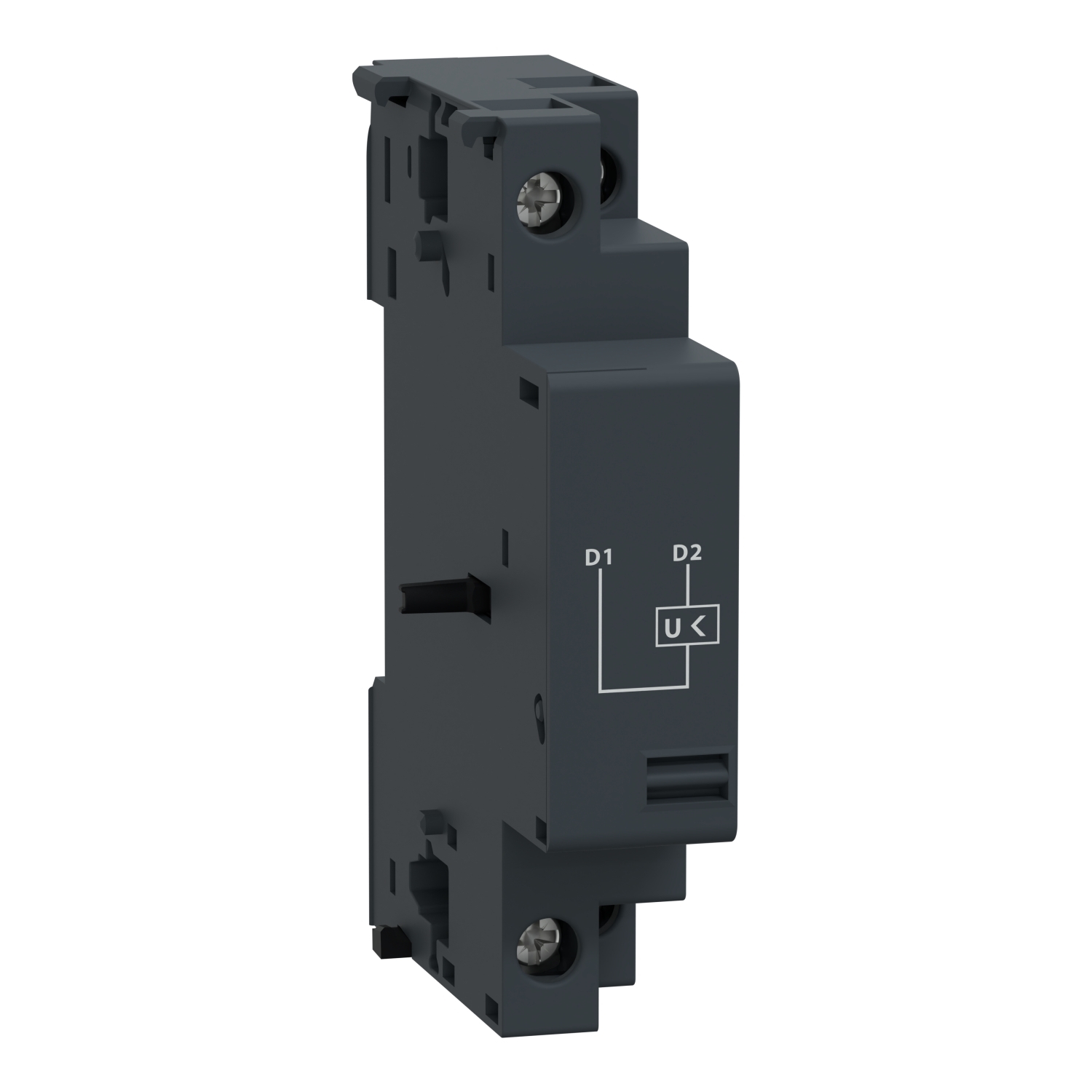

GVAU116 TeSys Undervoltage Trip, 110/115 V AC, For Use With GV2 Series Manual Starter and Protector, 60 Hz, 3.5 V AC Hold-In Power, 12 V AC Inrush, 0.7 to 0.35 V Threshold
- MFR:
- Schneider Electric
- MFR #:
- GVAU116
- Item #:
- 214367
GVAU116 TeSys Undervoltage Trip, 110/115 V AC, For Use With GV2 Series Manual Starter and Protector, 60 Hz, 3.5 V AC Hold-In Power, 12 V AC Inrush, 0.7 to 0.35 V Threshold
- MFR #:
- GVAU116
- Item #:
- 214367
TeSys GV electrical trip, MN undervoltage release, 110-115V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals & Documentation
| Catalog Number | GVAU116 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Color | Dark Gray |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=608036&lang=en-us |
| GTIN | 03389110345957 |
