Appleton

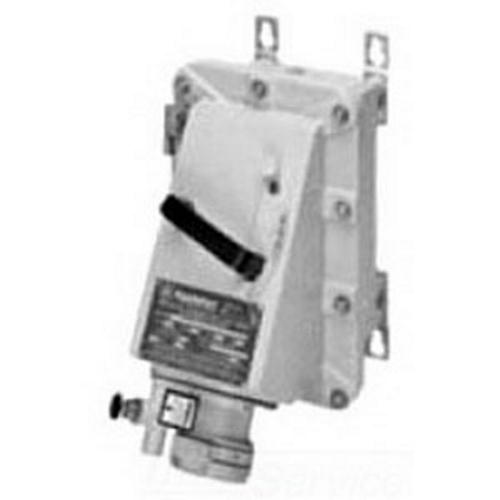

DBR6034DS 3-Phase Dust-Ignitionproof Grounding Style 2 Interlocked Explosionproof Receptacle With Disconnect Switch and Mounting Box, 600 V AC, 60 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
DBR6034DS
UPC:
781381512916
Item #:
214160

DBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 9FG, Mounting: Surface Mount, Motor Horsepower: 60 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 9.08 IN Width X 16.57 IN Height X 14.14 IN Depth, Standard: Class II, Division 1 And 2, Groups F, G, Class III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, For ACP And CPH Plugs

Manuals & Documentation
Catalog Number DBR6034DS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP And CPH Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Includes disconnect switch; Grounding style: Shell and extra pole; Weatherproof Spring Cover; Dust-Ignitionproof; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Plug mechanical cable clamps prevent strain on cables-they meet or exceed UL strain relief pull-out requirements; Neoprene bushing compressed by cable collar prevents entrance of water; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings one top to bottom; Interlocked disconnect switch provides safe connect and disconnect operation
Standard Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686
UPC 781381512916
GTIN 00781381512916
Item Type DBR Series Receptacle With Mounting Box
Voltage Rating 600
