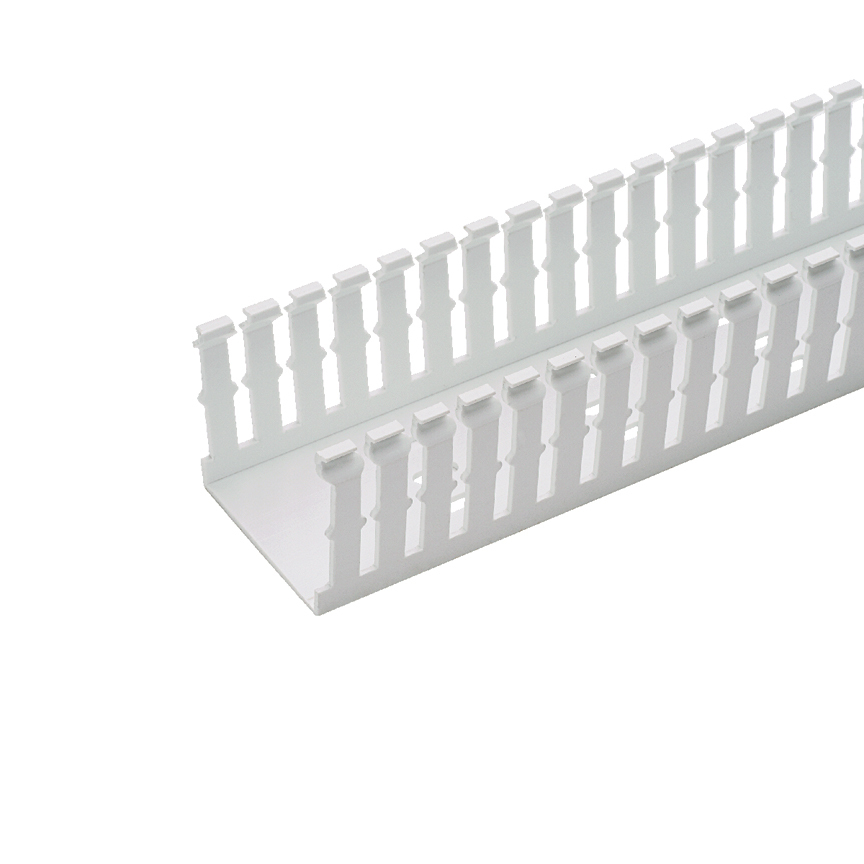

F.5X1WH6 Panduct Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 0.69 in W x 1 in D, PVC
- MFR:
- Panduit
- MFR #:
- F.5X1WH6
- UPC:
- 074983374823
- Item #:
- 213147
F.5X1WH6 Panduct Type F Base Wiring Duct, 0.2 in Narrow Slot Slot, 0.69 in W x 1 in D, PVC
- MFR #:
- F.5X1WH6
- UPC:
- 074983374823
- Item #:
- 213147
The F.5X1WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. .5 x 1.0 (12.7 mm x 25.4 mm) and 6' (1.83 m) long. Cover sold separately. Color White.
Manuals & Documentation
| Catalog Number | F.5X1WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | White |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983374823 |
| GTIN | 00074983374823 |
| Item Type | Base Wiring Duct |
| Width | 0.69 |
| Width UOM | Inch |
| Size | 0.50 x 1.0 |
