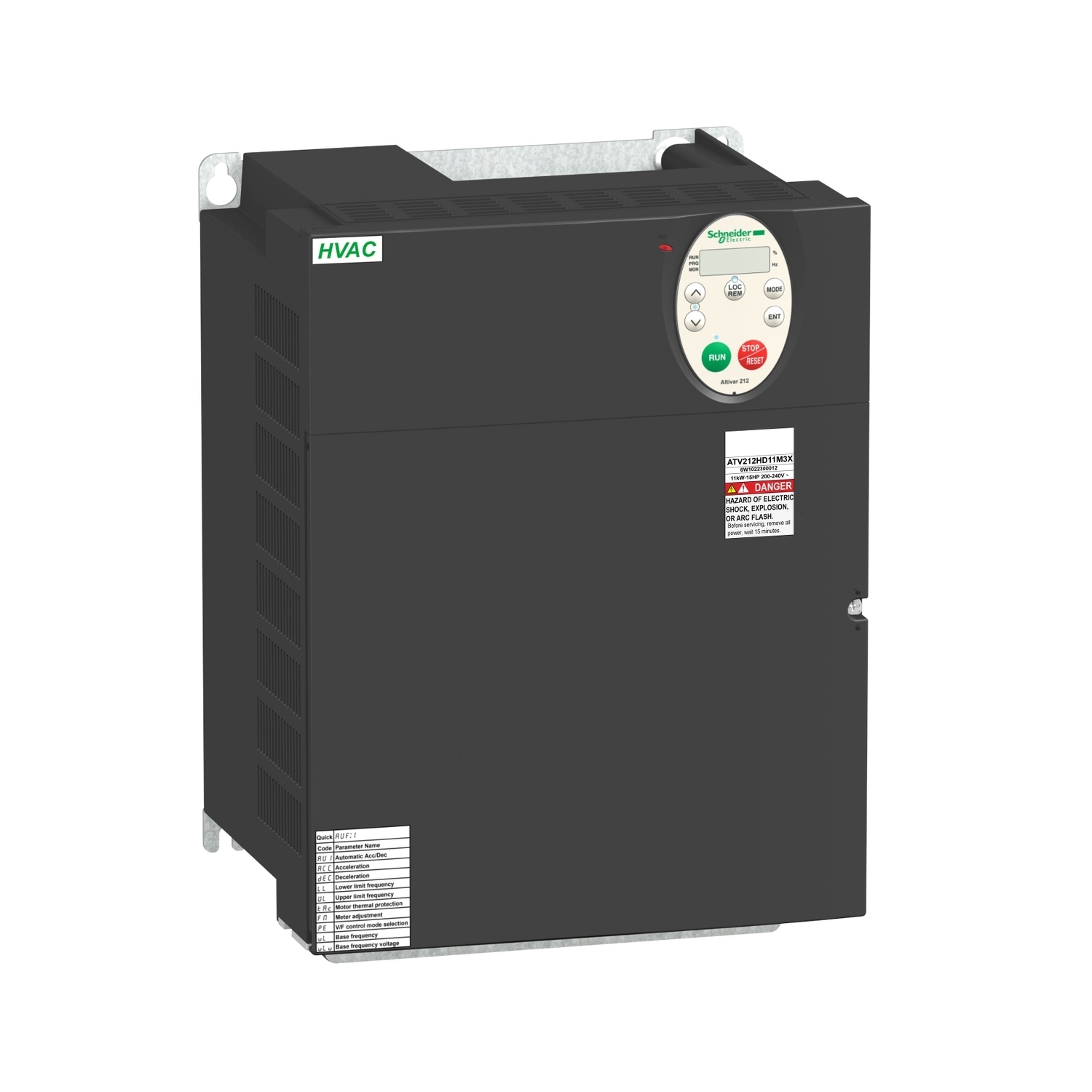

ATV212HD11M3X Altivar 3-Phase AC Variable Speed Drive With Heat Sink, 208/240 VAC, 46.2 A, 15 hp, 9.65 in W x 7.48 in D

MFR:
Schneider Electric
MFR #:
ATV212HD11M3X
Item #:
213136

variable speed drive ATV212 - 11kW - 15hp - 240V - 3ph -wo EMC - IP21

Manuals & Documentation
Catalog Number ATV212HD11M3X
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Accuracy +/- 0.6 % VIA) for a temperature variation 60 Degrees C;+/- 0.6 % VIB) for a temperature variation 60 Degrees C;+/- 1 % FM) for a temperature variation 60 Degrees C
Application Asynchronous motors;Pumps and fans in HVAC;Building - HVAC compressor for scroll;building - HVAC fan;building - HVAC pump
Communication Modbus;LonWorks;METASYS N2;BACnet;APOGEE FLN;Read device identification (43);monitoring inhibitable;read holding registers (03) 2 words maximum;write multiple registers (16) 2 words maximum;write single register (06);time out setting from 0.1 to 100 s;2-wire RS 485
Display for DC bus energized 1 LED (red)
Input Voltage 200...240 V - 15...10 %
Output Voltage <= power supply voltage
Phase 3
Response Time FM 2 ms +/- 0.5 ms analog;FLA, FLC 7 ms +/- 0.5 ms discrete;FLB, FLC 7 ms +/- 0.5 ms discrete;RY, RC 7 ms +/- 0.5 ms discrete
Special Features Flux vector control without sensor, standard;voltage/frequency ratio, 2 points;voltage/frequency ratio, 5 points;voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo);voltage/frequency ratio - Energy Saving, quadratic U/f;VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14;L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3;Overheating protection drive;thermal power stage drive;short-circuit between motor phases drive;input phase breaks drive;overcurrent between output phases and earth drive;overvoltages on the DC bus drive;break on the control circuit drive;against exceeding limit speed drive;line supply overvoltage and undervoltage drive;line supply undervoltage drive;against input phase loss drive;thermal protection motor;motor phase break motor;with PTC probes motor;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection;internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Speed Range 1-10
Standard IP21
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737712&lang=en-us
GTIN 03606480322396
Item Type Variable speed drive;1 open style;1 RJ45;Variable speed drive
