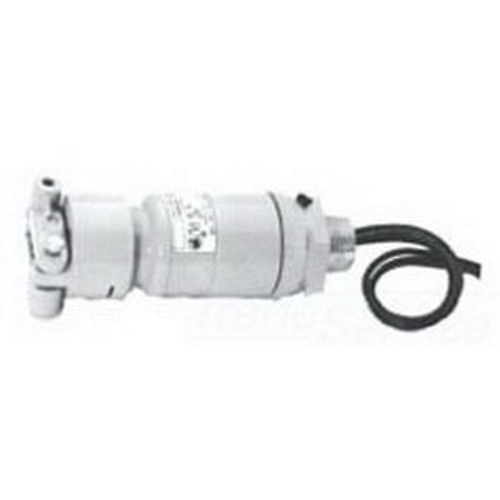

ECC756RH Dust-Ignitionproof Explosionproof Portable Straight Watertight Cord Connector, 480 V AC/DC, 20 A
- MFR:
- Appleton Electric
- MFR #:
- ECC756RH
- UPC:
- 781381248907
- Item #:
- 212014
ECC756RH Dust-Ignitionproof Explosionproof Portable Straight Watertight Cord Connector, 480 V AC/DC, 20 A
- MFR #:
- ECC756RH
- UPC:
- 781381248907
- Item #:
- 212014
ECC Series Portable Cord Connector, Wire Size: 18 - 12 AWG, Amperage Rating: 20 AMP, Voltage Rating: 480 VAC/VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 7BCD, 9G, Size: 3/4 IN Nipple, Finish: Epoxy Powder Coat, Cord Diameter: 1/2 - 5/8 IN, Dimensions: 1.84 IN Width X 1.88 IN Height X 5.53 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Group G, Class III, UL1203, UL Listed: E10444, For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
Manuals & Documentation
Features
- Discontinued
| Catalog Number | ECC756RH |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Special Features | Explosionproof, dust-ignitionproof; ECC connects portable cord to explosionproof fixed enclosure; Watertight; Furnished with 90 DEG C wire leads; 12 IN leads of #12 stranded wire are furnished for connection to wiring or equipment within the explosion-proof housing |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G; Class III; UL1203; UL Listed: E10444 |
| UPC | 781381248907 |
| GTIN | 00781381248907 |
| Item Type | ECC Series Portable Cord Connector |
| Size | 3/4 IN Nipple |
| Voltage Rating | 480 |
| Wire Size | 18 - 12 AWG |
