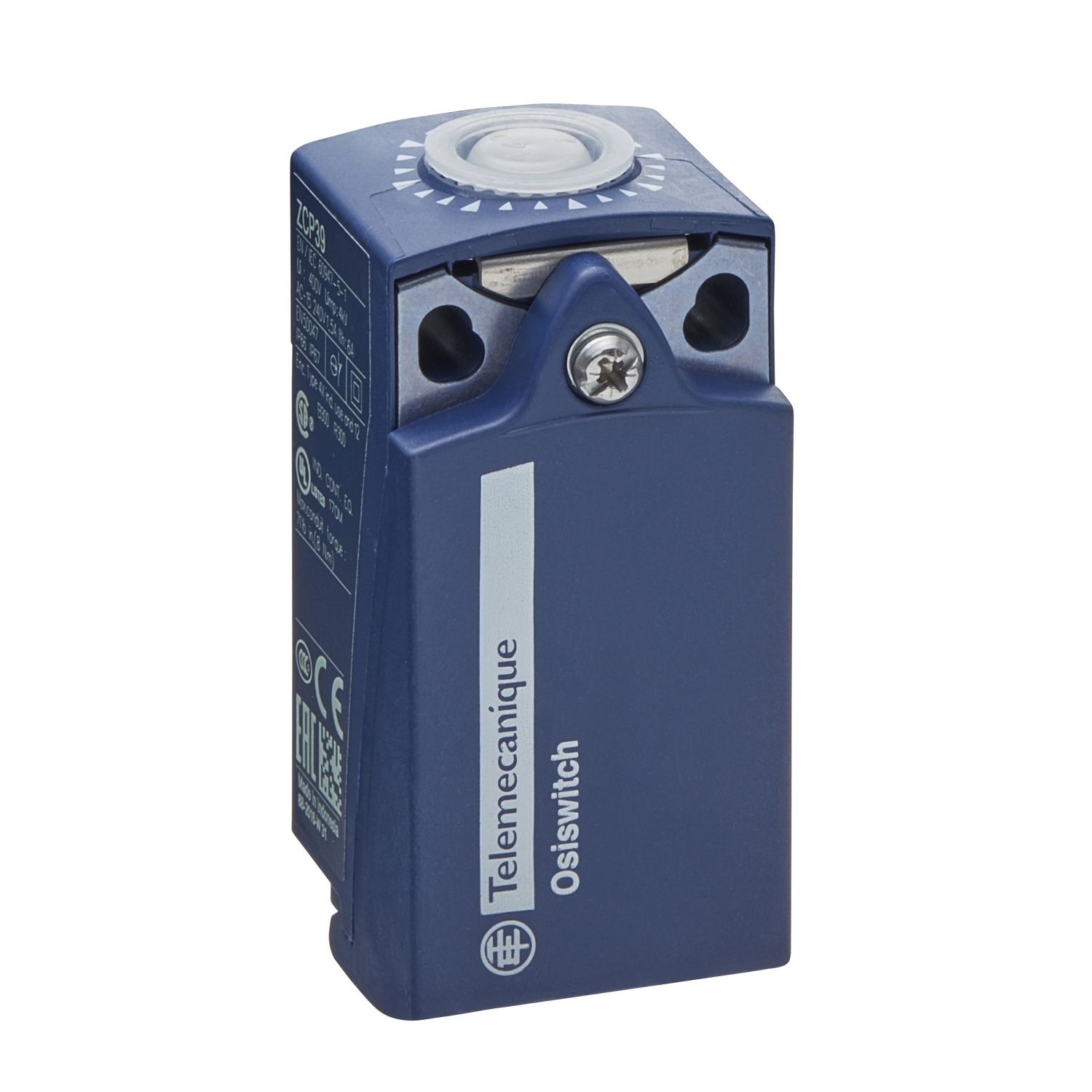

ZCP39 OsiSense 3-Pole Fixed Limit Switch Body With XCKP Standard Compact Limit Switch, 1NO-2NC Contact, For Use With XCKP Standard Compact Limit Switch, 0.75 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCP39
- UPC:
- 785901420859
- Item #:
- 210530
ZCP39 OsiSense 3-Pole Fixed Limit Switch Body With XCKP Standard Compact Limit Switch, 1NO-2NC Contact, For Use With XCKP Standard Compact Limit Switch, 0.75 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR #:
- ZCP39
- UPC:
- 785901420859
- Item #:
- 210530

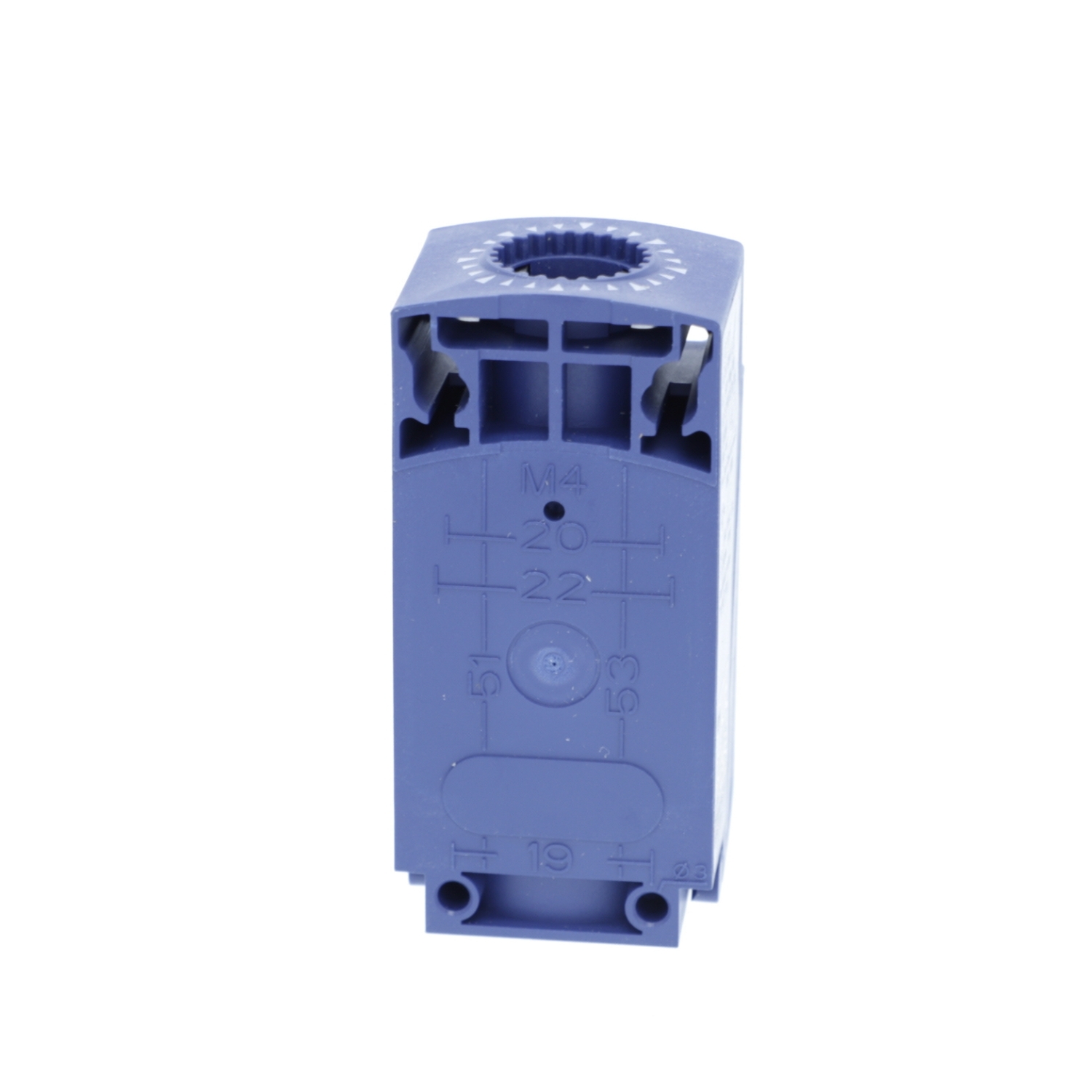

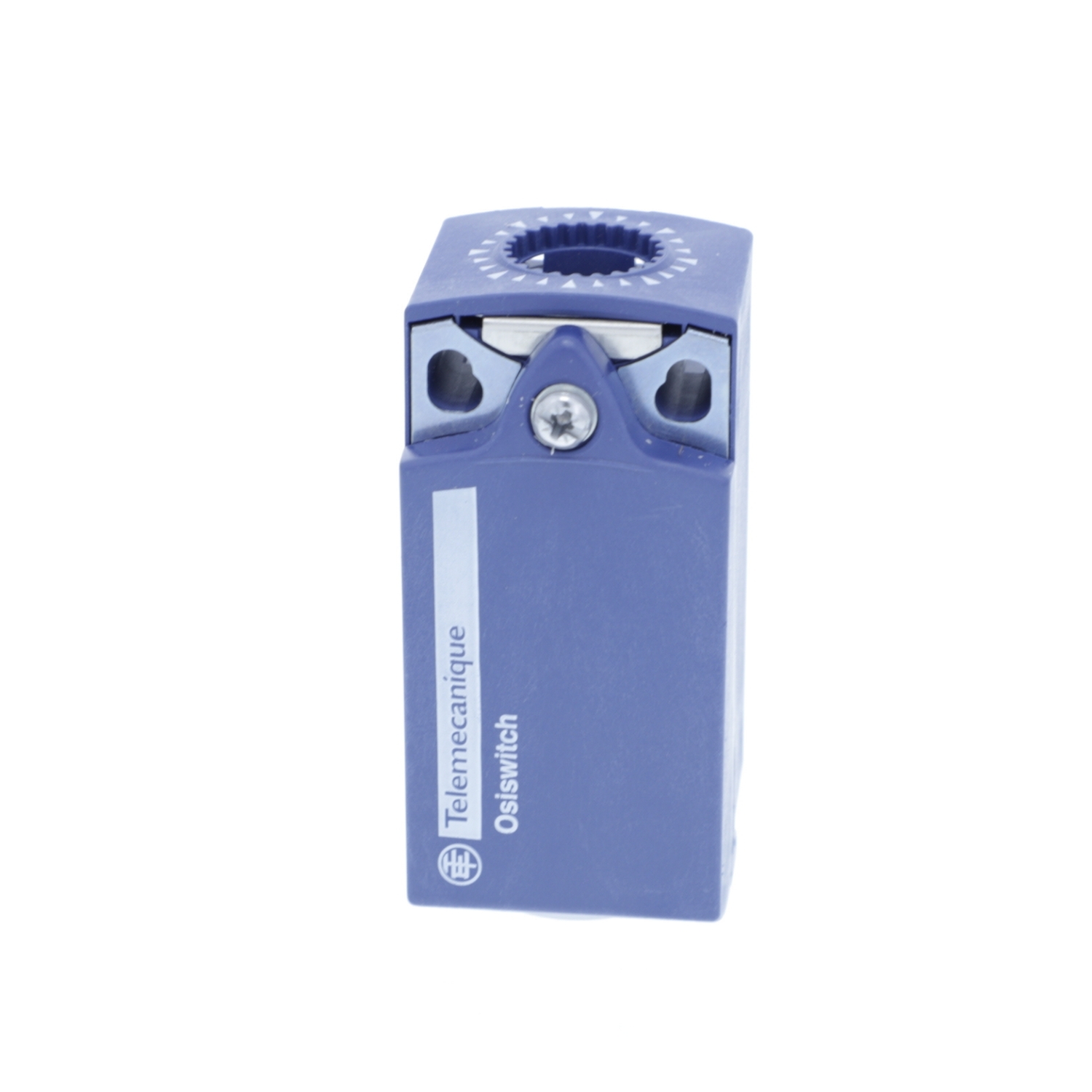

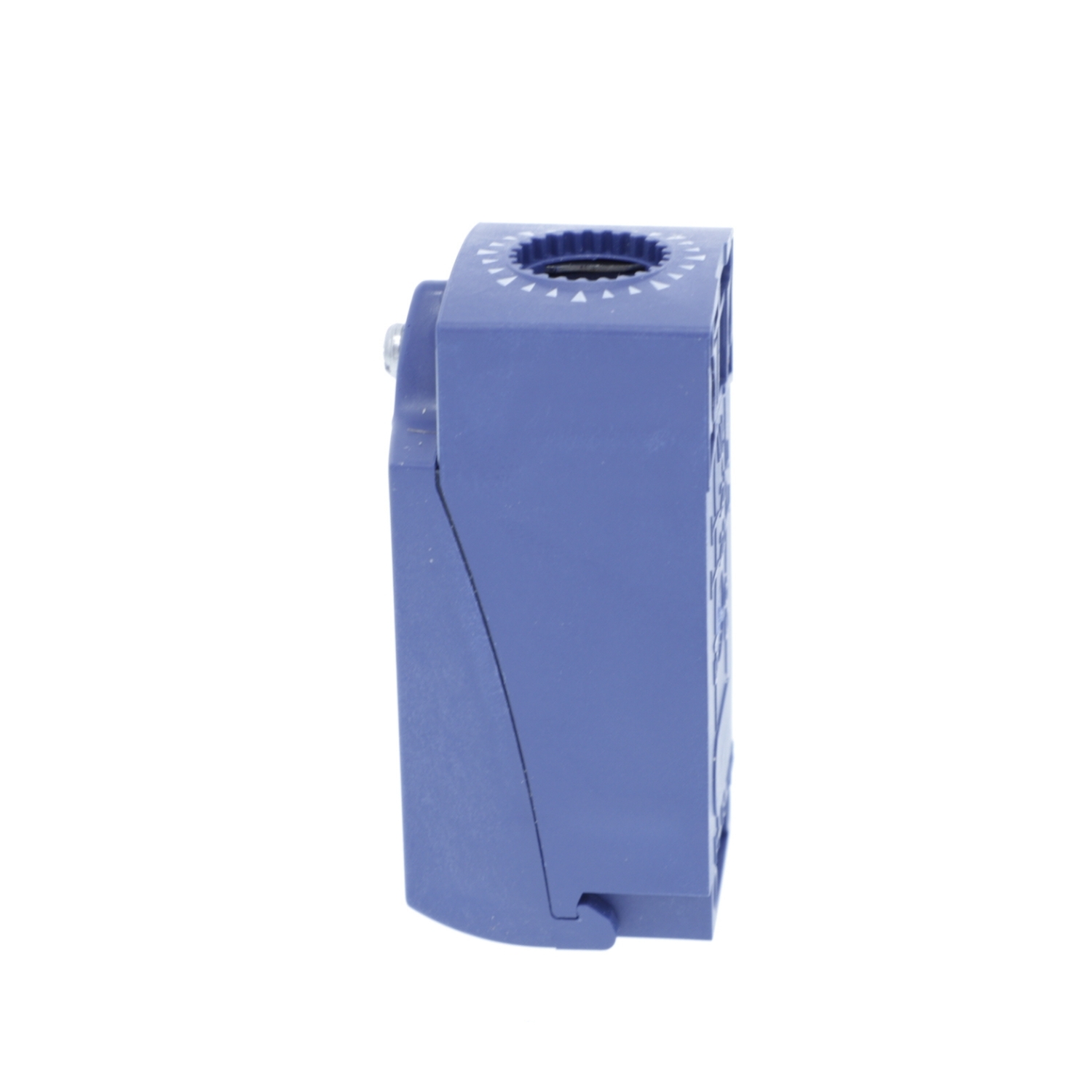

This ZCP body/contact assembly has standard contacts and a plastic body. It has 1 x NO + 2 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCP39 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 10 |
| Application | XCKP |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 0.75 mm² |
| Contact Configuration | 2 NC + 1 NO |
| Number of Poles | 3 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880414&lang=en-us |
| UPC | 785901420859 |
| GTIN | 03389110180497 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
