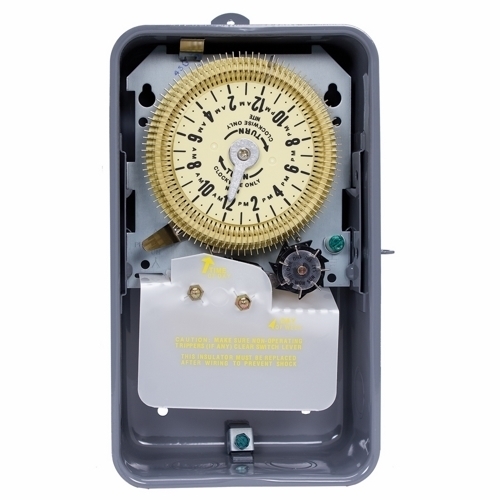

T1975ER T1970 Electro Mechanical Timer Switch With Skipper Wheel, 15 min to 24 hr Setting, 480 V AC, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- T1975ER
- UPC:
- 078275192607
- Item #:
- 209656
T1975ER T1970 Electro Mechanical Timer Switch With Skipper Wheel, 15 min to 24 hr Setting, 480 V AC, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR #:
- T1975ER
- UPC:
- 078275192607
- Item #:
- 209656
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.
Manuals & Documentation
| Catalog Number | T1975ER |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SPDT |
| Application | Indoor/Outdoor |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 20 AMP @ 125/208 - 277/480 VAC |
| Enclosure | NEMA 3R Steel |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Trippers slide Up/Down in dial slots for fast, accurate setting, Provides up to 96 operations (48 ON/48 OFF) every 24 hours, one year Limited warranty |
| Standard | cCSAus Certified |
| UPC | 078275192607 |
| GTIN | 00078275192607 |
| Item Type | Electromechanical |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 15 MIN - 24 HR |
| Voltage Rating | 480 |
| Wattage | 3 W |
