Discontinued
SCHNEIDER ELECTRIC

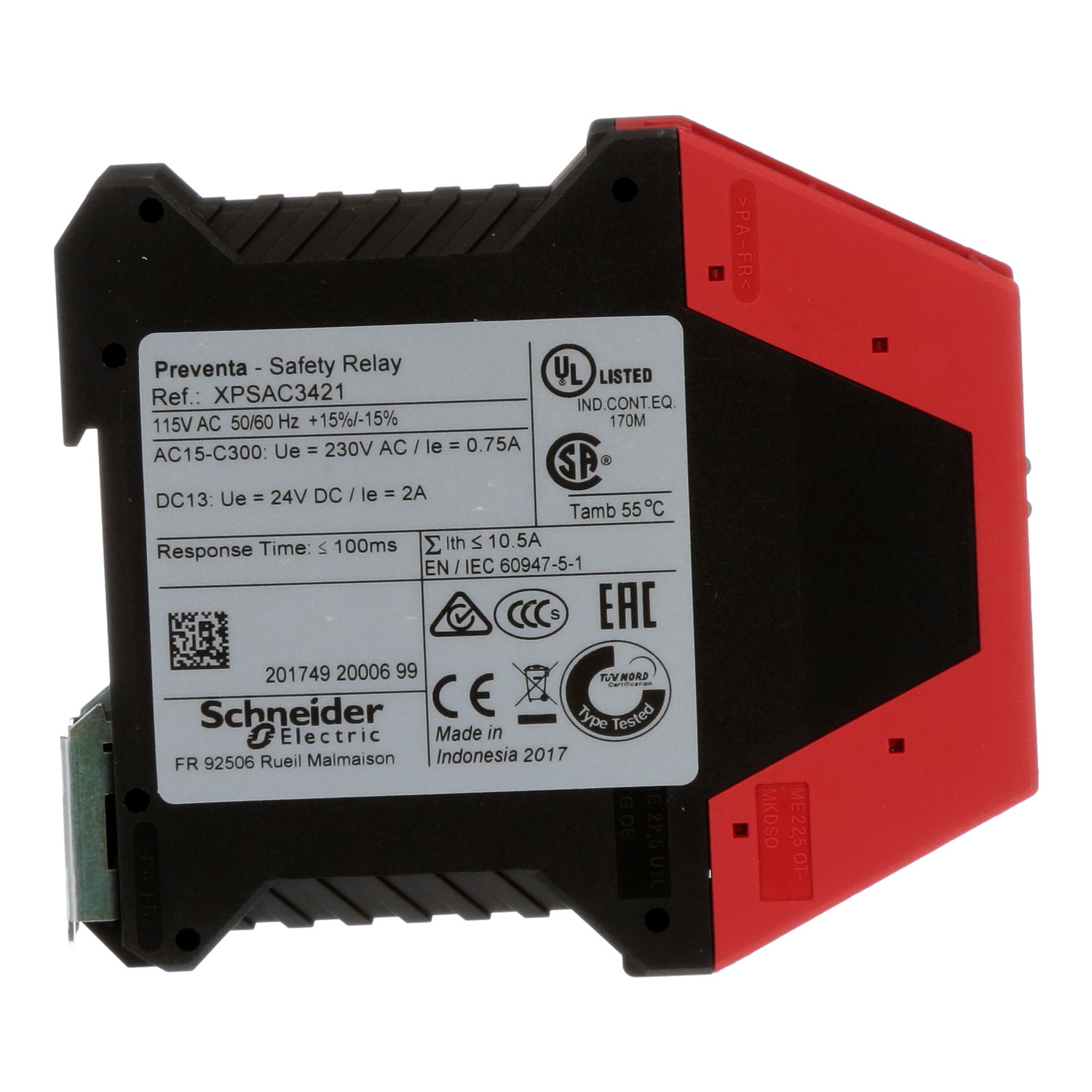

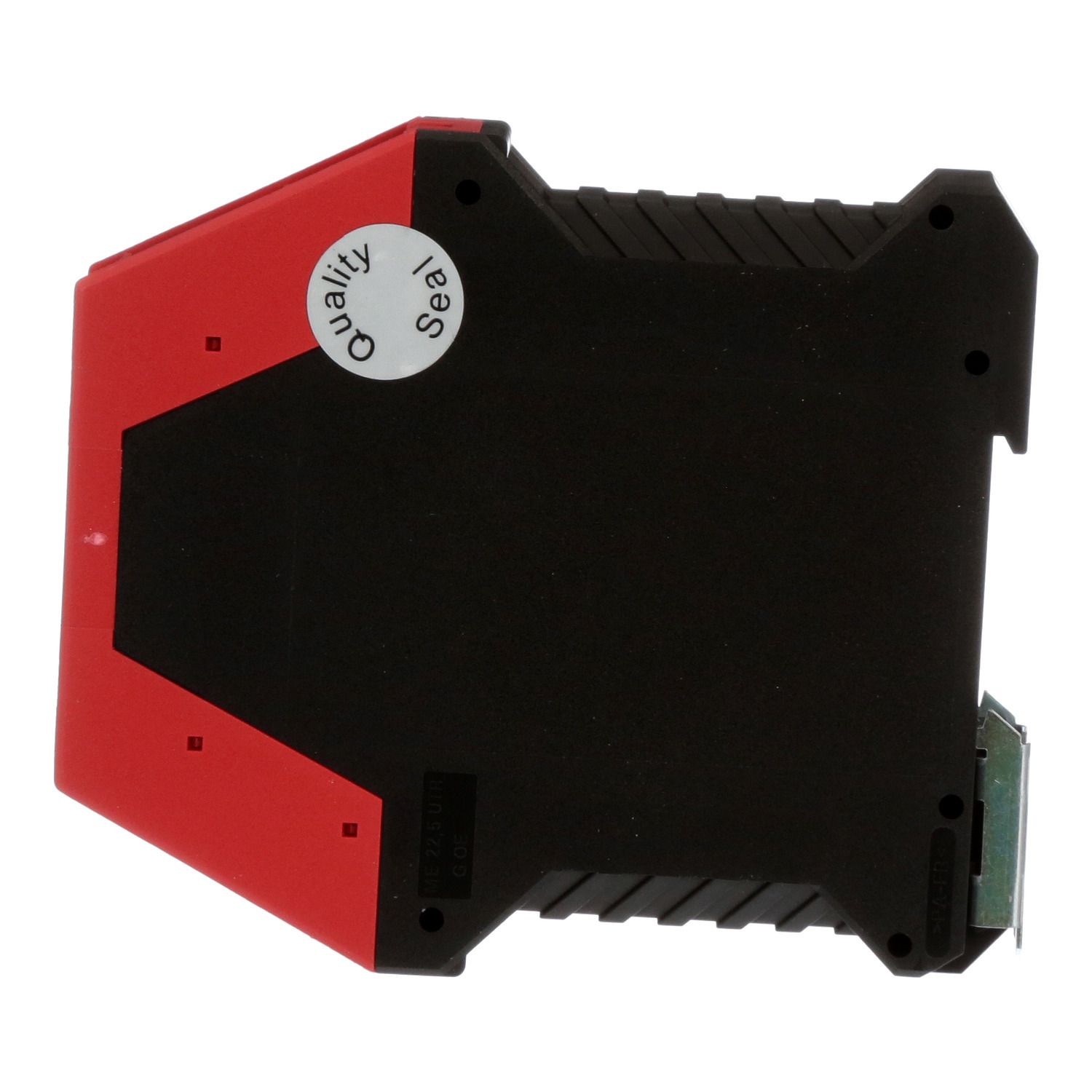

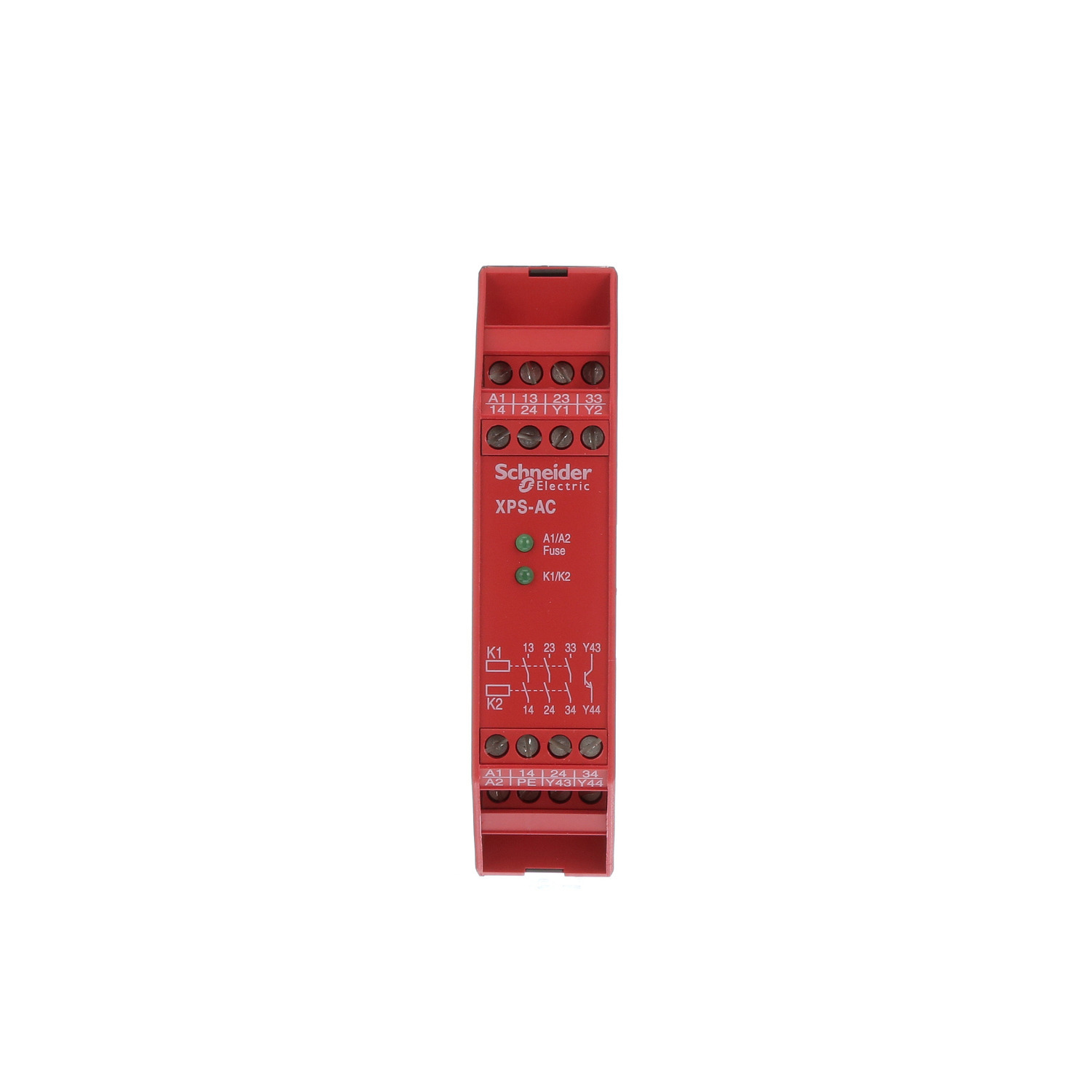

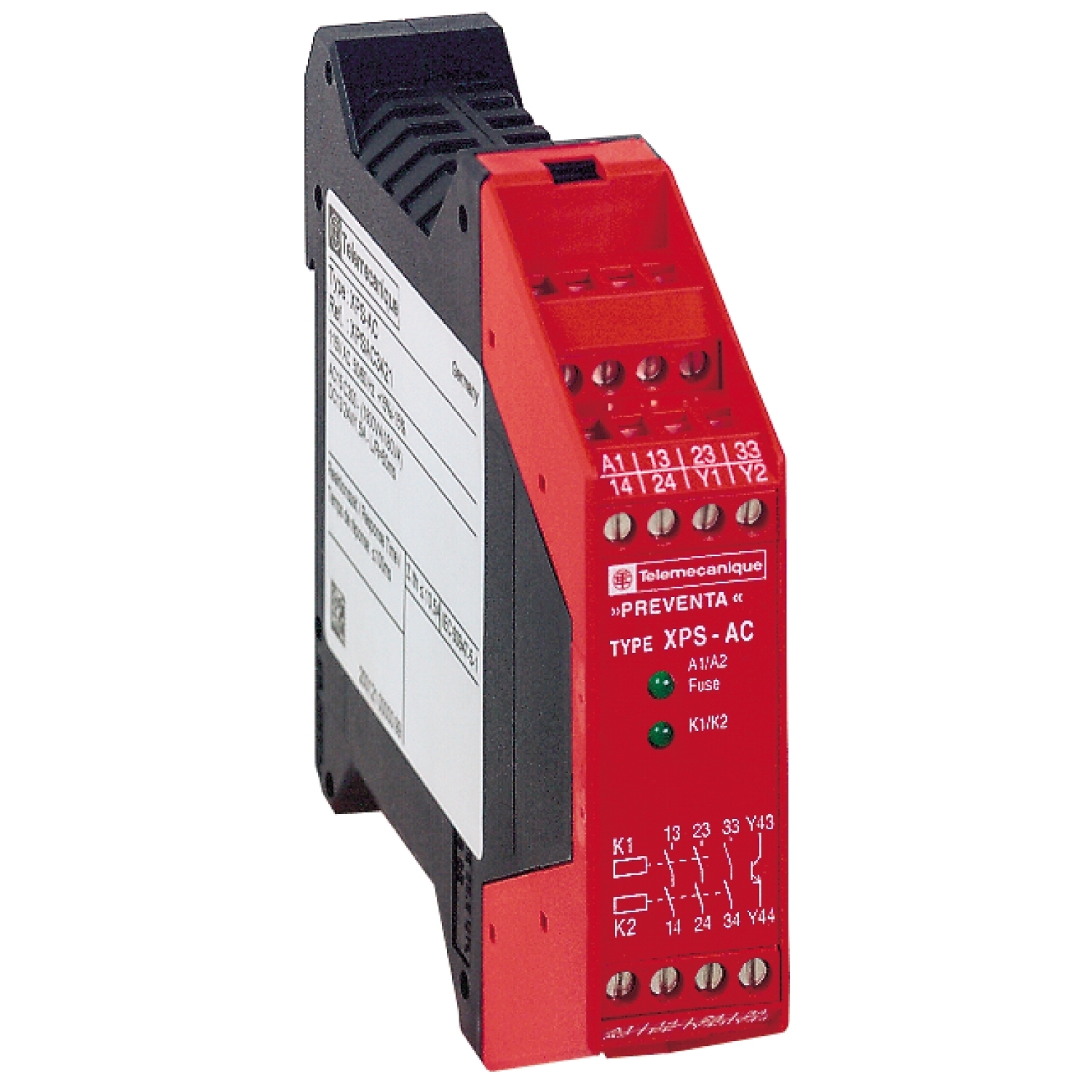

XPSAC3421 XPSAC Safety Relay, 2.5 A, 3NO 3 Form A Contact, 115 V AC V Coil

MFR:
Schneider Electric
MFR #:
XPSAC3421
Item #:
209005

This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It has additional solid-state output for communication with PLCs about safety status of your process.

Manuals & Documentation
Catalog Number XPSAC3421
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application For emergency stop and switch monitoring;Switch monitoring;emergency stop
Connection Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double bezel;captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double bezel;captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double bezel;captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel;captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double bezel;captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double bezel;captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel;captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel

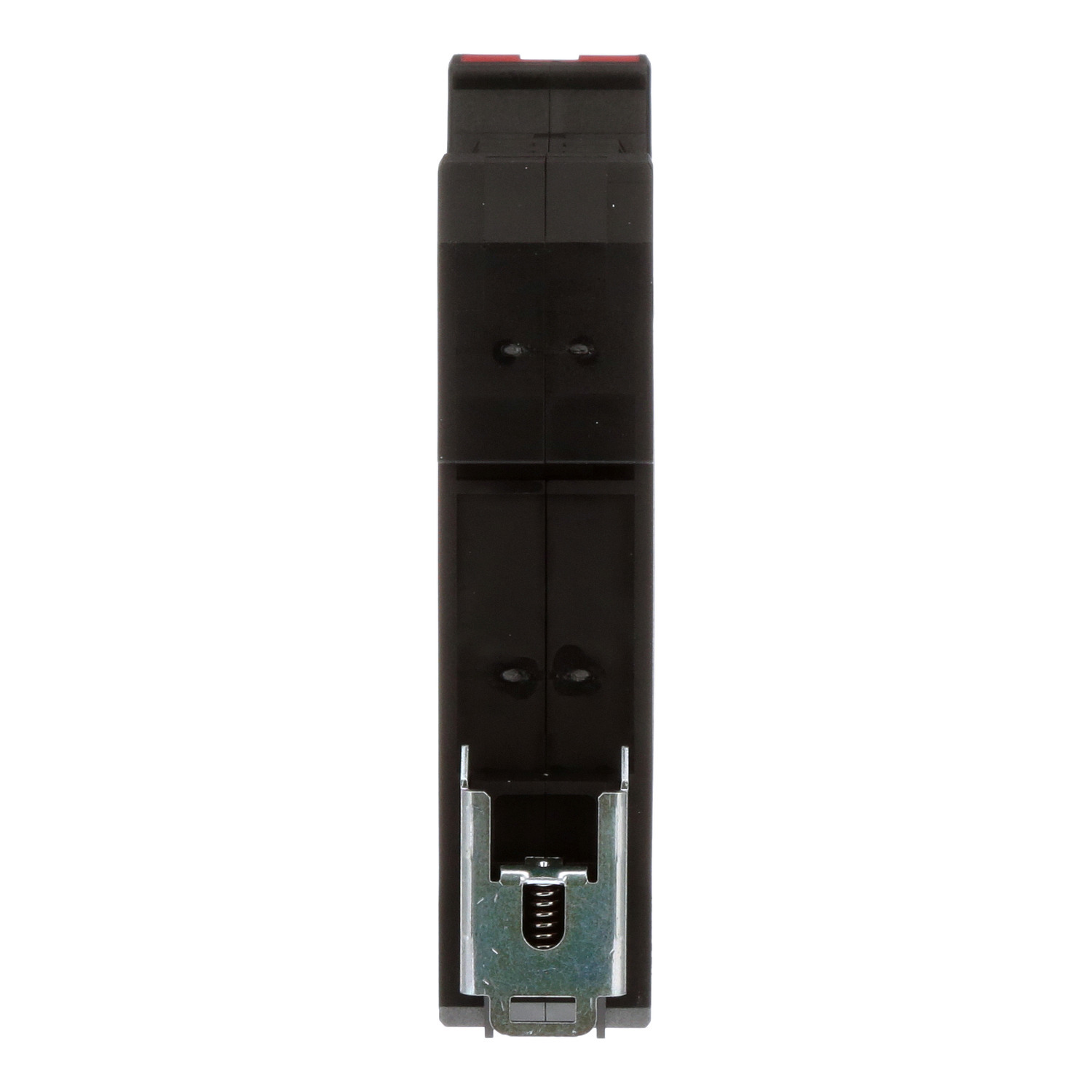

Mounting Din Rail
Output Relay instantaneous opening, 3 NO, volt-free
Power Supply 115 V AC - 15...15 %
Standard MTTFd = 210.4 years EN/ISO 13849-1;DC > 99 % EN/ISO 13849-1;PFHd = 3.56E-9 1/h EN/IEC 62061;Can reach PL e/category 4 EN/ISO 13849-1;can reach SILCL 3 EN/IEC 62061
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1460566&lang=en-us
GTIN 03389110274042
Item Type Preventa safety module
