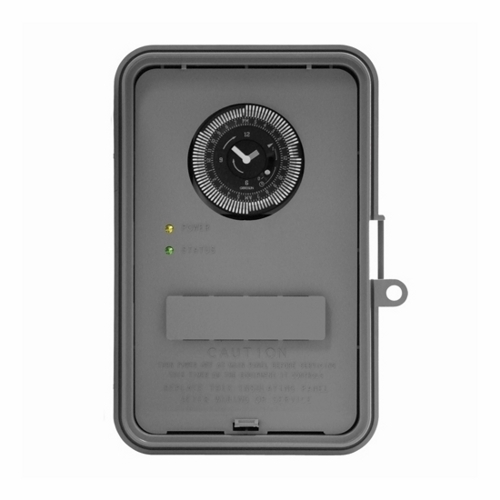

GM40AV GM40, 15 min to 24 hr Setting, 120 to 208/240/277 V AC, 1 hp, 2 hp, 2NO-2NC 2 Form C DPDT Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- GM40AV
- UPC:
- 078275123755
- Item #:
- 2069
GM40AV GM40, 15 min to 24 hr Setting, 120 to 208/240/277 V AC, 1 hp, 2 hp, 2NO-2NC 2 Form C DPDT Contact, 2 Poles
- MFR #:
- GM40AV
- UPC:
- 078275123755
- Item #:
- 2069
The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Manuals & Documentation
| Catalog Number | GM40AV |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | 1 x DPDT |
| Amperage Rating | 40 |
| Application | General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor |
| Connection | Screw Box Lug |
| Contact Configuration | 2 NO/2 NC |
| Contact Rating | 40 AMP @ 120 - 277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120 - 277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC) |
| Enclosure | NEMA 3R Plastic |
| Mounting | Wall |
| Number of Poles | 2 |
| Operating Cycles | 50000 |
| Special Features | Features: Power and Status LED Indicators, 96 Captive Trippers Enable 48 ON/OFF Operations each Day, Automatically Adjusts Voltages between 120 and 277 VAC, Manual 3-Way OFF/AUTO/ON Override Switch, Easy-to-Set True Clockface, Mechanism Simply Snaps into many Enclosures, 1 Year Warranty |
| Standard | cULus Listed #E10694, HVACR |
| UPC | 078275123755 |
| GTIN | 00078275123755 |
| Item Type | Electromechanical Auto-Voltage |
| Size | 8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM |
| Environmental Conditions | 0 - 95 RH Non-Condensing |
| Operating Temperature | -40 to +131 DEG F, -40 to +55 DEG C |
| Timing Range | 15 MIN - 24 HR |
| Voltage Rating | 120 - 208/240/277 |
| Cross Reference Products | TU40 |
