SQUARE D

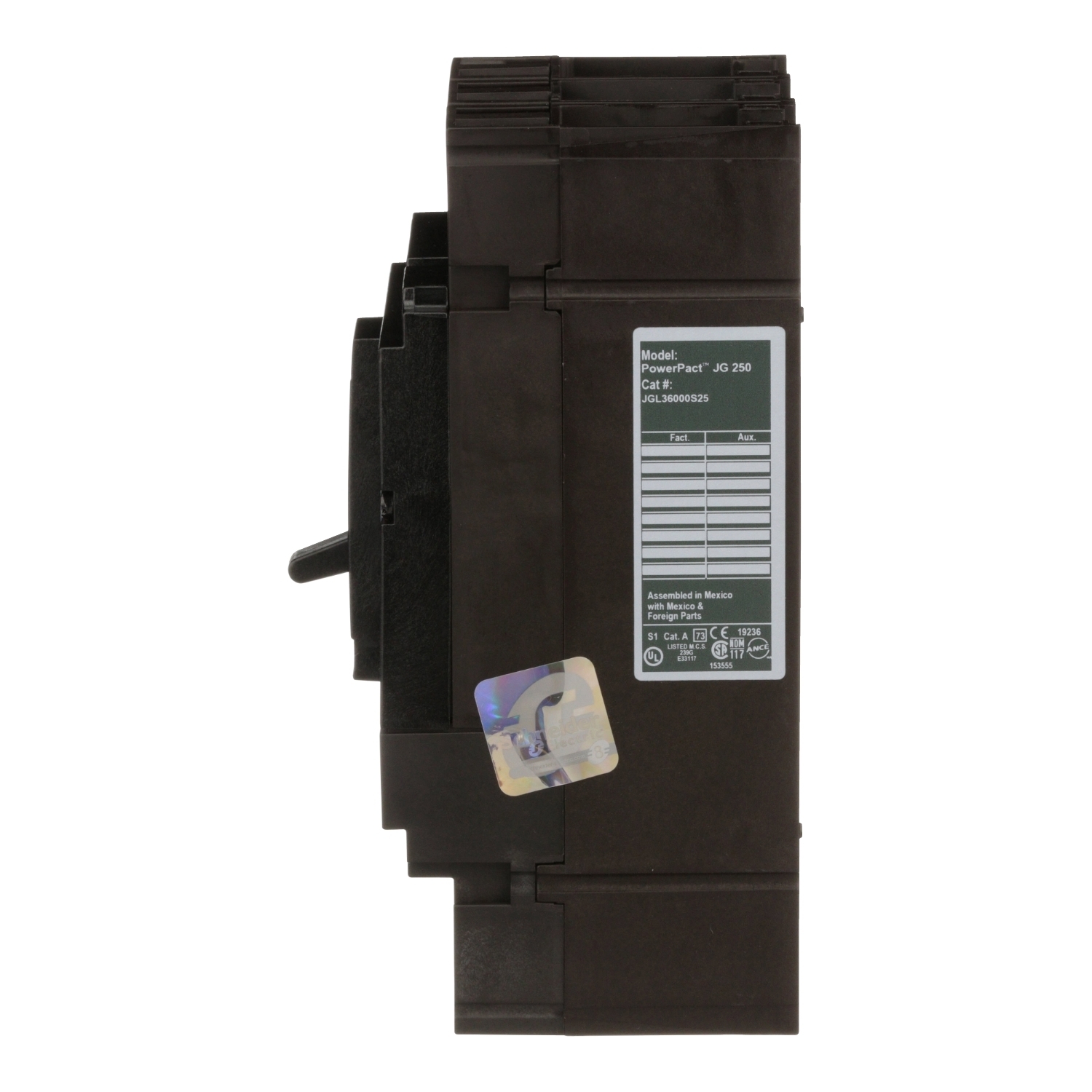

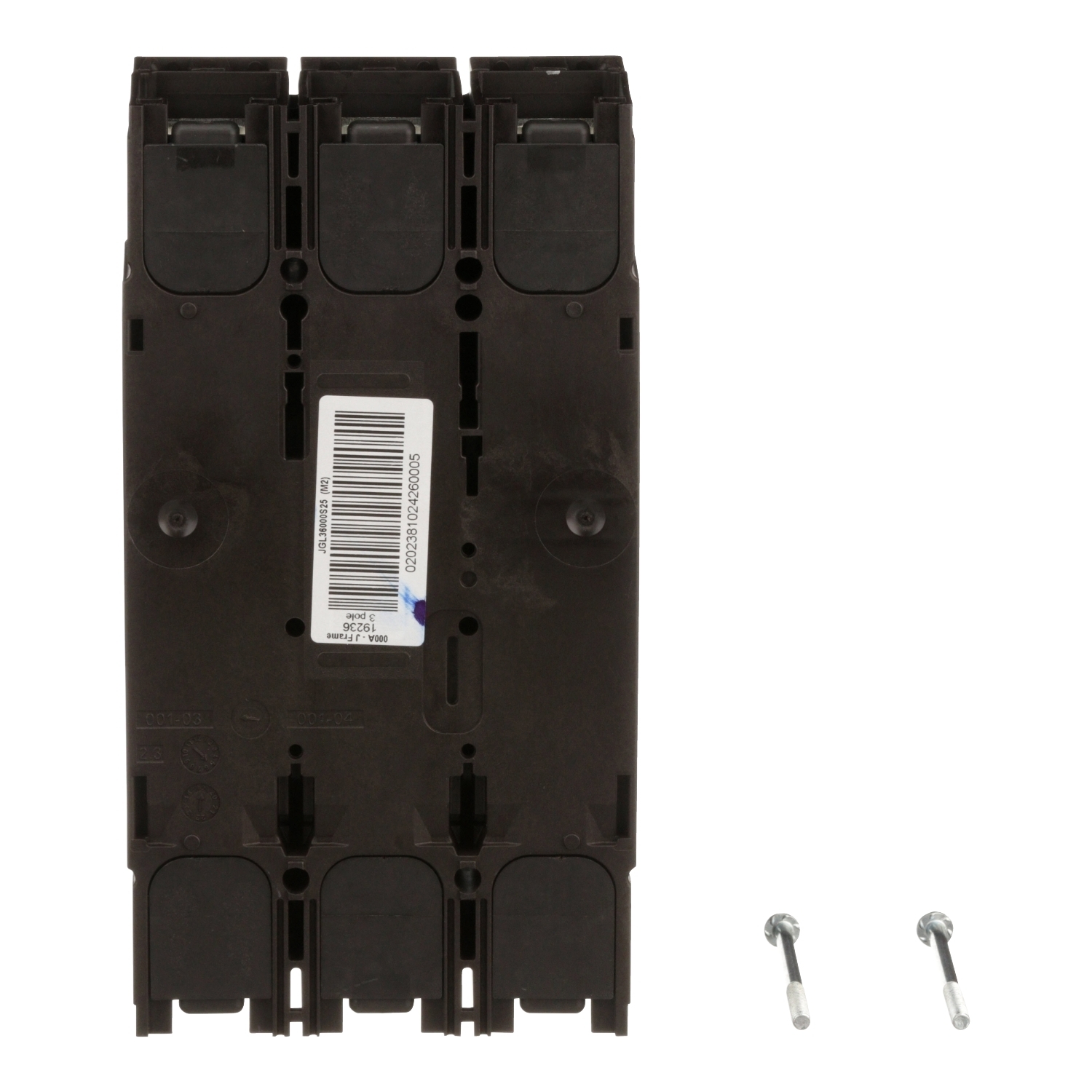

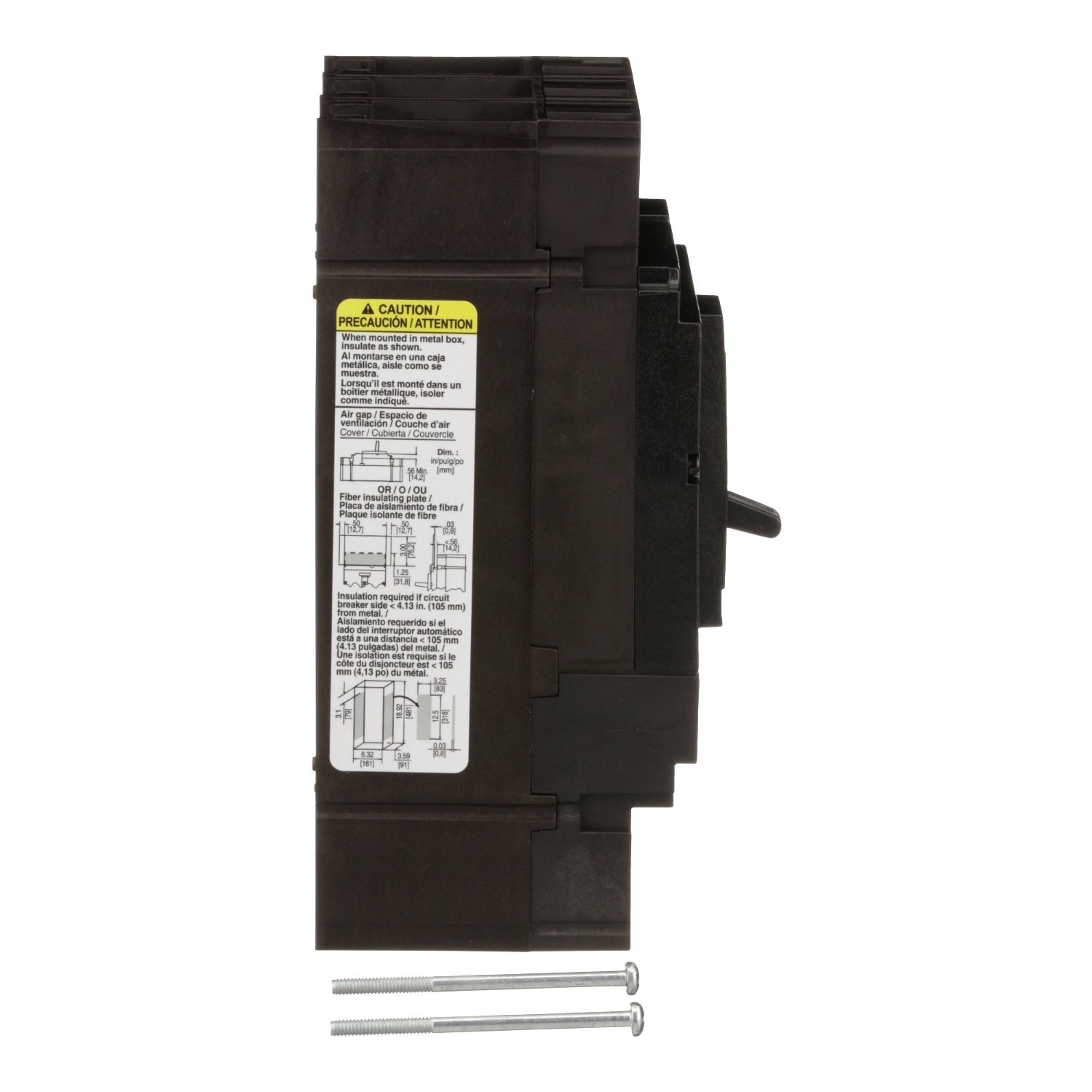

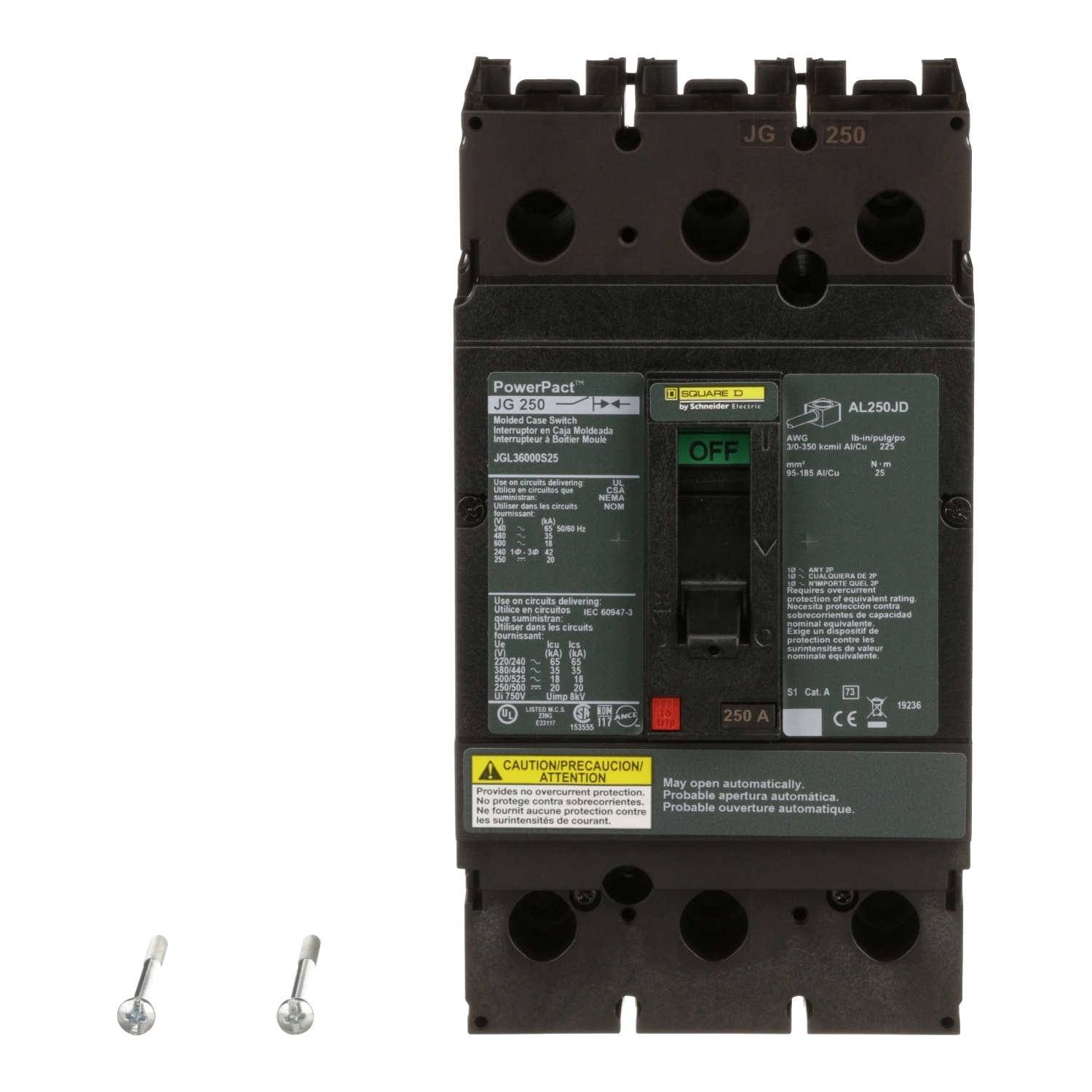

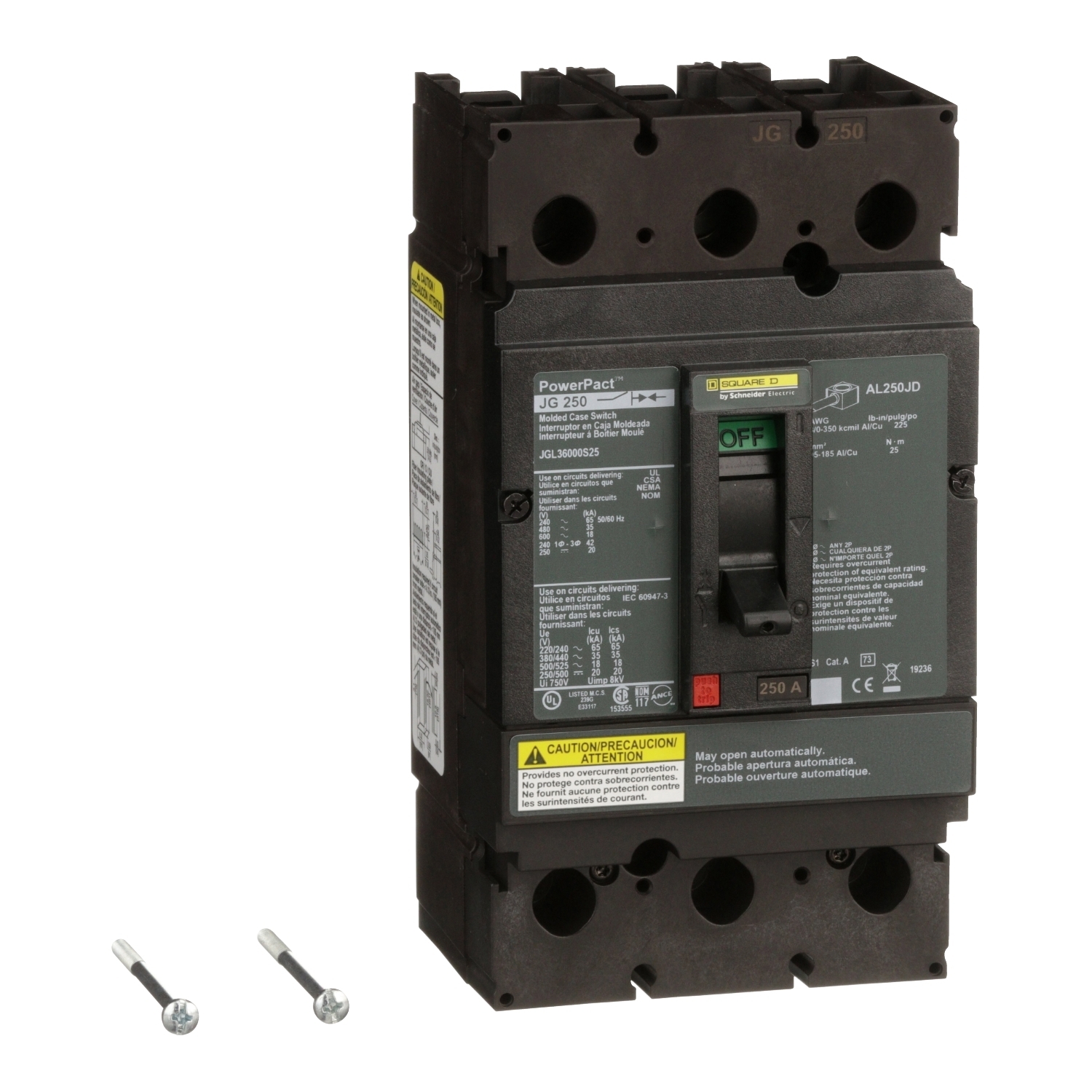

JGL36000S25 Molded Case Circuit Breaker, 250 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
JGL36000S25
UPC:
785901598862
Item #:
206683

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.

Manuals & Documentation
Catalog Number JGL36000S25
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Connection Lugs, line;lugs, load; x AWG 3/0...350 kcmil ( aluminium/copper )
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425613&lang=en-us
UPC 785901598862
GTIN 00785901598862
Depth 4.5 IN
Cross Reference Products Eaton JD3250K|Eaton JD3250KW|GEIndust SFDA36AN0250|GEIndust TFK236Y225|Grainger 2DL27|Rockwell S3H225DW|Rockwell T4N250DW|Schneider JGL36000S25|Schneider KAL36000M|Schneider KHL36000M
