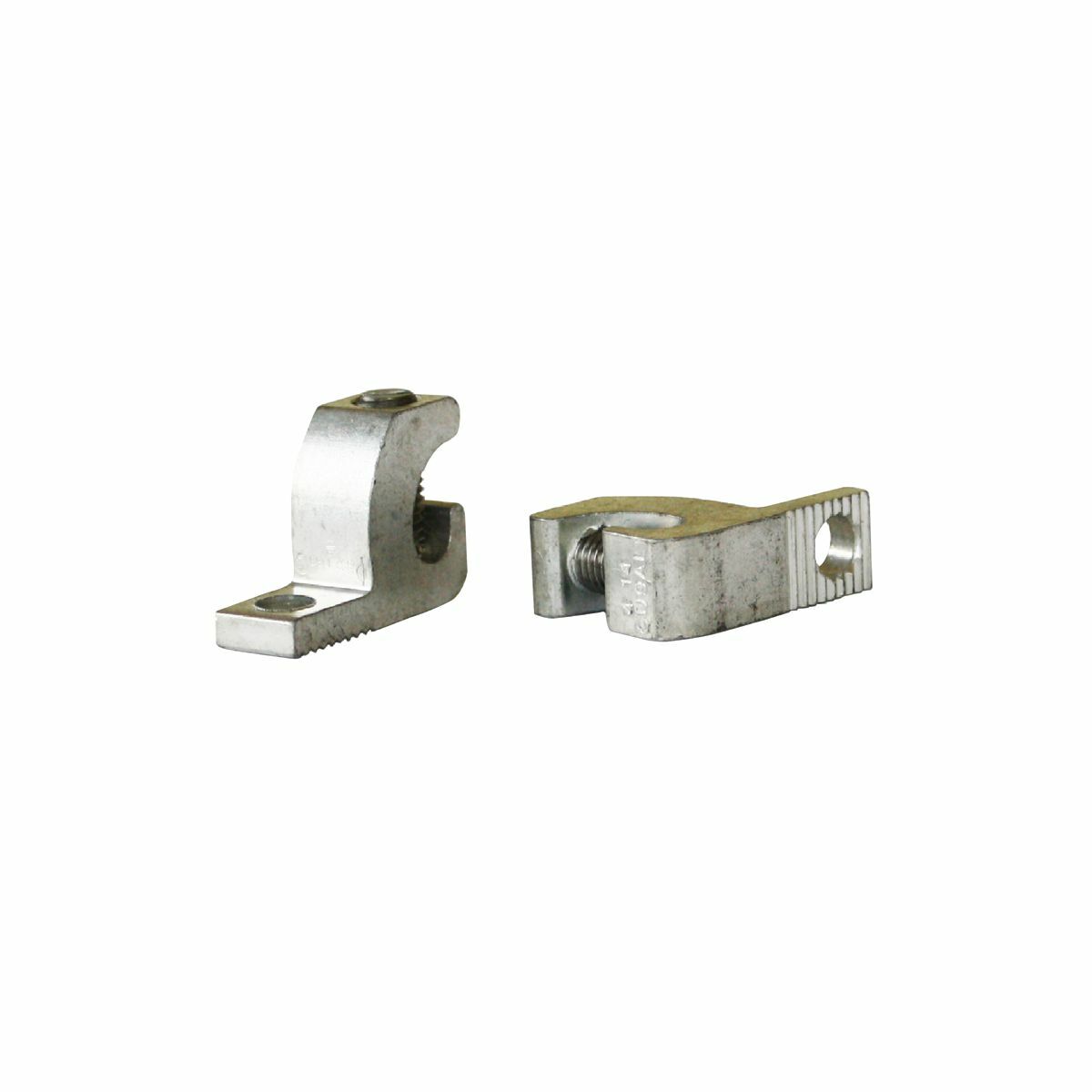

BGBL4 Lay-In Mechanical Terminal Lug, 14 to 4 AWG Solid/Stranded Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BGBL4
- UPC:
- 781810124857
- Item #:
- 20653
BGBL4 Lay-In Mechanical Terminal Lug, 14 to 4 AWG Solid/Stranded Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
- MFR #:
- BGBL4
- UPC:
- 781810124857
- Item #:
- 20653
Manuals & Documentation
| Catalog Number | BGBL4 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications |
| Material | Aluminum |
| Special Features | Features: The Lay-In QIKLUG, Type BGBL Is Manufactured From High Strength 6061-T6 Aluminum, UL486B Listed, AL9CU Rated, For Copper And Aluminum Conductor Combinations Up To 90 Degrees C, 600 Volt Applications, UL Recognized For Grounding And Bonding, Ensures Reliability, Electro-Tin Plated, Provides Low Contact Resistance, Lay-In Feature, Eases Installation, Dimension D: 0.62 IN, Dimension K: 0.22 IN, Stud/bolt Hole Size: 0.22 IN, Dimension T: 0.13 IN, Dimension E: 0.48 IN, Dimension N: 0.2 IN, Tongue Width: 0.39 IN, Set Screw Type: Slot, Height: 0.79 IN, Installation Torque: Yes, Length: 1.1 IN |
| Standard | UL 486A-B |
| UPC | 781810124857 |
| GTIN | 00781810124857 |
| Item Type | BGBL, Lay-In |
| Temperature Rating | 194 |
| Cross Reference Products | GBL-4, GLA-4, LL414 |
