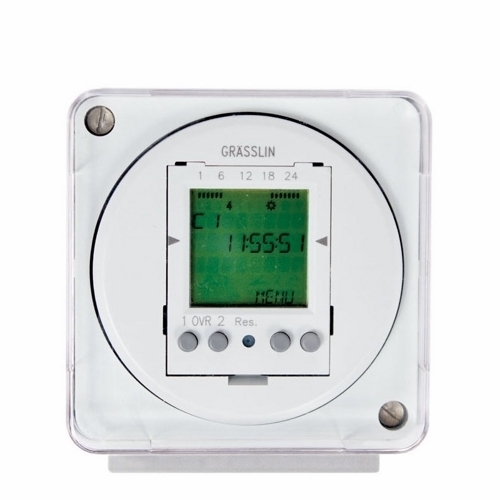

FM2D50-120 Grasslin Digital Electronic Timer Switch, 24 hr/7 Day Setting, 120 V AC, 1 hp, 1CO 1 Form C 2SPDT Contact, 1 Pole
- MFR:
- Intermatic
- MFR #:
- FM2D50-120
- UPC:
- 078275116290
- Item #:
- 205359
FM2D50-120 Grasslin Digital Electronic Timer Switch, 24 hr/7 Day Setting, 120 V AC, 1 hp, 1CO 1 Form C 2SPDT Contact, 1 Pole
- MFR #:
- FM2D50-120
- UPC:
- 078275116290
- Item #:
- 205359
Manuals & Documentation
| Catalog Number | FM2D50-120 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Germany |
| Made in USA | No |
| Action | 2 x SPDT |
| Application | Pumps, Fans, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural |
| Connection | Screw Terminal |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 16 AMP @ 277 VAC (Resistive), 12 AMP @ 120 VAC (Ballast), 8 AMP @ 240 VAC (Ballast) |
| Mounting | Din Rail |
| Number of Poles | 1 |
| Special Features | Features: Auto Daylight Saving Time (DST), 50 Setpoint Programs, 2 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Load Switch Indication, Battery Backup, Large LCD, Clear Dust Cover, 1 Year Warranty, Battery Backup with 3-Year Carryover |
| Standard | cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed |
| UPC | 078275116290 |
| GTIN | 00078275116290 |
| Item Type | 2 Channel Electronic |
| Size | 2.83 HEIGHT X 2.83 WIDTH X 2.28 DEPTH IN, 72 HEIGHT X 72 WIDTH X 58 DEPTH MM |
| Operating Temperature | -13 to +131 DEG F, -25 to +55 DEG C |
| Timing Range | 1 MIN - 24 HR/7 DAYS |
| Voltage Rating | 120 |
| Wattage | 1000 |
