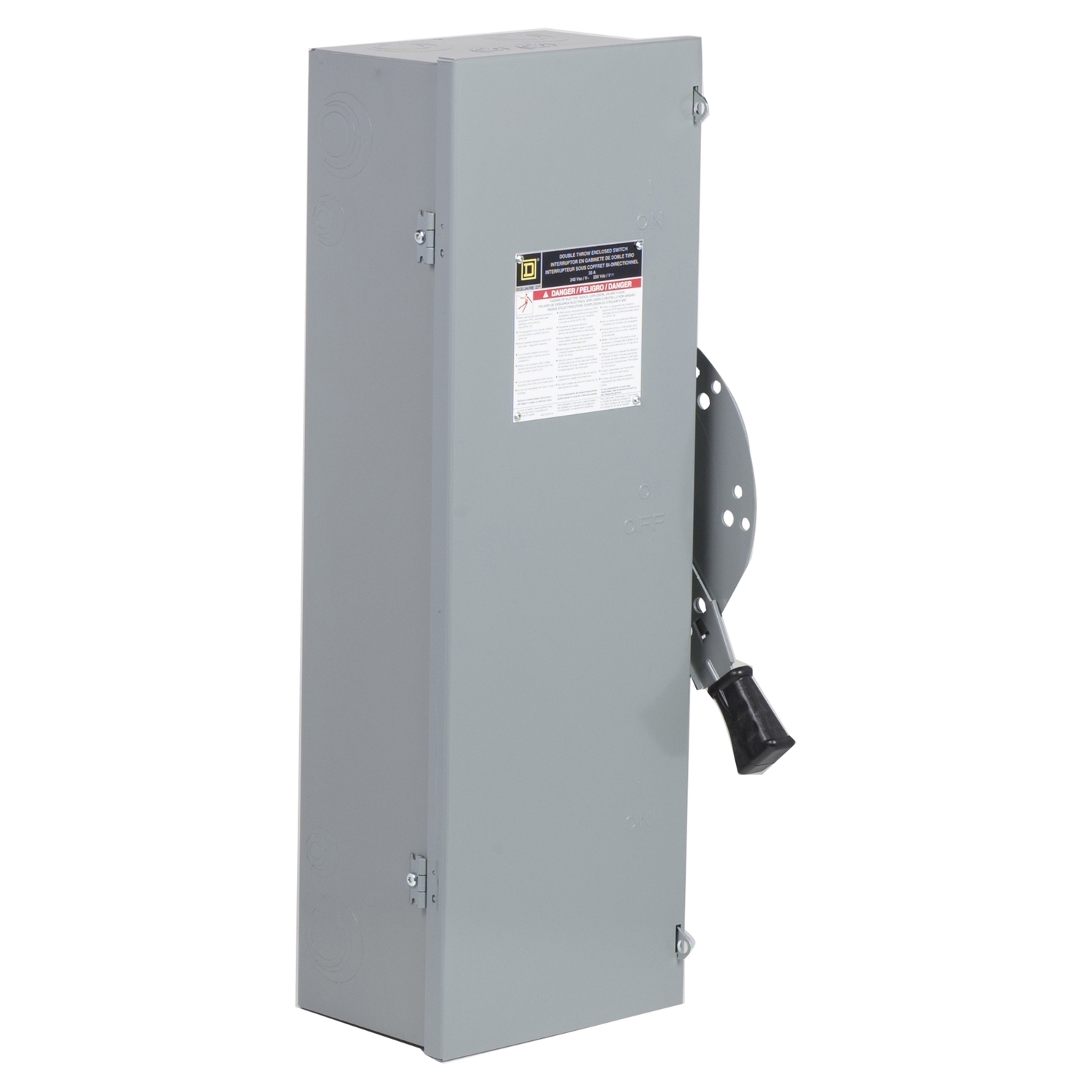

Safety switch, double throw, non fusible, 30 A, 240 V, 4 poles, NEMA 1, fuse class T4
- MFR:
- Schneider Electric
- MFR #:
- 92451
- UPC:
- 785901454762
- Item #:
- 203002
Safety switch, double throw, non fusible, 30 A, 240 V, 4 poles, NEMA 1, fuse class T4
- MFR #:
- 92451
- UPC:
- 785901454762
- Item #:
- 203002
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 4 wire configuration with 4 poles. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Manuals & Documentation
| Catalog Number | 92451 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Fuse Type | H or K |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=362895&lang=en-us |
| UPC | 785901454762 |
| GTIN | 00785901454762 |
| Item Type | Non-fusible disconnect;Double Throw Safety Switch |
| Width | 11.75 |
| Width UOM | Inch |
| Height | 10.0 |
| Height UOM | Inch |
| Depth | 4.75 IN |
