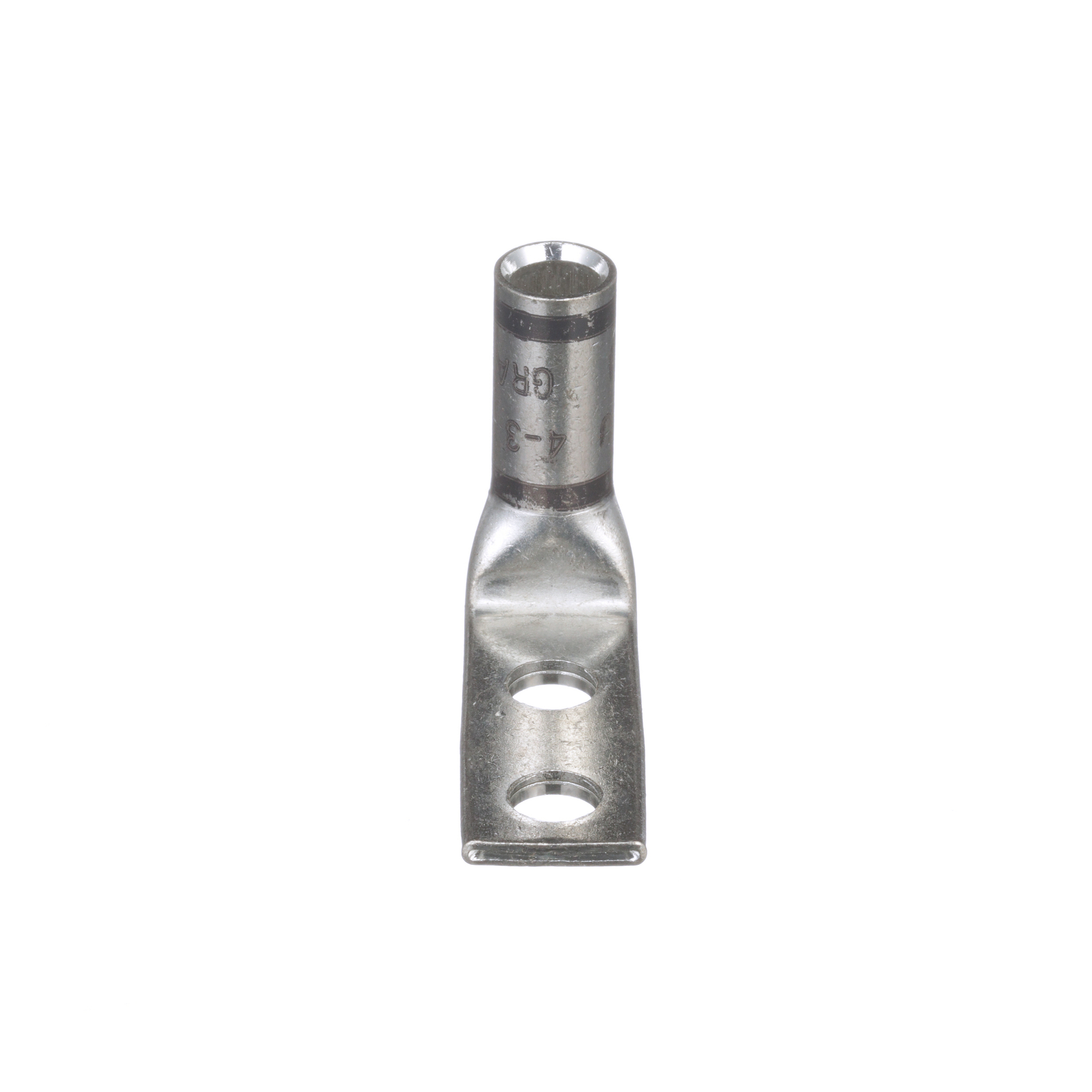

LCD4-14AF-L Pan-Lug LCD 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.826 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCD4-14AF-L
- UPC:
- 074983567720
- Item #:
- 202780
LCD4-14AF-L Pan-Lug LCD 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.826 in Stud, Tin Plated Copper
- MFR #:
- LCD4-14AF-L
- UPC:
- 074983567720
- Item #:
- 202780
The LCD4-14AF-L Tin-Plated Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plated material helps to inhibit corrosion. UL Listed and CSA Certified up to 35kV and temperature rated to 90C.
Manuals & Documentation
| Catalog Number | LCD4-14AF-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Gray |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983567720 |
| GTIN | 00074983567720 |
| Item Type | Compression Lug |
| Size | #4 — #3 AWG Code STR #2 AWG Code SOL |
| Stud Size | 1/4 IN |
