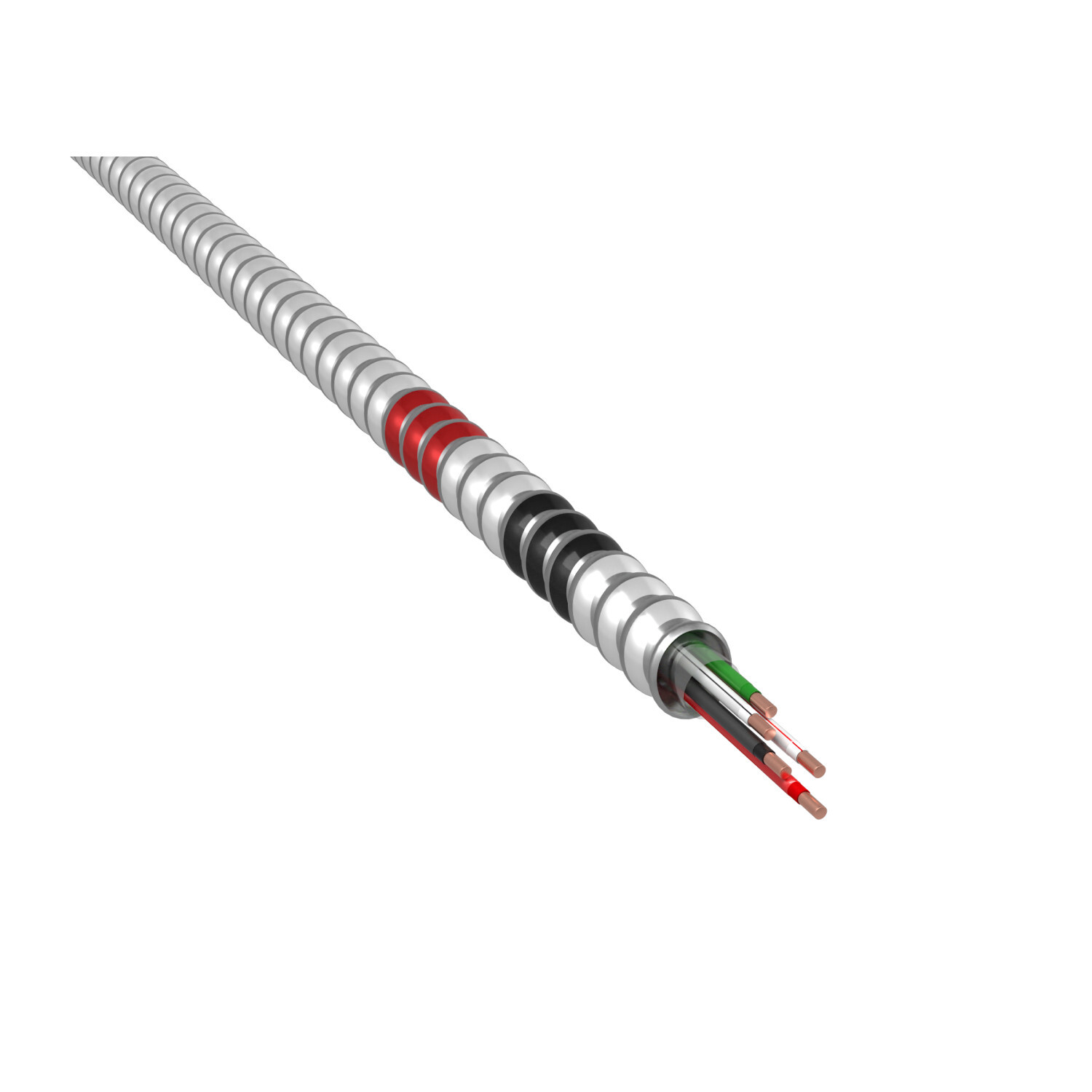

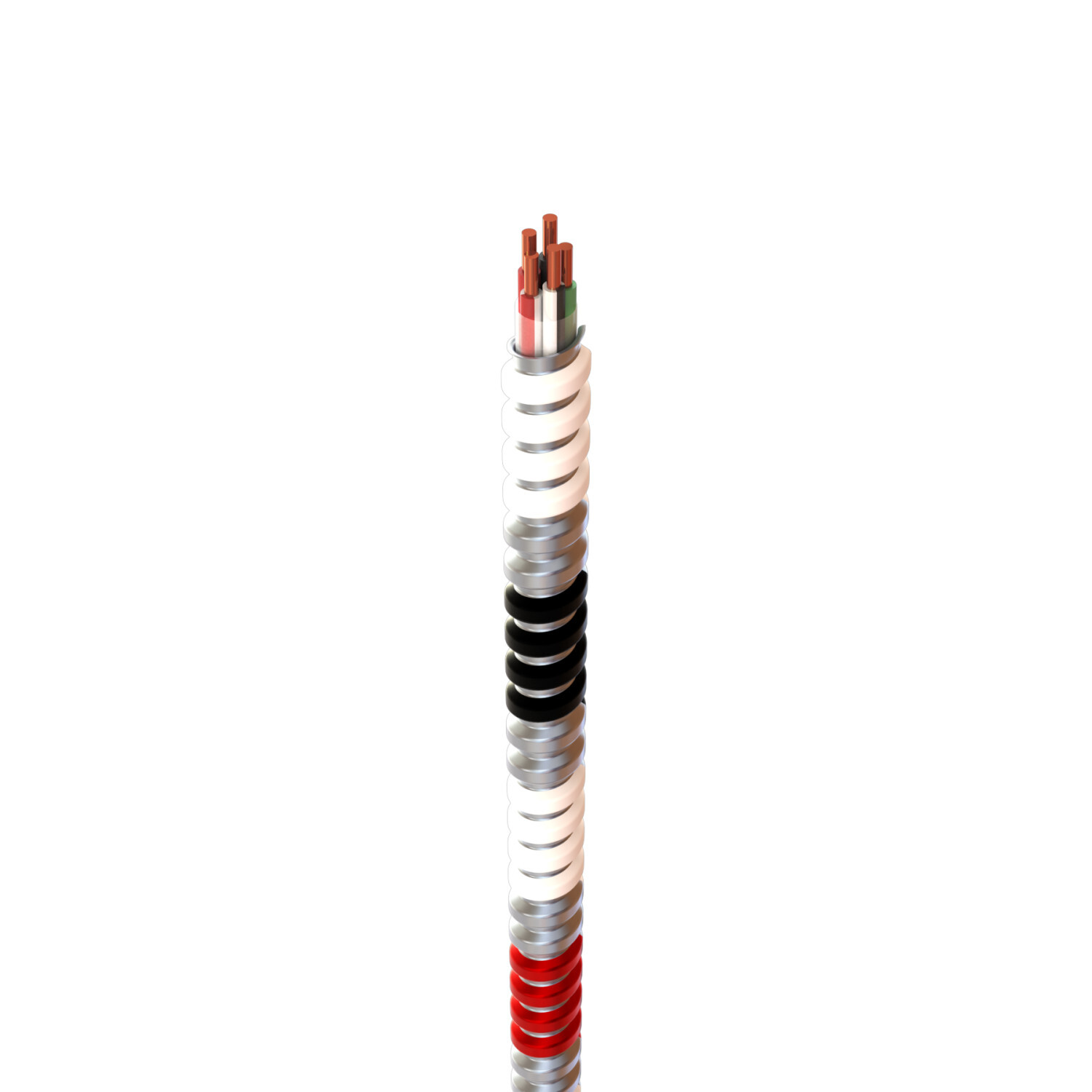

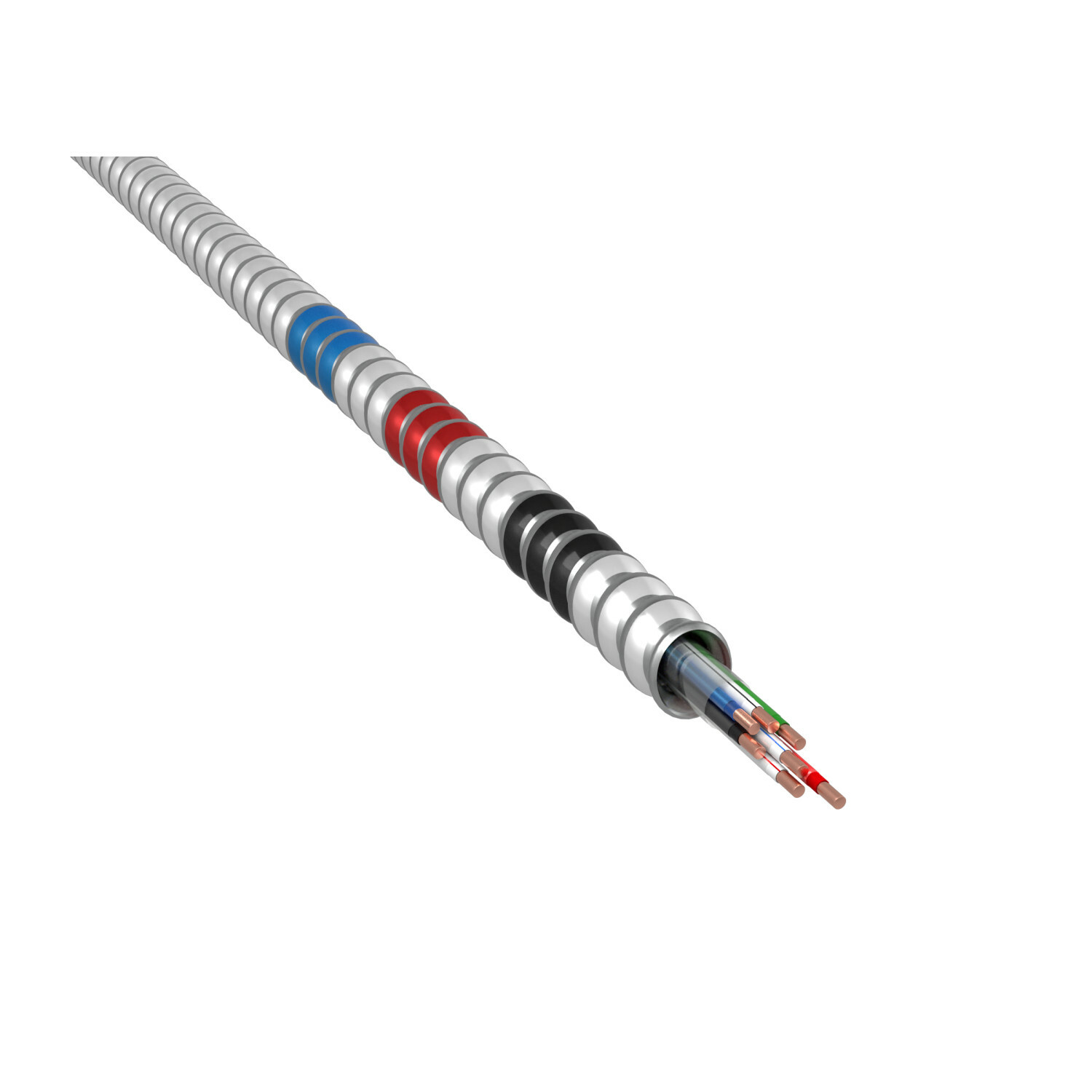

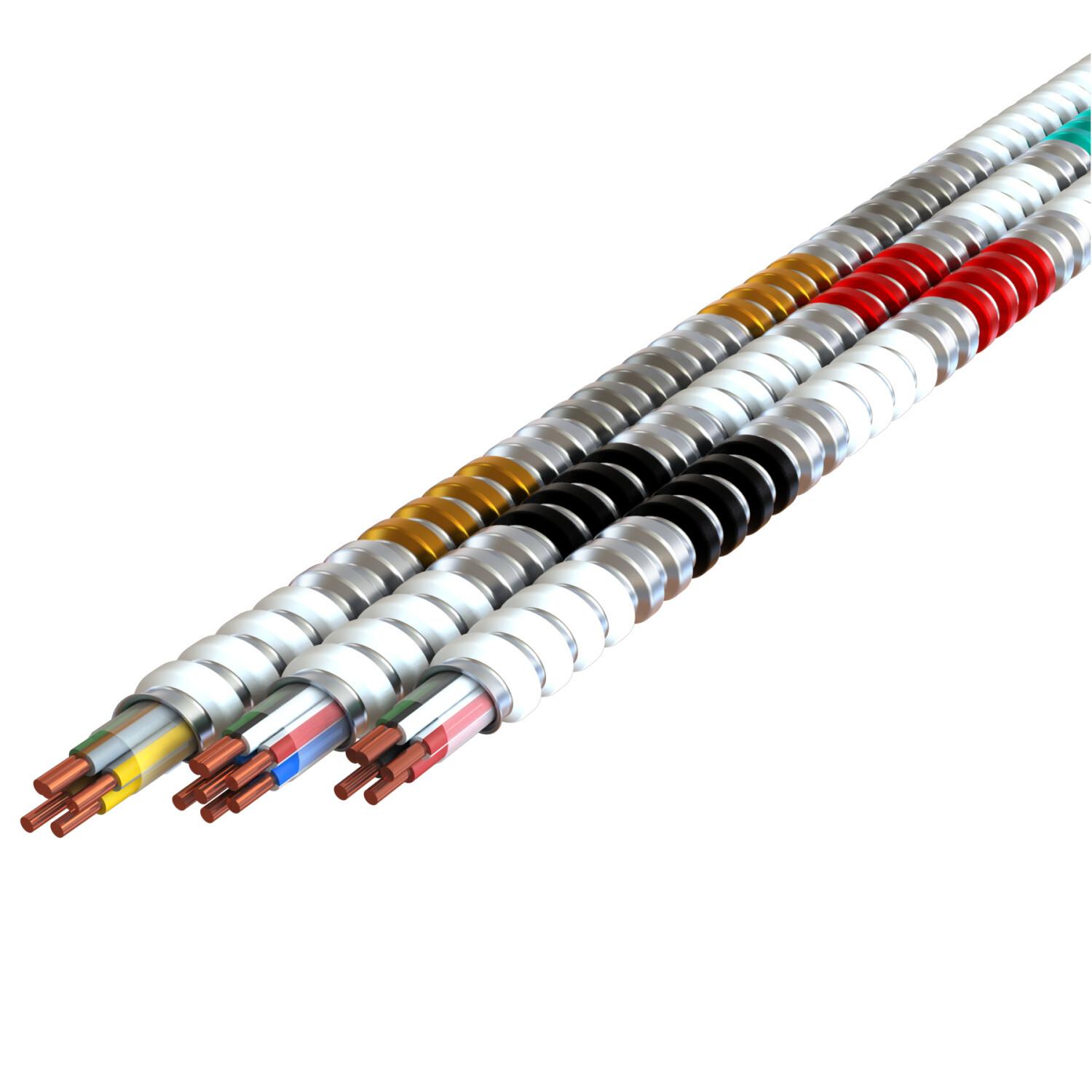

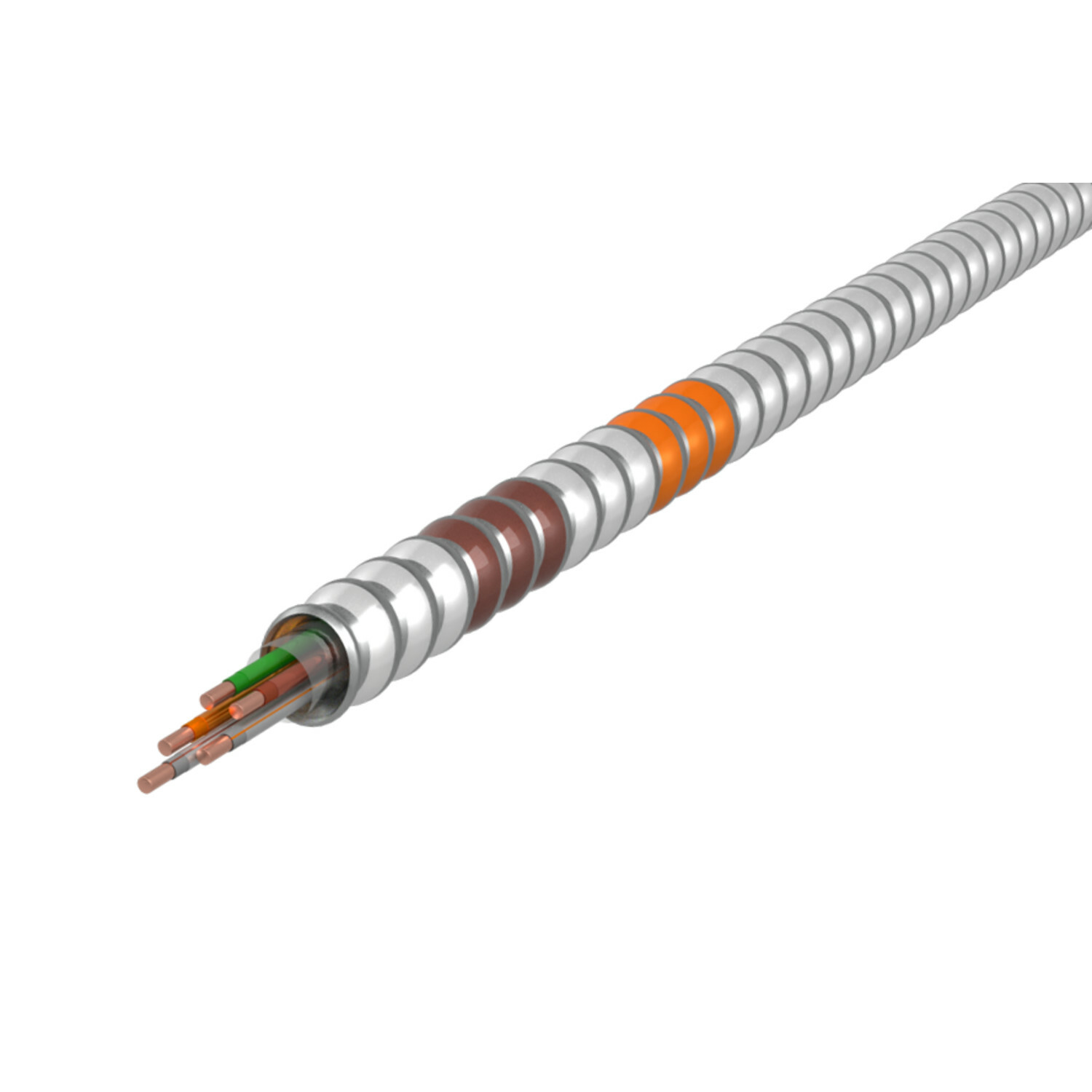

10-3/10-3/10-1 BK RD BE 3WE GN MC Plus, White Interlocked Galvanized Steel Armor with phase ID, 1000' Reel, Type MC - Neutral Per Phase
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 3908-60-00
- UPC:
- 077680259776
- Item #:
- 202559
10-3/10-3/10-1 BK RD BE 3WE GN MC Plus, White Interlocked Galvanized Steel Armor with phase ID, 1000' Reel, Type MC - Neutral Per Phase
- MFR #:
- 3908-60-00
- UPC:
- 077680259776
- Item #:
- 202559
Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.
Manuals & Documentation
| Catalog Number | 3908-60-00 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Sub Brand | MC Plus |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Galvanized Steel Strip |
| Bend Radius | 10.65 |
| Color | White |
| Conductor Material | Copper |
| Conductor Size | 10 AWG |
| Finish | White Paint |
| Material | Galvanized Steel |
| Number of Conductors | 7 |
| Standard | UL 83, 1479, 1569, 1581, 2556, File Reference E80042 NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645Federal Specification A-A–59544 (formerly J-C–30B) Meets all applicable OSHA and HUD Requirements UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141 |
| UPC | 077680259776 |
| GTIN | 00077680259776 |
| Item Type | MC-Plus® Neutral Per Phase Steel Armored Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.4329 LB/FT |
| Inside Diameter | 0.51 IN |
| Outside Diameter | 0.71 IN |
| Temperature Rating | 194 |
| Trade Size | 10-6 |
| Voltage Rating | 600V |
