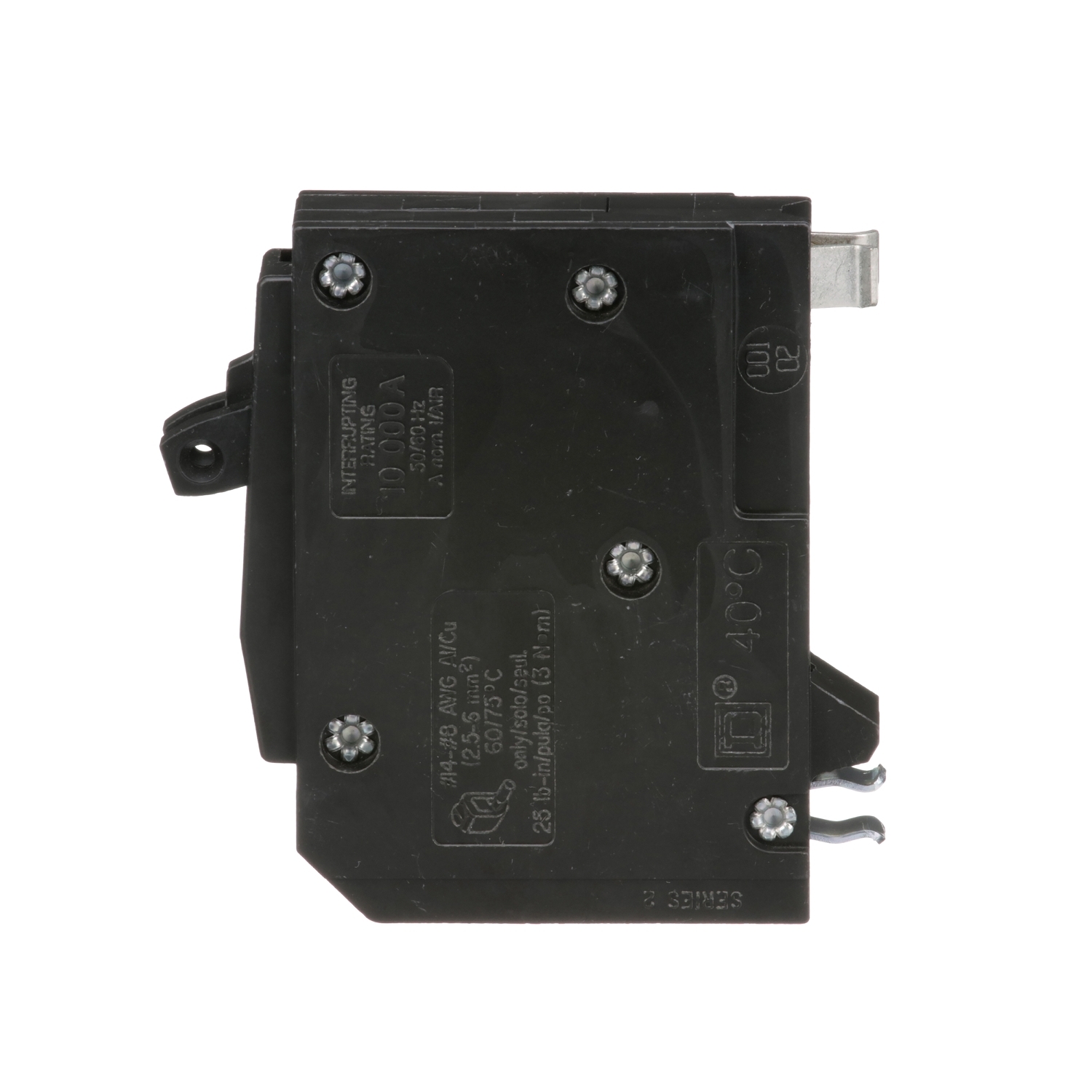

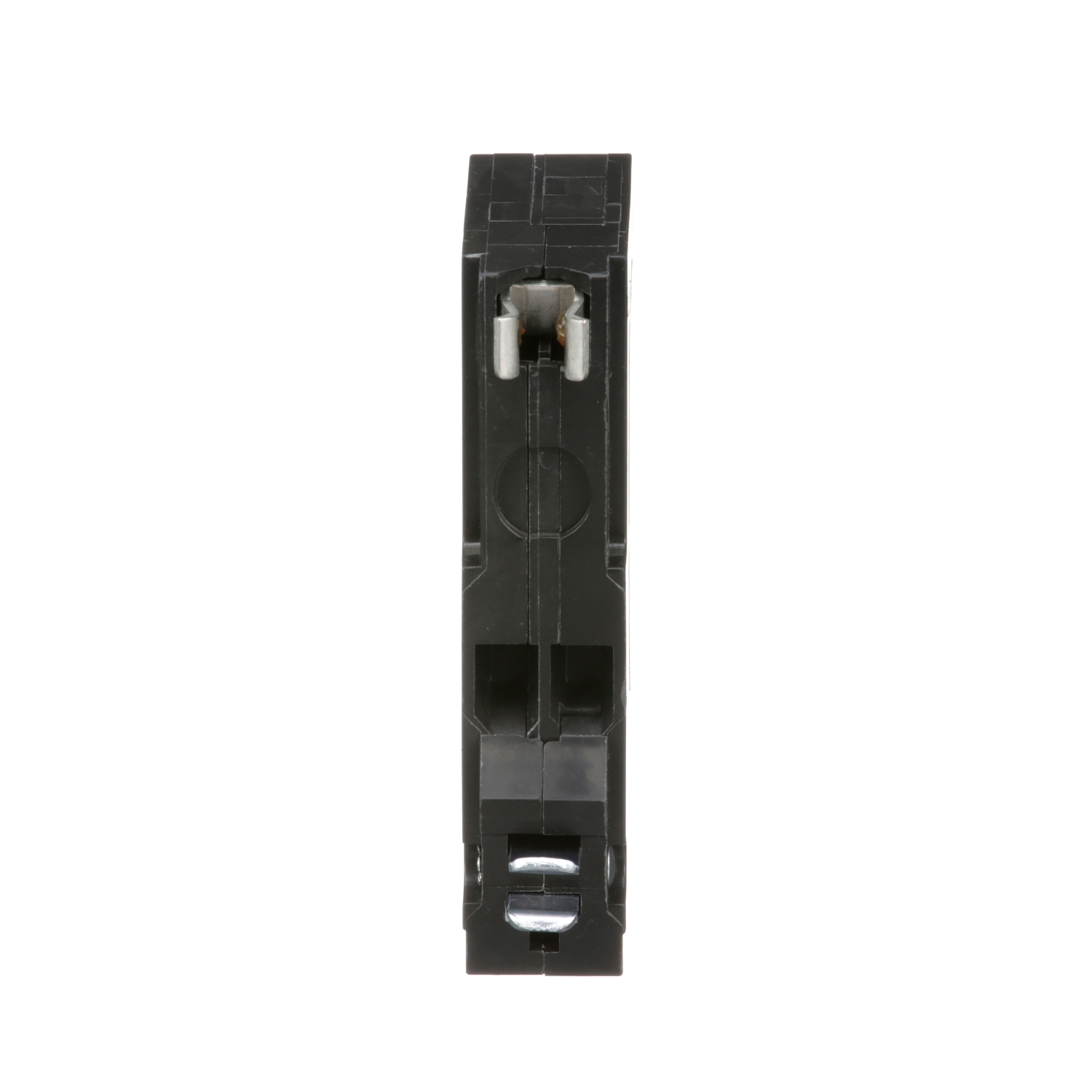

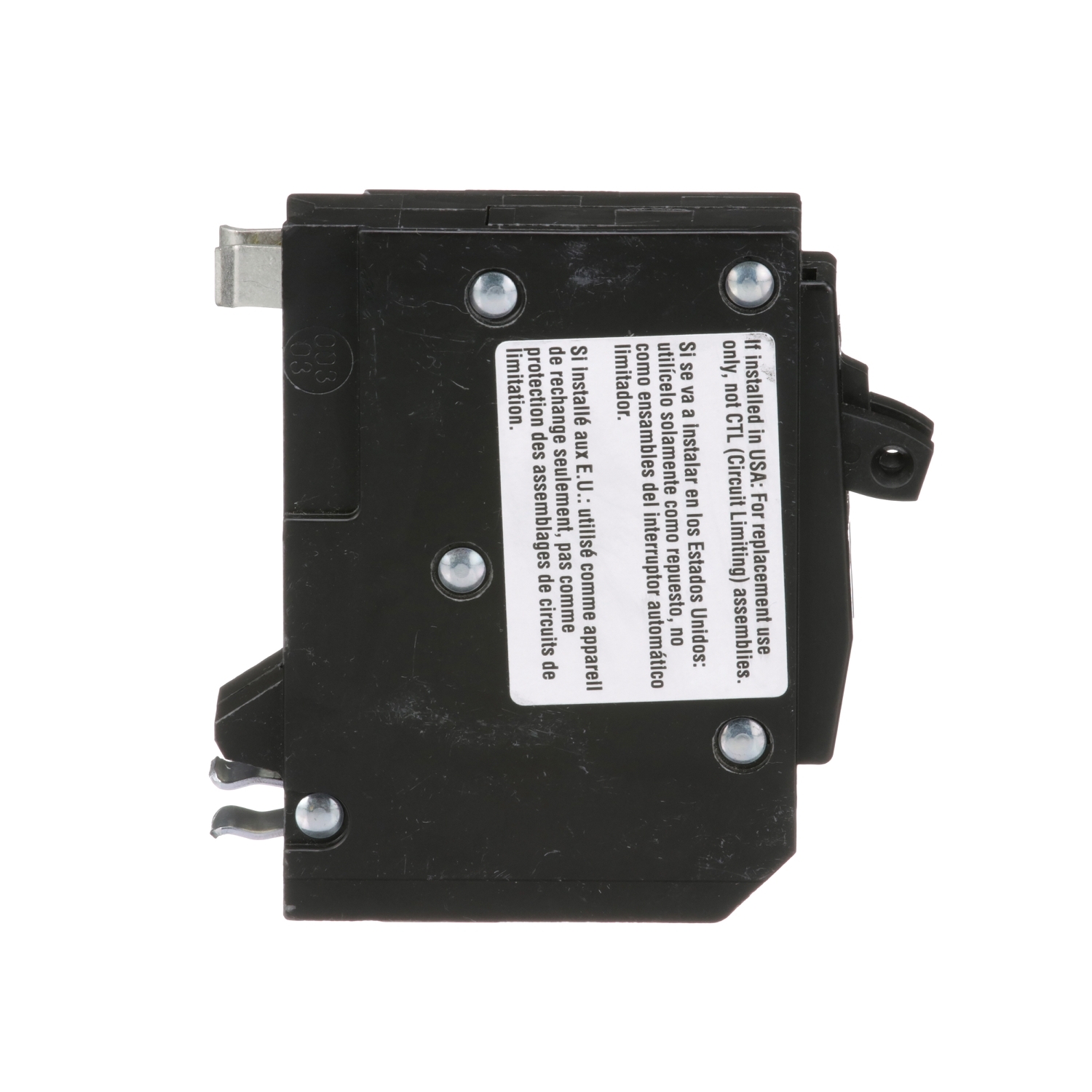

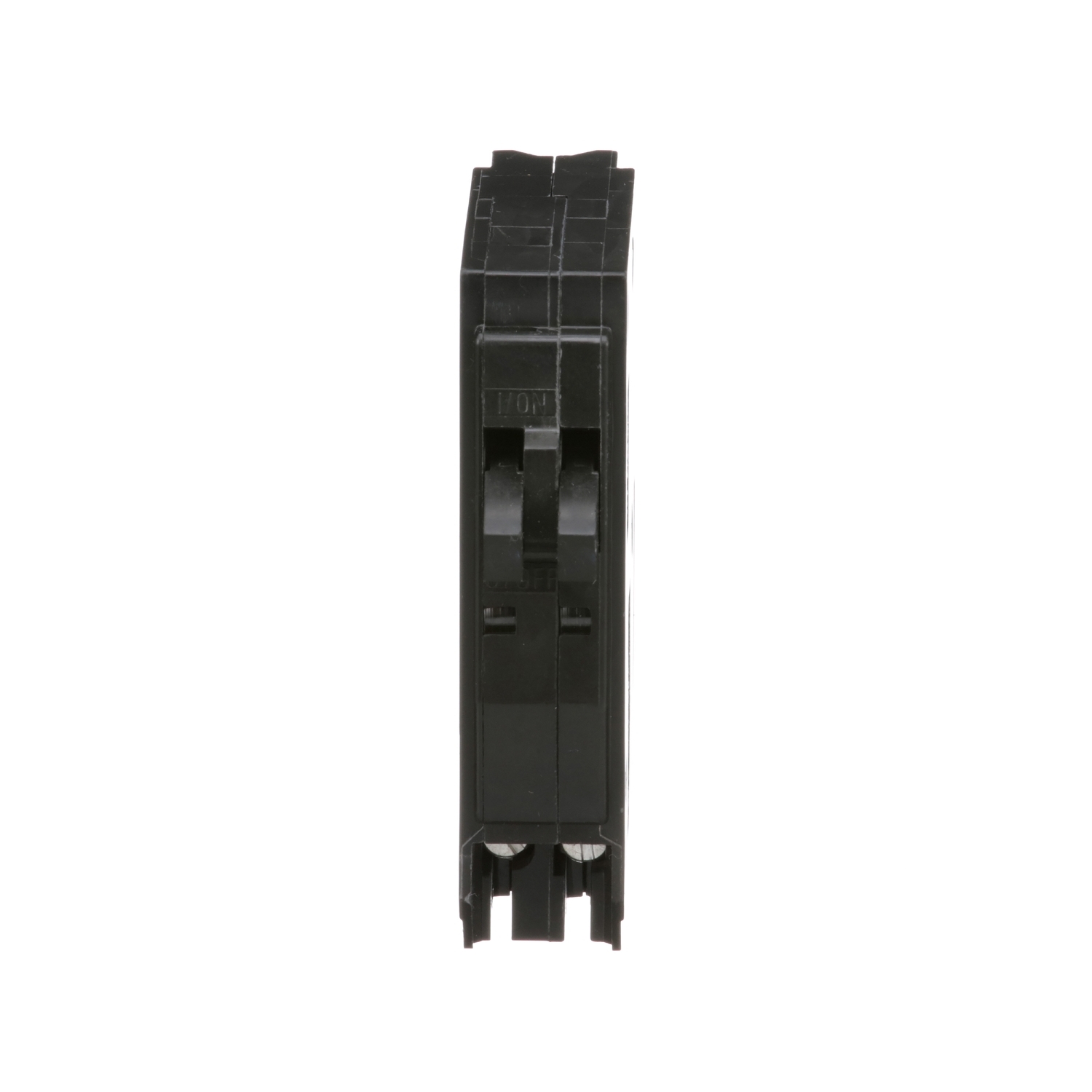

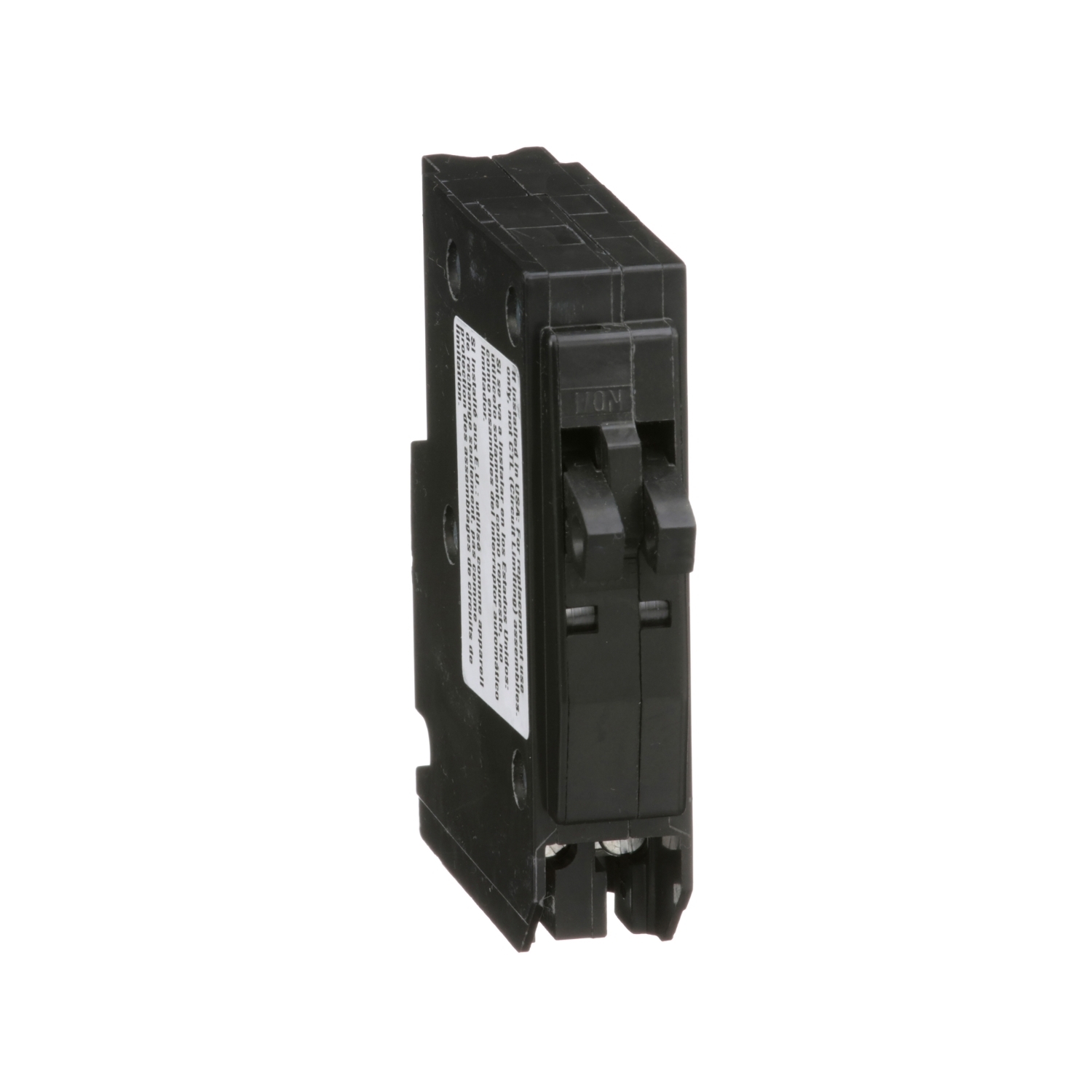

QO1530 Type QO Replacement Tandem Miniature Circuit Breaker, 120/240 V AC, 15 to 30 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
QO1530
UPC:
785901412847
Item #:
202330

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This QO tandem mini circuit breaker has 1 one pole at 15A and 1 one pole at 30A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.

Manuals & Documentation
Catalog Number QO1530
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398737&lang=en-us
UPC 785901412847
GTIN 00785901412847
