Intermatic

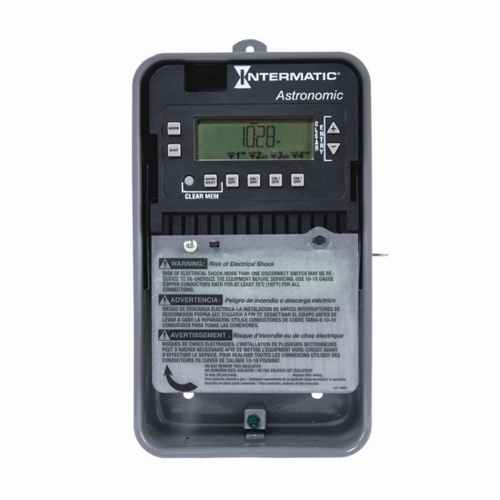

ET8415CR Astronomic Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 V AC, 1, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
ET8415CR
UPC:
078275125544
Item #:
201973

The ET8415CR 4-circuit 7-day Astronomic time switch features independent 7-day programming to provide flexibility for applications where load switching differs each day of the week. This time switch provides to-the-minute programming, 28 ON/28 OFF (56 events) which can be applied to any combination of circuits and days, 100-hour Supercap backup for power loss, and automatic daylight saving time corrections without the need of user interaction. This time switch is housed in a lockable type 3R enclosure to protect from vandalism and unauthorized tampering.

Manuals & Documentation
Catalog Number ET8415CR
Manufacturer Intermatic
Brand Intermatic
Country of Origin Mexico
Made in USA No
Action 4 x SPST
Amperage Rating 30
Application Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting
Connection Wire Lead
Contact Configuration 1 NO
Contact Rating 30 AMP @ 120/240 VAC (Resistive), 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC (Ballast)
Enclosure Type 3R Steel
Mounting Wall
Number of Poles 1
Special Features Features: Automatically Adjusts Voltages between 120 and 277 VAC, 50/60Hz, 56 ON/OFF Events Per Week, 8 Astronomic Events, 100+ Hour Supercapacitor Maintains Time and Date After Power Loss, Temporary Override or Permanent Manual Override, Automatic Daylight Saving Time adjustment, 1 Year Warranty
Standard cCSAus Certified, California TITLE 24 Compliant, Title CA 20 Listed
UPC 078275125544
GTIN 00078275125544
Item Type Astronomic Electronic
Operating Temperature -40 to +155 DEG F, -40 to +68 DEG C
Timing Range 1 MIN - 6 DAYS 23 HR 59 MIN
Voltage Rating 120 - 277
