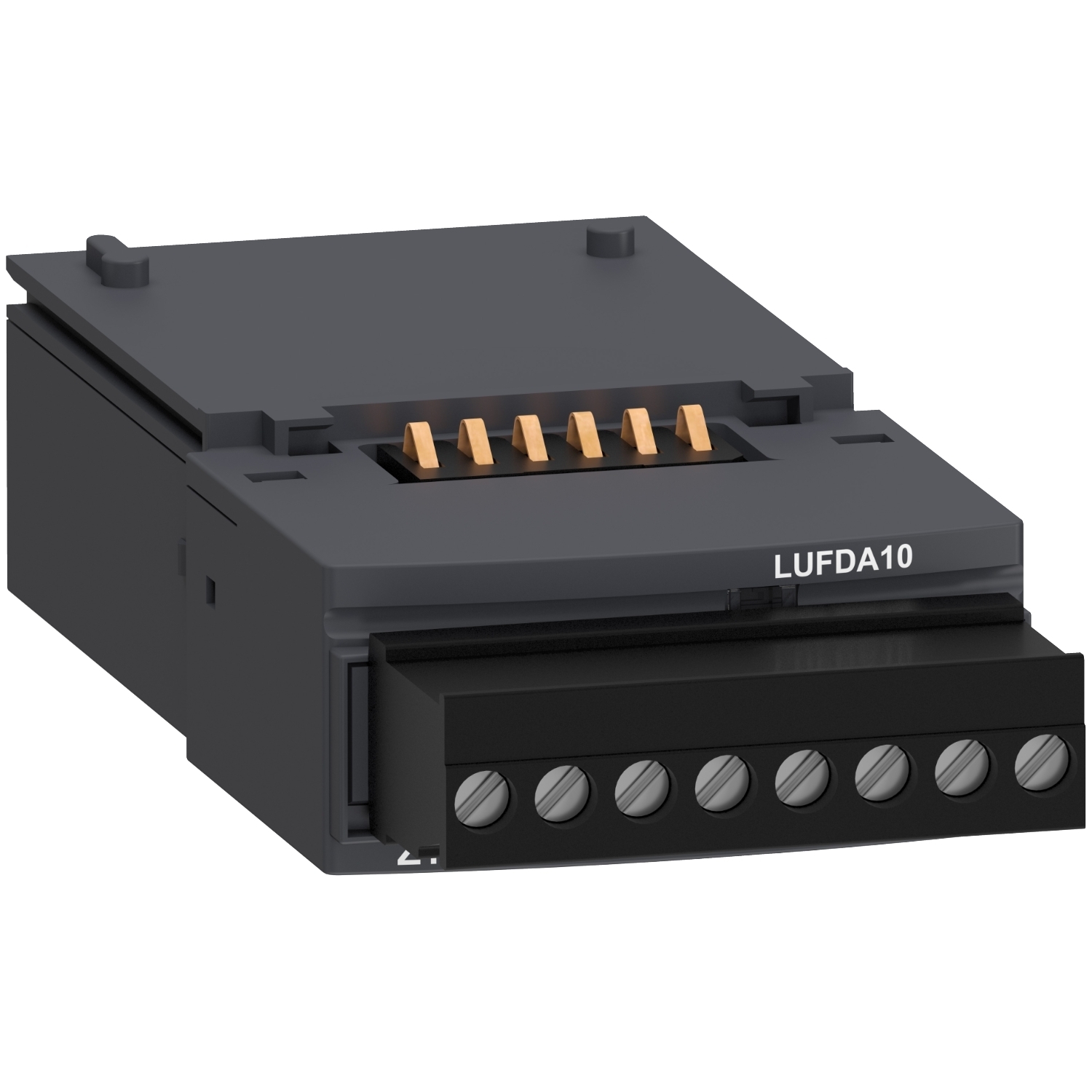

LUFDA10 Auxiliary Motor Starter Function Module, Thermal Overload Signaling Function, Auto/Remote Reset Inpu
- MFR:
- Schneider Electric
- MFR #:
- LUFDA10
- Item #:
- 201911
LUFDA10 Auxiliary Motor Starter Function Module, Thermal Overload Signaling Function, Auto/Remote Reset Inpu
- MFR #:
- LUFDA10
- Item #:
- 201911
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals & Documentation
| Catalog Number | LUFDA10 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640856&lang=en-us |
| GTIN | 03389110109849 |
