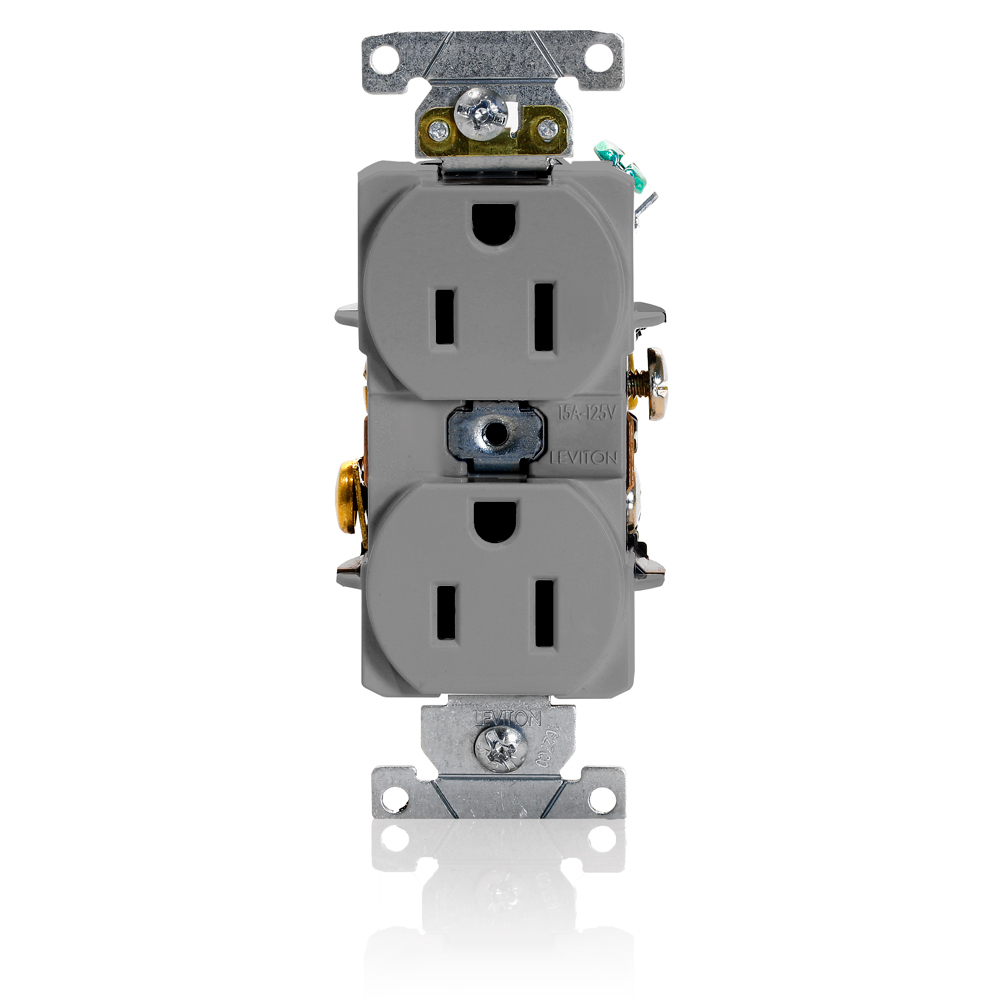

5262-GYS Heavy Duty Straight Blade Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Gray
- MFR:
- Leviton
- MFR #:
- 5262-GYS
- UPC:
- 078477141120
- Item #:
- 201737
5262-GYS Heavy Duty Straight Blade Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Gray
- MFR #:
- 5262-GYS
- UPC:
- 078477141120
- Item #:
- 201737
| Catalog Number | 5262-GYS |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | Gray |
| Connection | Back and Side Wired |
| Material | Thermoplastic |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| UPC | 078477141120 |
| GTIN | 00078477141120 |
| Item Type | Straight Blade;Duplex Outlet |
| Depth UOM | Inch |
| Size | 46 H x 1.53 W x 1.11 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 125 |
| Wire Size | 14-10 AWG |
