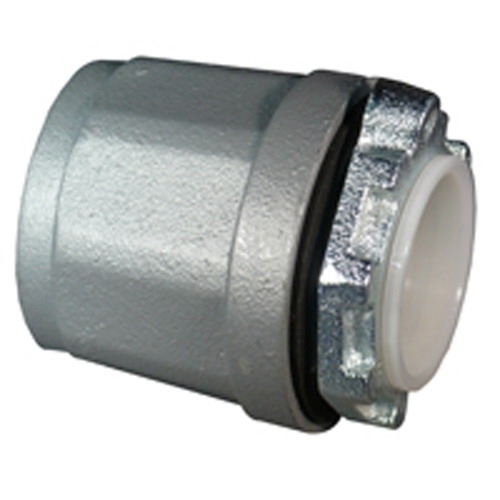

HUB-400 Straight Conduit Hub, 4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Triple Coated
- MFR:
- Appleton Electric
- MFR #:
- HUB-400
- UPC:
- 781381463003
- Item #:
- 201705
HUB-400 Straight Conduit Hub, 4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Triple Coated
- MFR #:
- HUB-400
- UPC:
- 781381463003
- Item #:
- 201705
Straight Insulated Throat Hub, Size: 4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed F
Manuals & Documentation
Features
- Patented hex-hub wedge adaptor fits nearly flush against inside walls of enclosures
- Single wrench installation, simple two-piece construction
- Protective flame-resistant insulated throat eliminates any need for end bushings
- Built-in recessed neoprene gasket
- Full, machined tapered threads
| Catalog Number | HUB-400 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Material | Malleable Iron |
| Special Features | Insulated throat form provides a more vibration resistant connection between threaded rigid conduit or IMC and enclosure; Provides threaded termination in sheet metal enclosures; Suitable for service entrance; General purpose fitting; Appleton's uni-seal rigid conduit hubs eliminate the need for welded hubs; efficiency of installation is built into the superior design; single wrench installation; Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures; Provides maximum wiring room; Simple two piece construction; Protective insulated throats, positive grounding and watertight sealing action; Flame resistant insulated throat eliminates need for end bushings; Flame resistant insulated throat eliminates need for end bushings; Built-in recessed gasket |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381463003 |
| GTIN | 00781381463003 |
| Item Type | Straight Insulated Throat Hub |
| Length | 13.0000 |
| Length UOM | Inch |
| Width | 6.0000 |
| Width UOM | Inch |
| Height | 2.0000 |
| Height UOM | Inch |
| Weight | 4.090 |
| Weight UOM | Pounds |
| Size | 4 |
