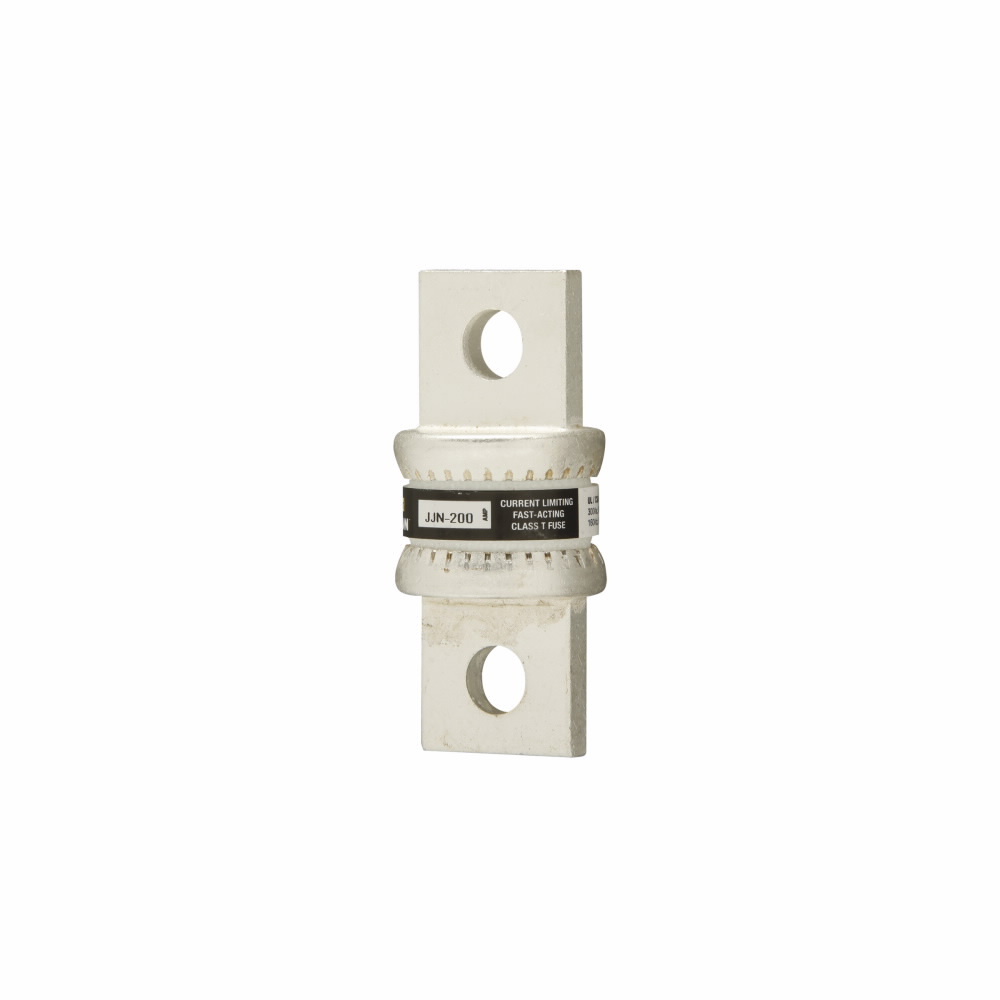

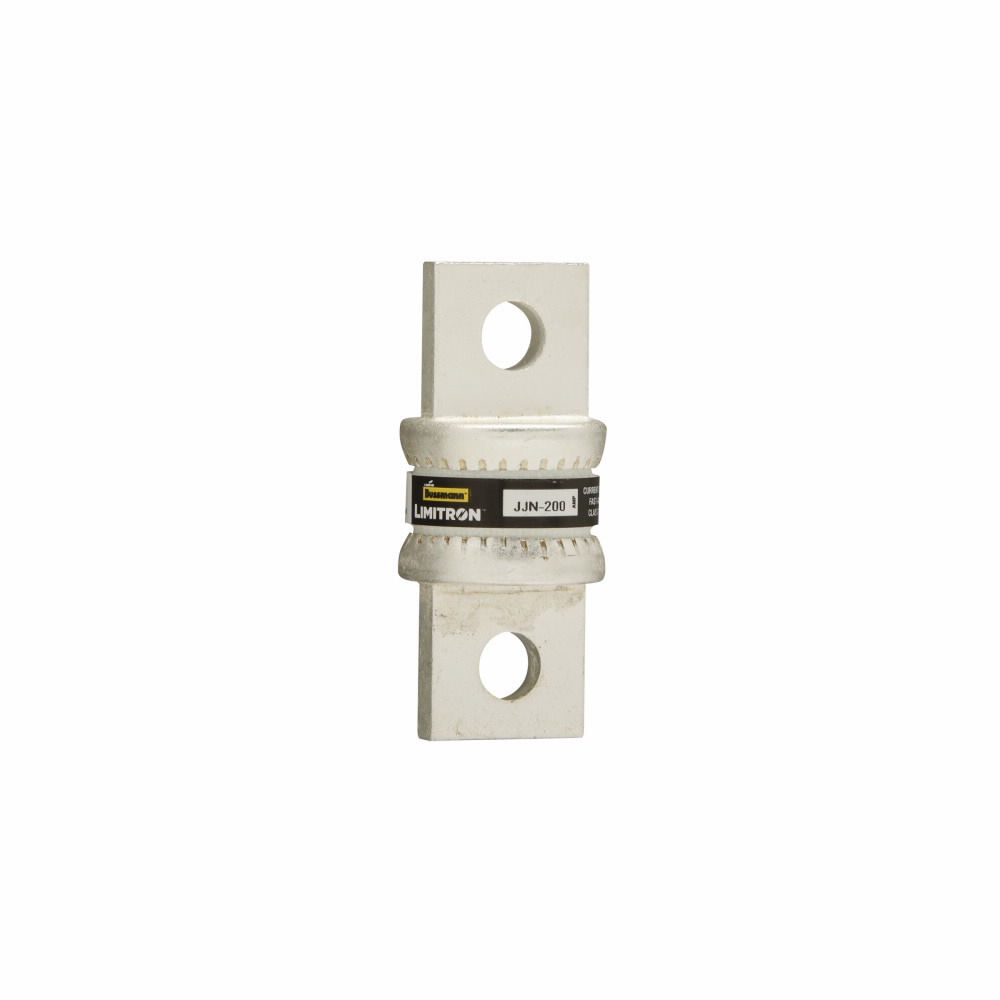

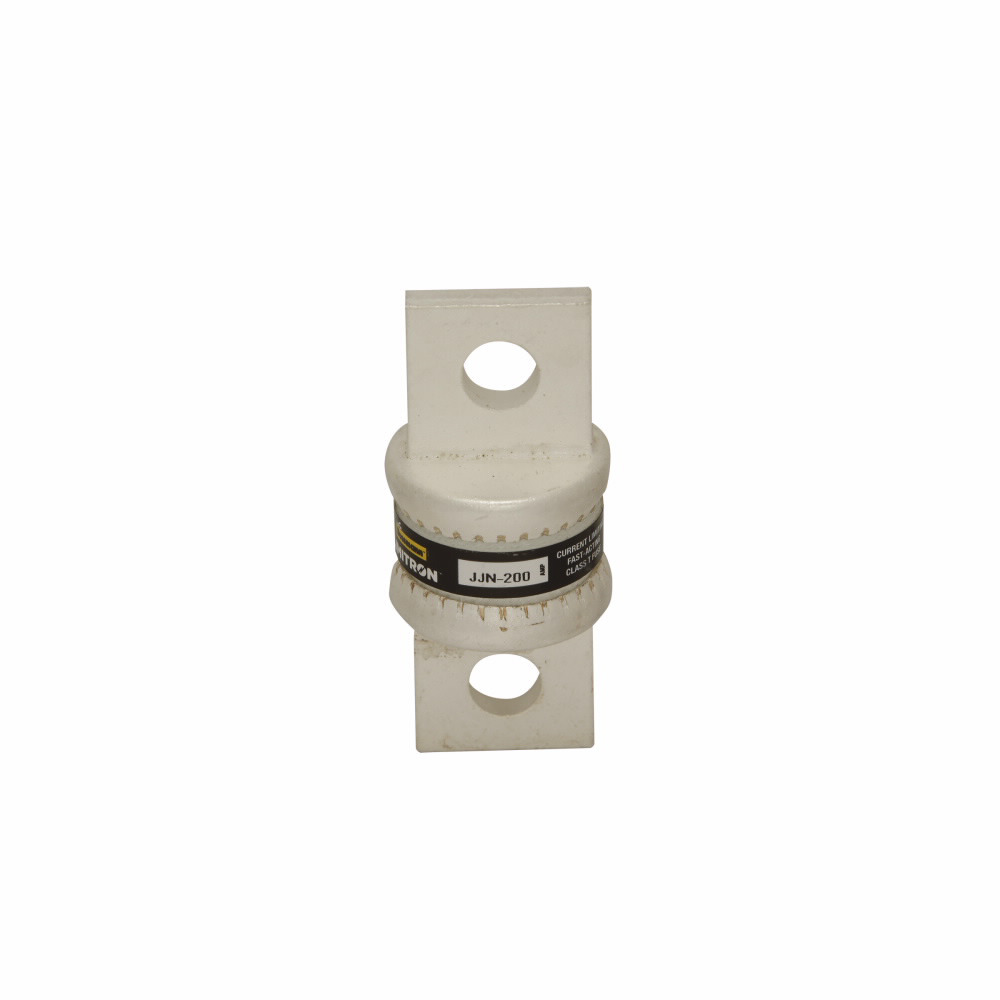

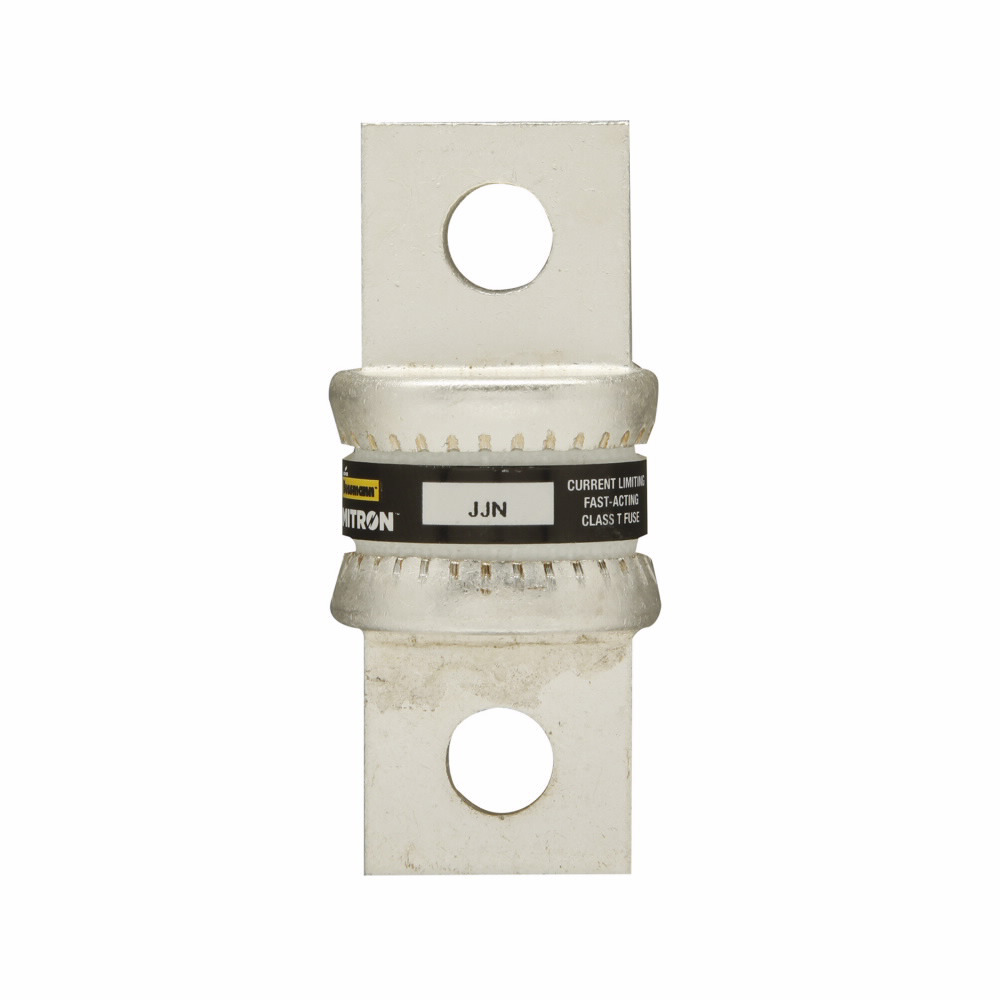

Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 200 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V,20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- JJN-200
- UPC:
- 051712627030
- Item #:
- 199580
Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 200 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V,20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc
- MFR #:
- JJN-200
- UPC:
- 051712627030
- Item #:
- 199580
Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for todays large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.
Manuals & Documentation
| Catalog Number | JJN-200 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Bolted blade end x bolted blade end |
| Interrupt Rating | 20 kAIC at 160 Vdc|200 kAIC at 300 Vac |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712627030 |
| GTIN | 00051712627030 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.88 In Diameter X 2.44 In Length |
| Voltage Rating | 300 Vac, 160 Vdc |
