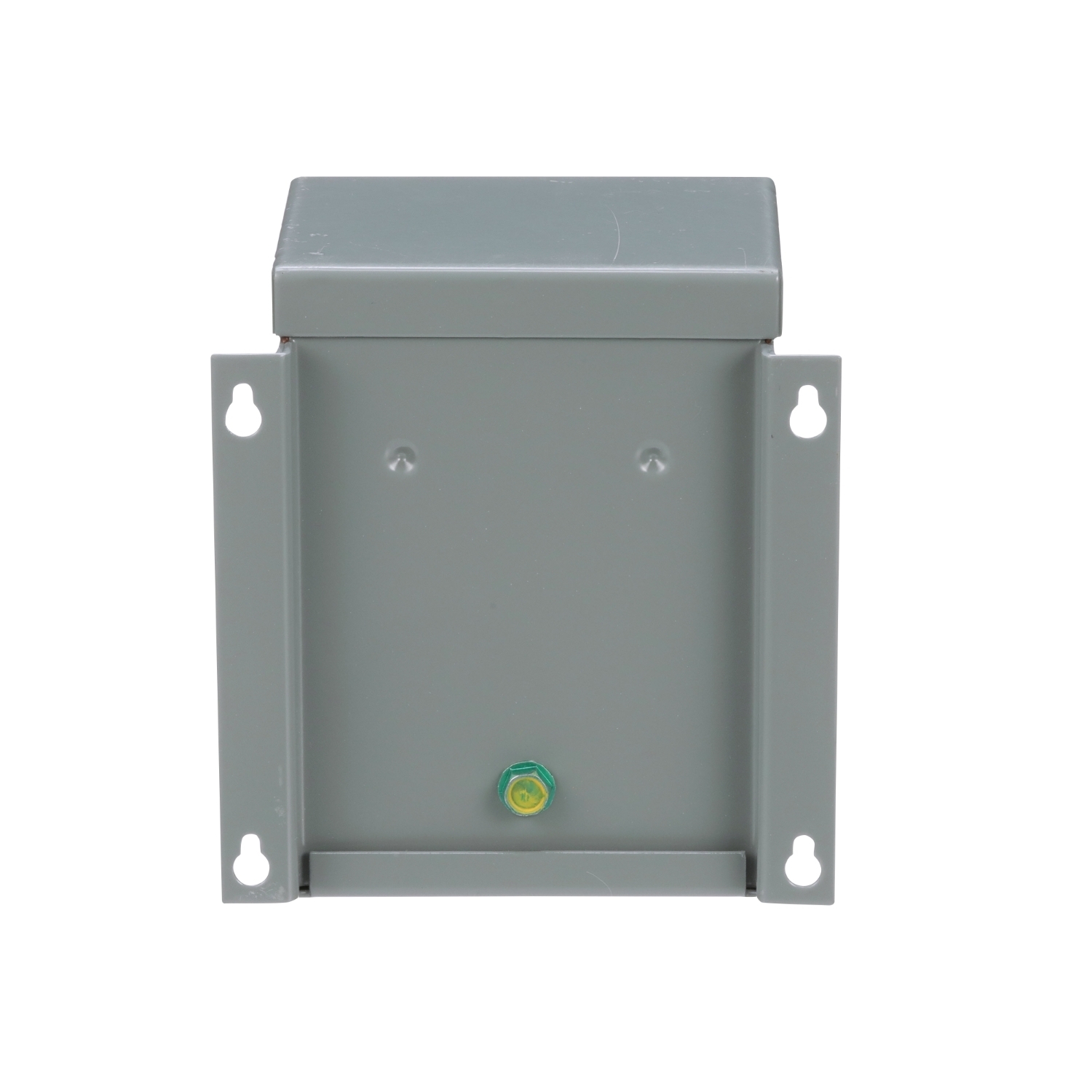

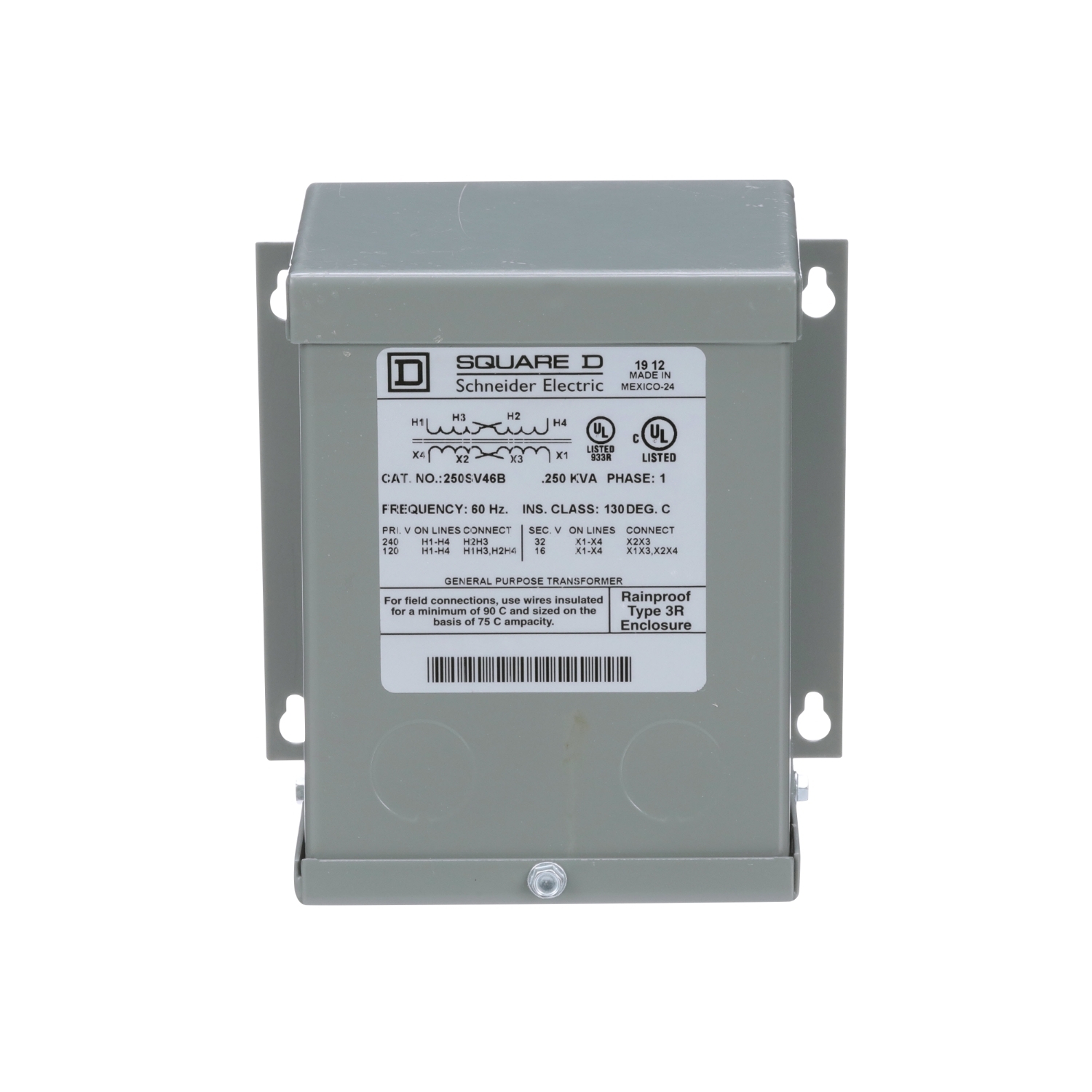

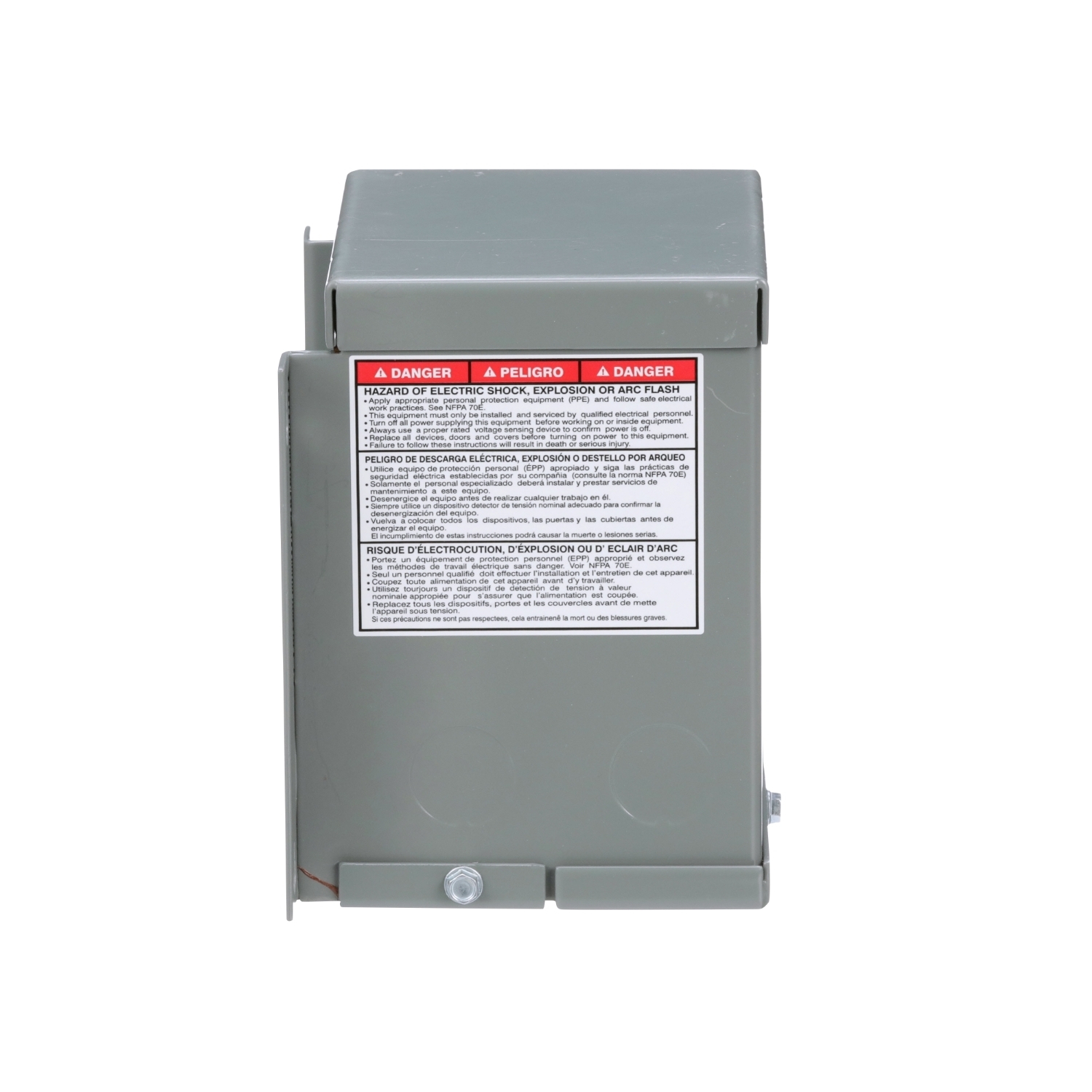

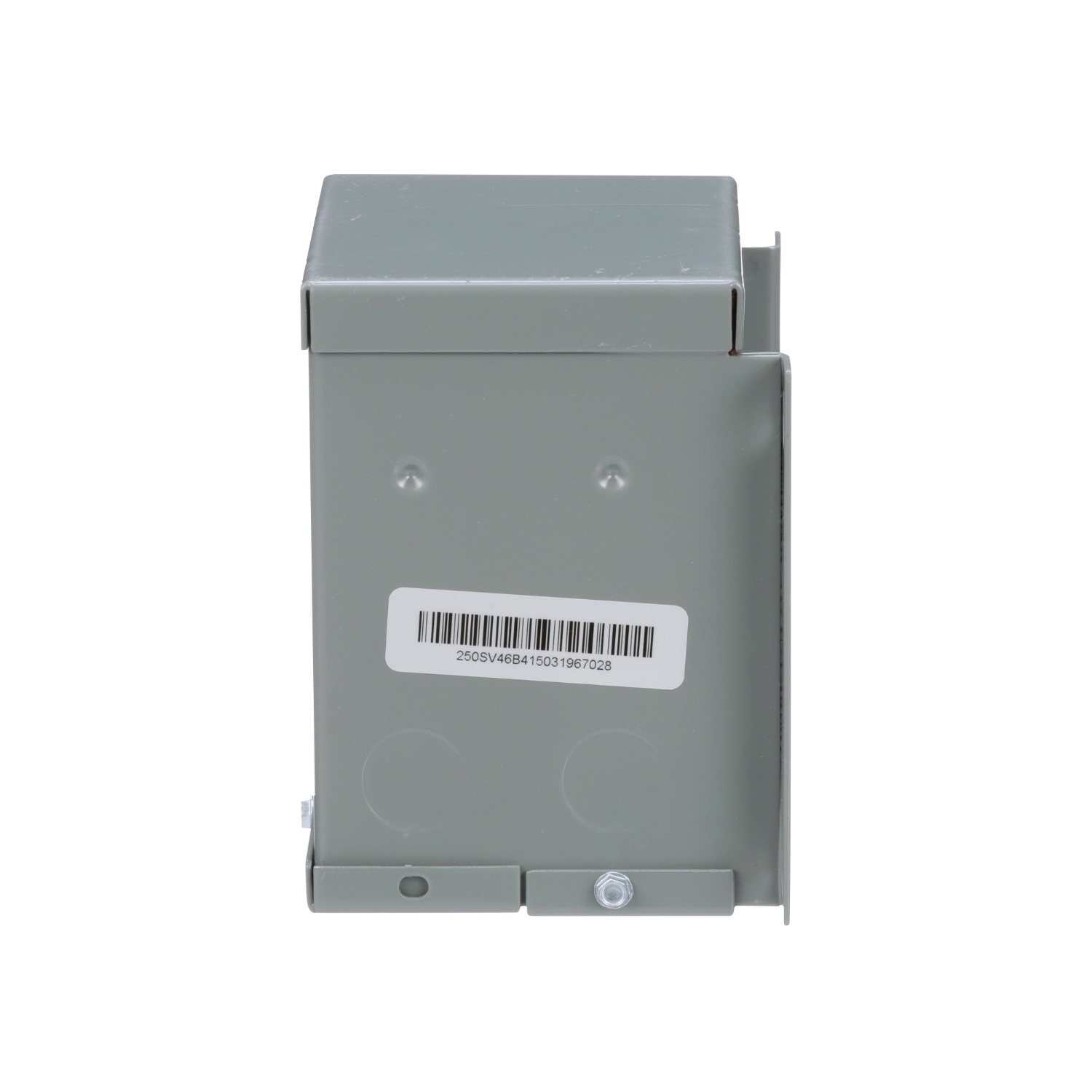

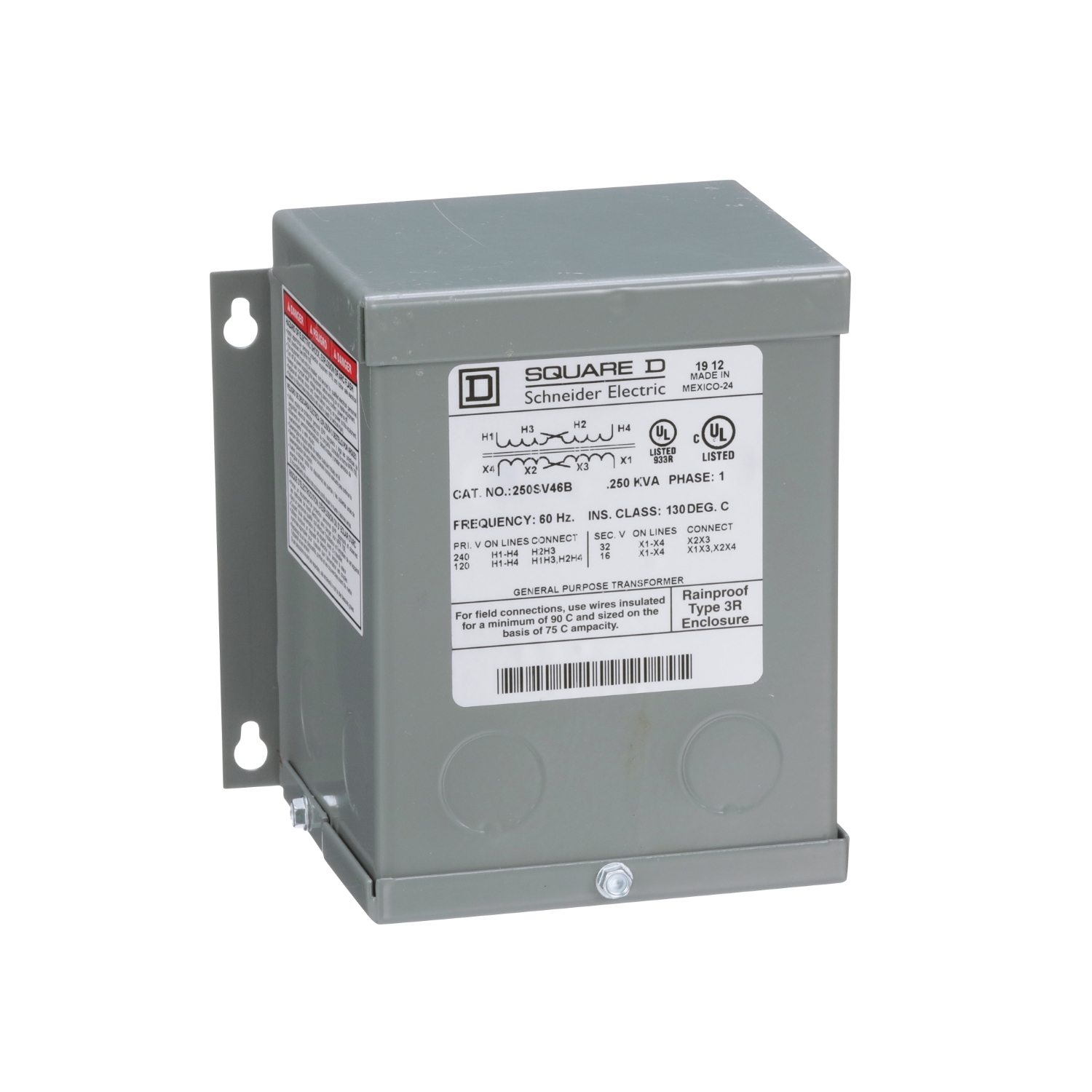

250SV46B Dry Buck Boost Transformer, 120/240 V AC Primary, 16/32 VAC Secondary, 0.25 kVA Power Rating, 60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 250SV46B
- UPC:
- 785901019893
- Item #:
- 199034
250SV46B Dry Buck Boost Transformer, 120/240 V AC Primary, 16/32 VAC Secondary, 0.25 kVA Power Rating, 60 Hz, 1 Phase
- MFR #:
- 250SV46B
- UPC:
- 785901019893
- Item #:
- 199034
A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 16/32V seco0ndary voltage. This trandformer has a rated power of 0.25KVA. This transformer has a temperature rise of 80 C. This product has a UL listed, cULus & CSA certifications.
Manuals & Documentation
| Catalog Number | 250SV46B |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Primary Voltage | 120 x 240 V |
| Secondary Voltage | 16/32 V |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455543&lang=en-us |
| UPC | 785901019893 |
| GTIN | 00785901019893 |
| Item Type | Buck and Boost Transformer |
