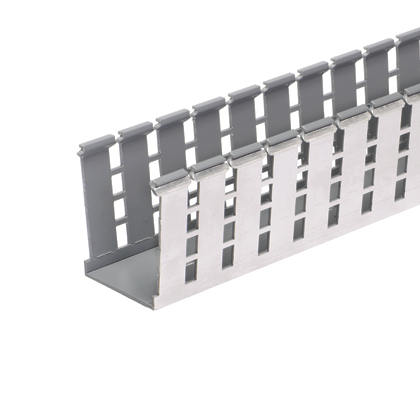

The G2X2LG6EMI PanelMax Shielded Lead-Free PVC/Aluminum Wide Slot Wiring Duct feature a wide slot/finger design that provides separation and noise emission and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. 2.0 x 2.0 (50.8 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Manuals & Documentation
| Catalog Number | G2X2LG6EMI |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications. |
| Color | Light Gray |
| Connection | Mounting Holes |
| Finish | Metallic Foil |
| Material | PVC/Aluminum |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983392568 |
| GTIN | 00074983392568 |
| Item Type | Base Wiring Duct |
| Width | 2.25 |
| Width UOM | Inch |
| Size | 2.0 x 2.0 |
