SQUARE D

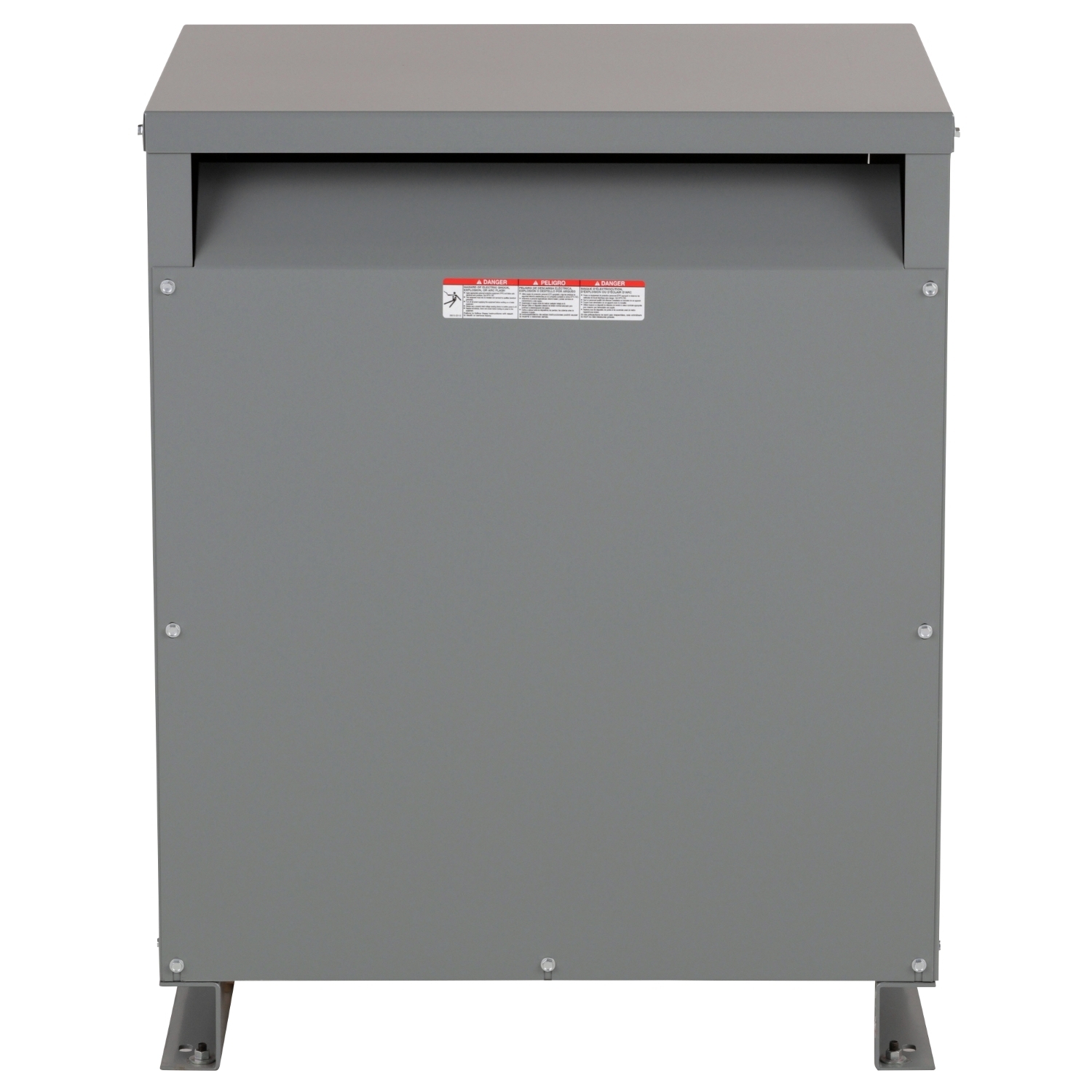

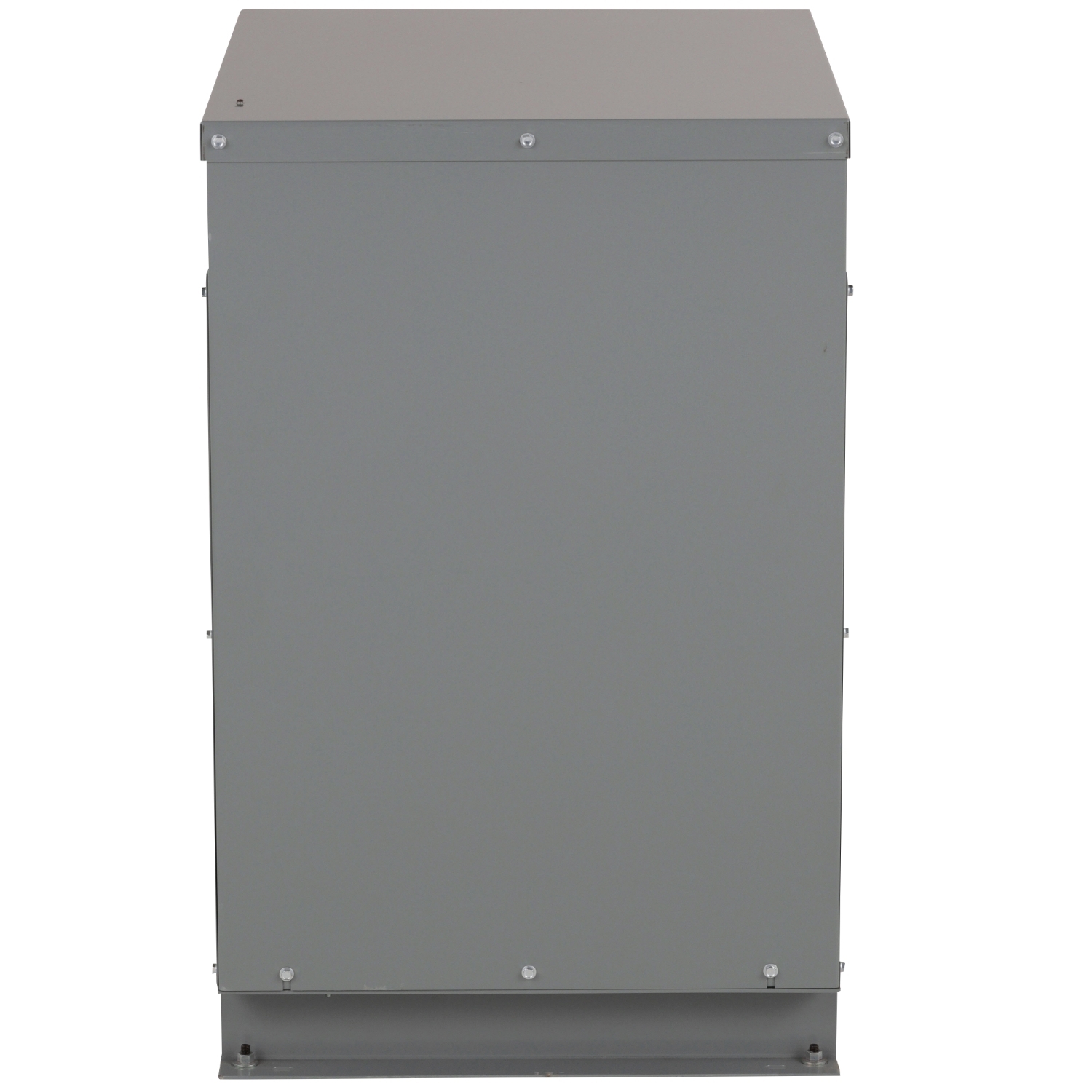

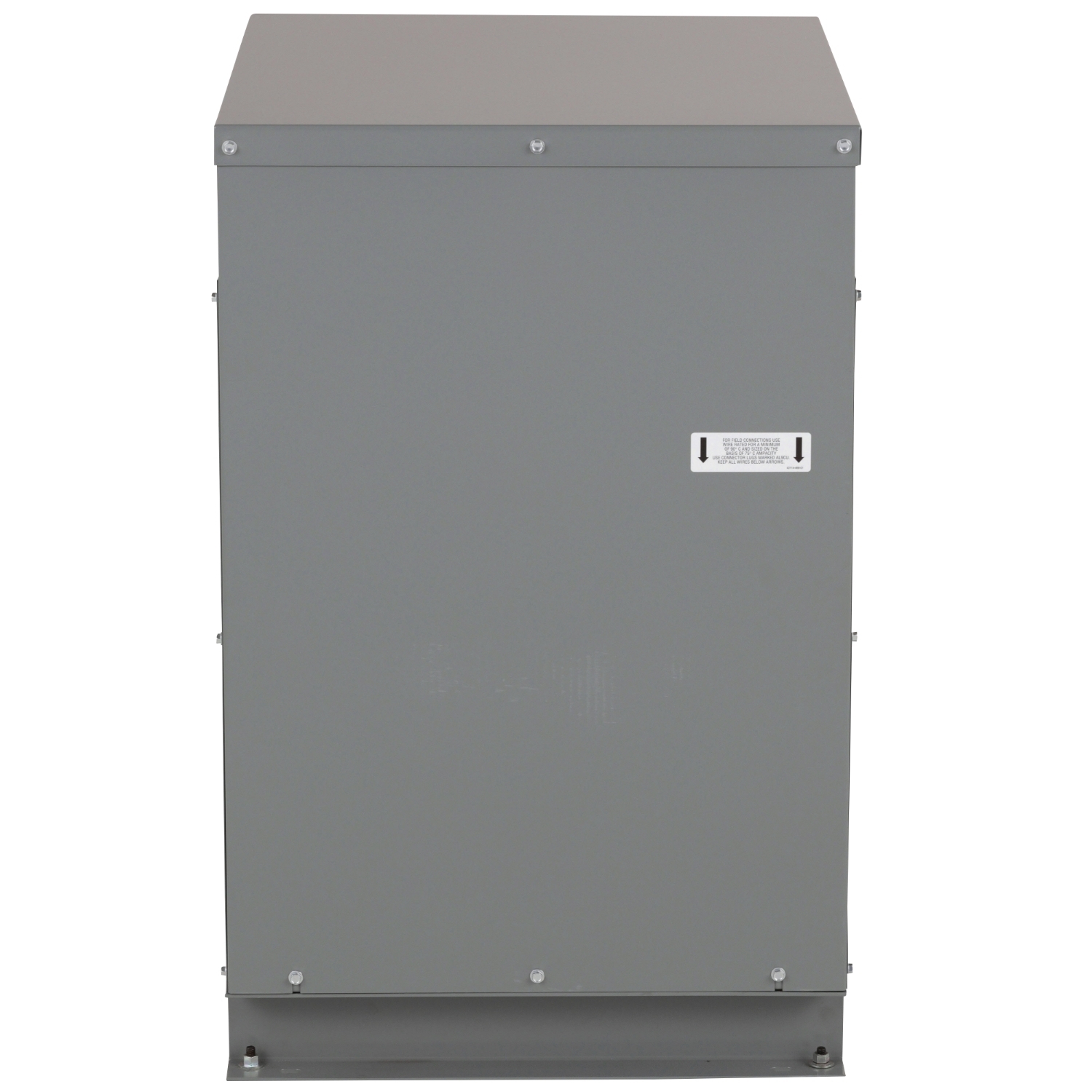

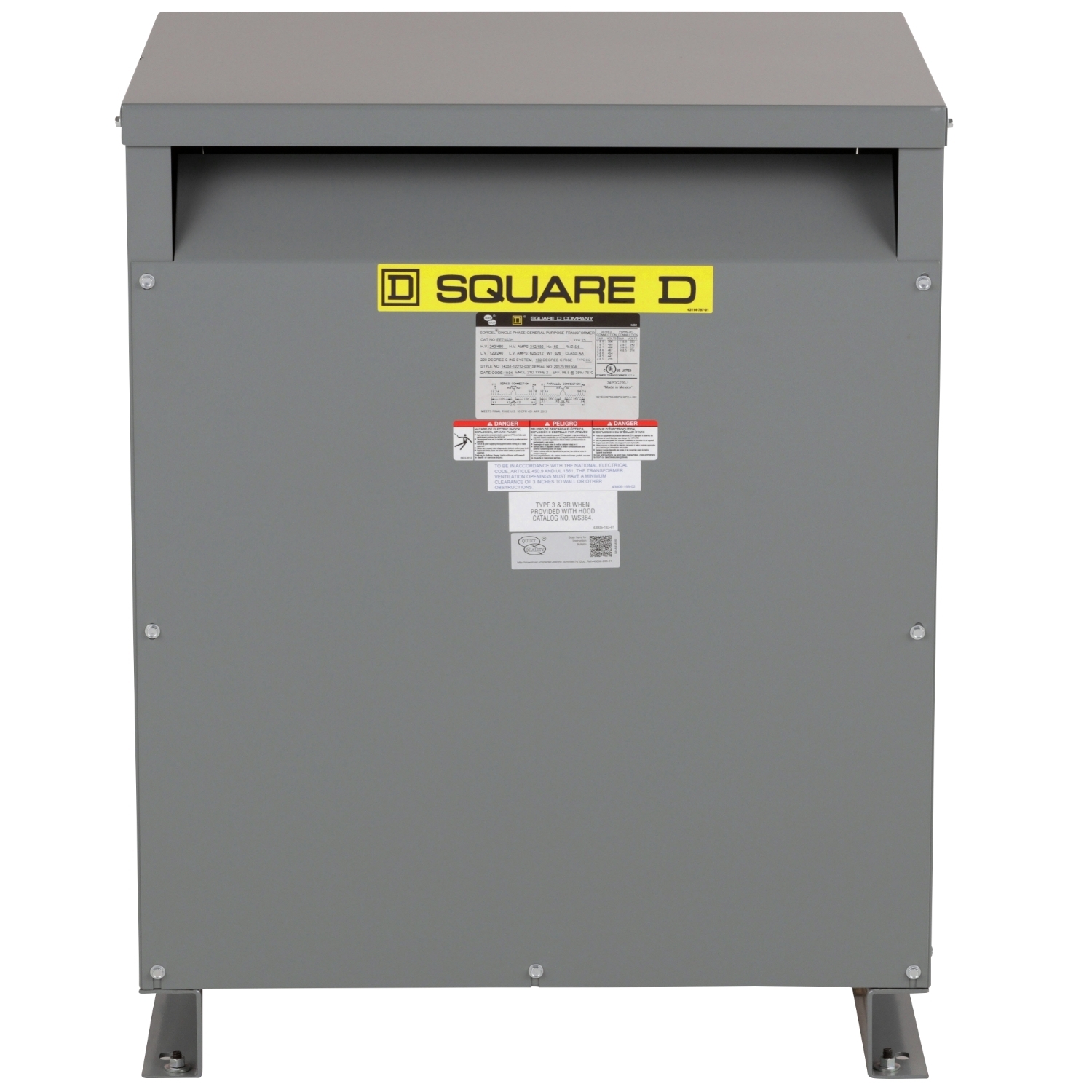

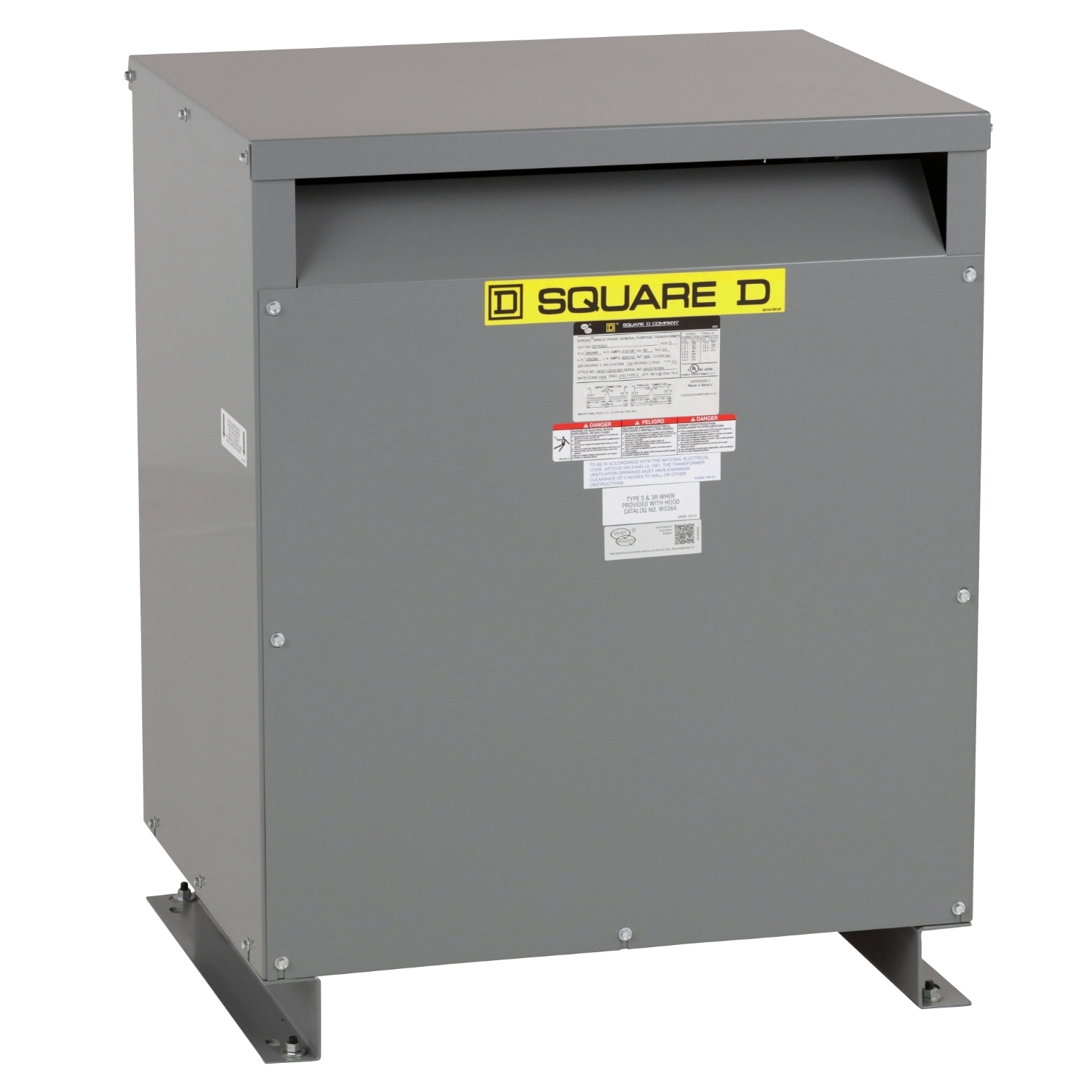

EE75S3H Energy Efficient Low Voltage Transformer, 240/480 V Primary, 120/240 V Secondary, 75 kVA Power Rating, 1 Phase

MFR:
Schneider Electric
MFR #:
EE75S3H
UPC:
785901629665
Item #:
19725

Low voltage dry-type distribution transformer means a distribution transformer that has an input voltage of 600 V or less, is air-cooled, and not used oil as a coolant. The Square D Energy Efficient transformer offering includes all of the popular options including low temperature rise, 115 C and 80 C, and aluminum or copper windings. These transformers are part of a complete line of Lean Power products from Schneider Electric. Available with aluminum or copper windings and 150C or 115C Rise with 220C insulation system. This Energy Efficient Transformer is a 1 phase, 75kVA, that has a primary Voltage of 240 x 480V and a secondary voltage of 120/240V. The Enclosure has a NEMA 2 rating and has a box number of 21D with a insulation temperature of 220 C. The unit is made of aluminium with a 150 C temperature rise. This product comes with an 18 month warranty.

Manuals & Documentation
Catalog Number EE75S3H
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Enclosure 21D
Number of Taps 6 2.5 % 2+ 4-
Phase 1
Primary Voltage 240 x 480 V
Secondary Voltage 120/240 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456781&lang=en-us
UPC 785901629665
GTIN 00785901629665
Item Type Energy Efficient Transformer
Cross Reference Products Acme T253024S|Acme TP530213S|ConnElect S2T75E|Eaton T20P11E75EE|Eaton T20P11S75EE|GEIndust 9T83B2674|Jefferson 4217235000|Siemens 1D1Y075|Siemens 1D1Y075ES|SolaHD ES5H75S
