Appleton

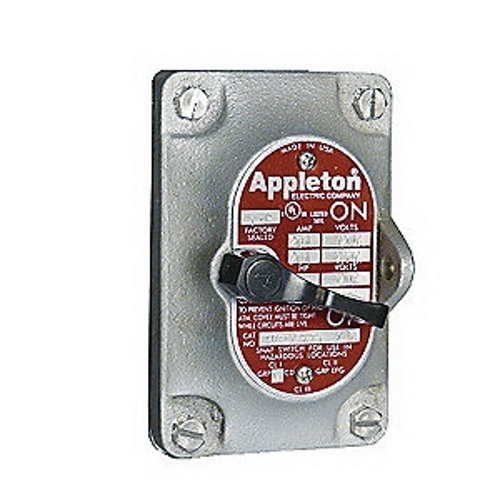

3-Way Front Cover Switch Assembly, 120 - 277 VAC, 20 A, Malleable Iron

MFR:
Appleton Electric
MFR #:
EDKF23WQ
UPC:
781381709415
Item #:
19666

1-Gang Front Operated Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Material: Malleable Iron, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For EDS Series 3-Way Tumbler Switches

Manuals & Documentation
Catalog Number EDKF23WQ
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For EDS Series 3-Way Tumbler Switches
Enclosure NEMA 7CD, 9EFG
Special Features Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models); Tumbler switch devices are approved for installation without additional external sealing fittings; Sealing chamber has prewired factory sealed pigtail leads to switch; Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction; Threaded stainless steel operating handle provides positive Corrosion resistant operation; For installation in: Chemical plants, petrochemical plants, Refineries and process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of light
Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381709415
GTIN 00781381709415
Item Type 1-Gang Front Operated Switch Assembly
Voltage Rating 120 - 277
