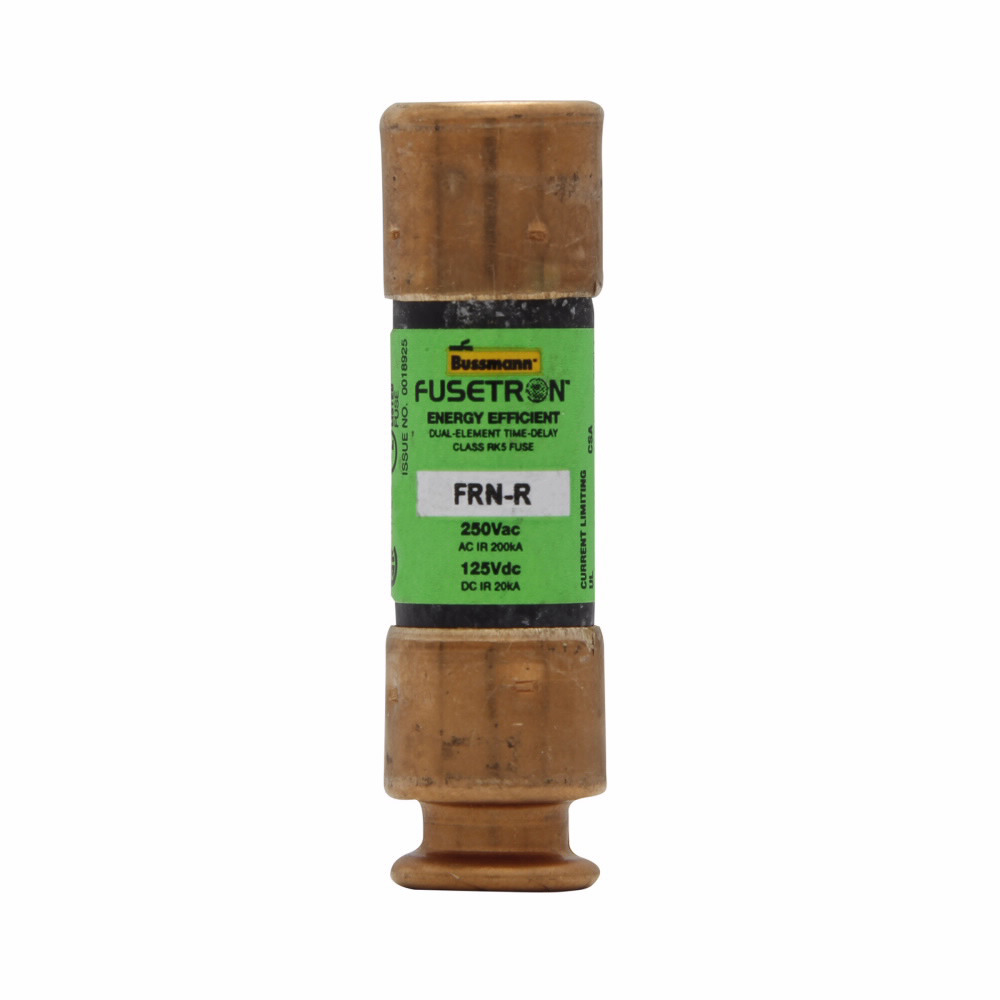

FRN-R-1 Fusetron Current Limiting Time Delay Fuse, 1 A, 250 V AC/125 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- FRN-R-1
- UPC:
- 051712507080
- Item #:
- 195732
FRN-R-1 Fusetron Current Limiting Time Delay Fuse, 1 A, 250 V AC/125 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
- MFR #:
- FRN-R-1
- UPC:
- 051712507080
- Item #:
- 195732
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
Manuals & Documentation
| Catalog Number | FRN-R-1 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 1 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 kAIC at 250 Vac|20 kAIC at 125 Vdc |
| Response Time | 10 S at 500% |
| Standard | CE Marked |
| UPC | 051712507080 |
| GTIN | 00051712507080 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.56 In Diameter X 2.00 In Length |
| Voltage Rating | 250 Vac, 125 Vdc |
