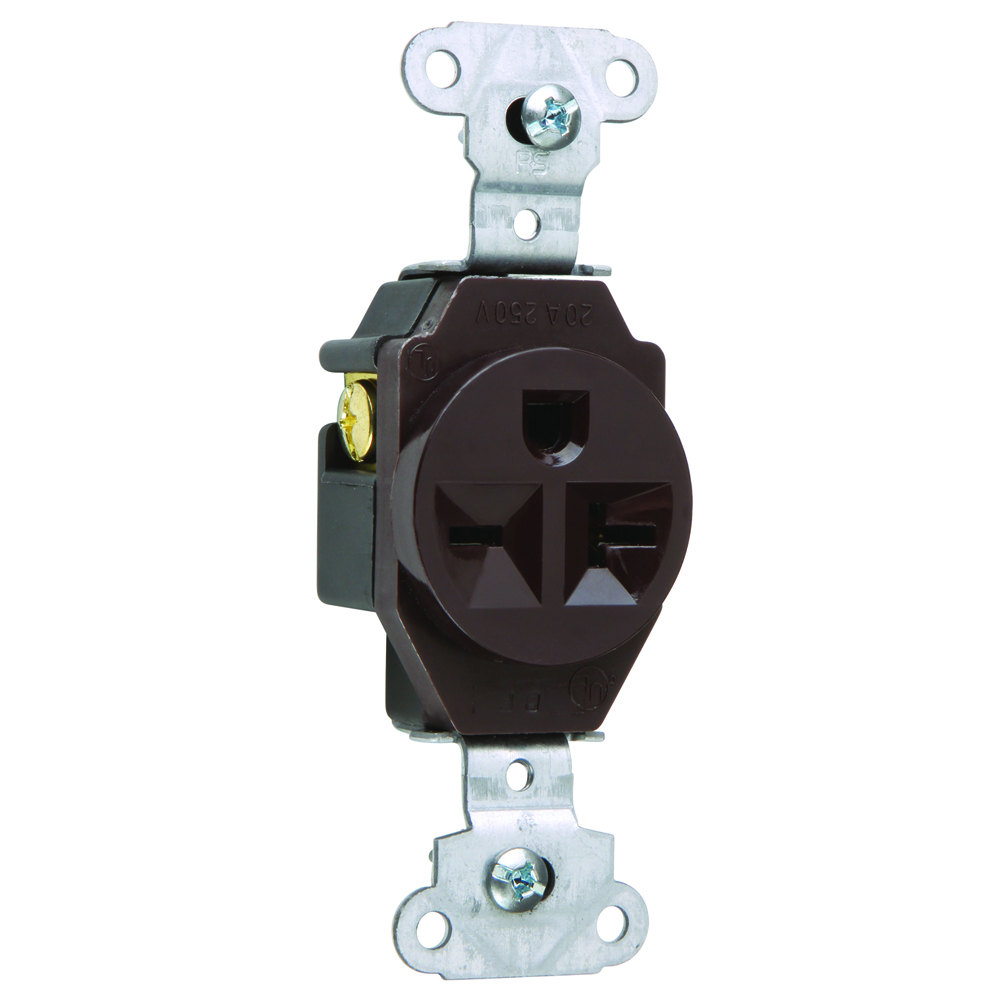

Heavy-Duty Spec Grade Single Receptacle, Side Wire 20A 250V

Catalog Number 5851
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Brown
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 6
Number of Poles 2
Number of Wires 3
Special Features Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
Standard UL498, CSA C22.2 No. 42
UPC 785007585100
GTIN 00785007585100
Item Type Spec Grade Single Receptacle
Size 1.32 L x 1.08 W x 3.68 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 250
Wire Size 14 - 10 AWG
