Discontinued

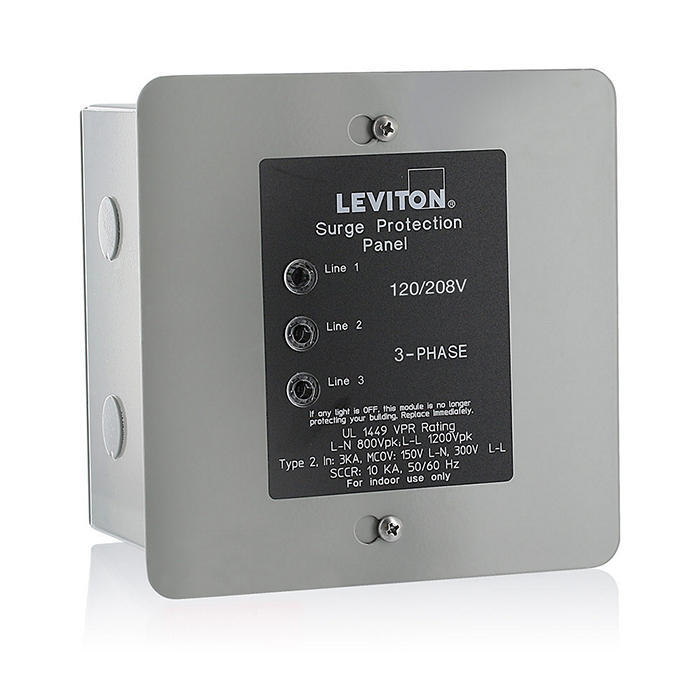

51120-3 51120 Type 2 Surge Protective Device, 20 A, 120/208 V AC, 50/60 Hz, 10 kA SCCR, 3 Phase
- MFR:
- Leviton
- MFR #:
- 51120-3
- UPC:
- 078477827659
- Item #:
- 195205
Discontinued
51120-3 51120 Type 2 Surge Protective Device, 20 A, 120/208 V AC, 50/60 Hz, 10 kA SCCR, 3 Phase
- MFR #:
- 51120-3
- UPC:
- 078477827659
- Item #:
- 195205
120/208 Volt 3 Phase WYE Panel Protector, 4-Mode Protection, Light Commercial/Residential Grade, In NEMA 1 Enclosure
Manuals & Documentation
| Catalog Number | 51120-3 |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial |
| Connection | Parallel Hardwired via 12AWG wire |
| Frequency Rating | 50/60 HZ |
| Material | Powder Coated Steel |
| Phase | 3 |
| Short Circuit Rating | 10 KAMP |
| Standard | ANSI\IEEE (Category C-62.41, C-62.45);NEMA;cULus Listed (1449) |
| UPC | 078477827659 |
| GTIN | 00078477827659 |
| Item Type | Type 2 SPD |
| Depth UOM | Inch |
| Size | 7.50 H x 4.25 W x 3.25 D |
| Environmental Conditions | Storage temperature (-20 to +85 DEGC);Humidity (5 to 95% Non-Condensing);Flammability (Rated UL 94 V-2) |
| Operating Temperature | -10 to +60 DEG C |
| Type of Indicators | Noise Filtering |
| Voltage Rating | 120/208 |
