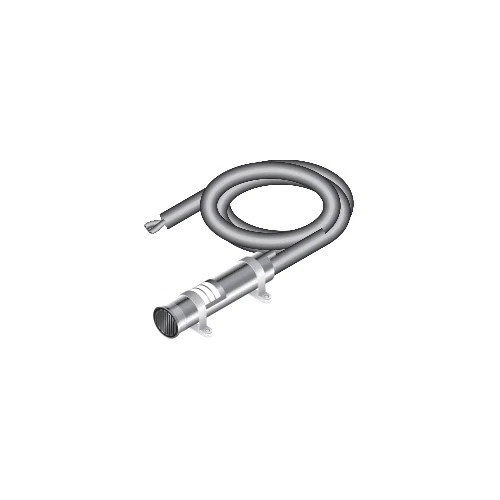

The ETI GIT-1 Gutter Ice Sensor is for use in an automatic ice melting or de-icing control system for gutters and downspouts employing an APS- 3B or APS-4 Control Panel. Heaters operate only while required thus saving energy and ensuring reliable ice melting / de-icing. Since the GIT-1 mounts in gutters and downspouts it senses actual environmental conditions. This improves sensing accuracy. Solid state moisture and temperature sensors provide the sensitivity required for effective automatic control.
Manuals & Documentation
Features
- NEC class 2 circuit
- Reliable during long life
- Maintenance free
- Up to 2000 ft using 12 AWG 3-wire jacketed cable
- Simple and fast to install
- Excellent snow detection accuracy, using precision precipitation and temperature sensors
- No ice bridging, due to the unique microcontroller design
- Remote use, with up to 2000 ft/609.6 m separation from the control panel possible
- Aerial snow sensor detects falling or blowing precipitation before snow or ice begin to accumulate
| Manufacturer Part Number | GIT-1 |
| Brand | RAYCHEM |
| Manufacturer | Chemelex |
| UPC | 715629007582 |
| Country Of Origin | US |
| Dimensions | 1.5 in H x 5.56 in W x 1.5 in D |
| Voltage Rating | 24 VAC |
| Alternative Part Number | 126795-000 |
| Manufacturer Item Status | Discontinued |
| Country | USA/Canada |
| Warranty | 10 Years |
| Application | For Automatic Ice Melting or De-Icing Control System for Gutters and Downspouts Employing an APS- 3B or APS-4 Control Panel, Building and Construction, Chemical and Pharmaceutical, Food and Beverage, Mining, Oil and Gas, Power |
| Ambient Temperature Rating | 40 to 160 deg F |
