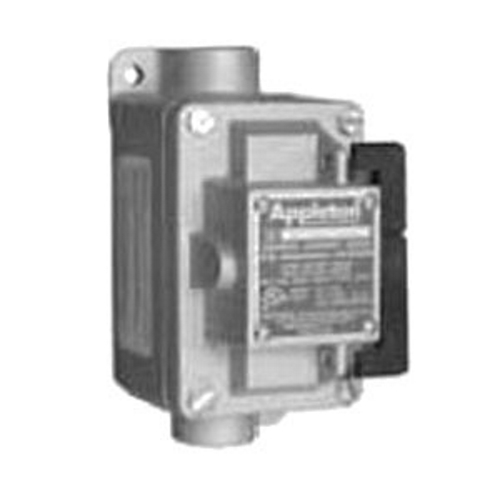

2-Circuits Universal Explosionproof Dust-Ignitionproof 1-Gang Factory Sealed Pushbutton Station; Momentary Action, 600 Volt AC
- MFR:
- Appleton Electric
- MFR #:
- EDSC175-RU2
- UPC:
- 781381326766
- Item #:
- 193052
2-Circuits Universal Explosionproof Dust-Ignitionproof 1-Gang Factory Sealed Pushbutton Station; Momentary Action, 600 Volt AC
- MFR #:
- EDSC175-RU2
- UPC:
- 781381326766
- Item #:
- 193052
2 Circuit Universal 1-Gang Push Button Station, Contact Configuration: 2 NO/2 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Rocker Arm, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Standard: UL 5
Manuals & Documentation
| Catalog Number | EDSC175-RU2 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Factory sealed eliminates need for adding sealing fittings and compound at each conduit entrance; Heavy duty Switches; Switch is enclosed in separate sealing chamber; Sealing chamber has smooth, double flanges that mate both to cover and mounting enclosure to provide flame-tight joints; Pigtail leads from push buttons are factory sealed in sealing well; Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure; Side rocker arm push button has lockout holes; EFD/EFDB backbox supplied with internal ground screw; 2 Circuit universal; For heavy duty use |
| Standard | UL 508, 698, 1203, UL File Number E10449, E81751, Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III; NEMA 7CD, 9EFG |
| UPC | 781381326766 |
| GTIN | 00781381326766 |
| Item Type | 2 Circuit Universal 1-Gang Push Button Station |
