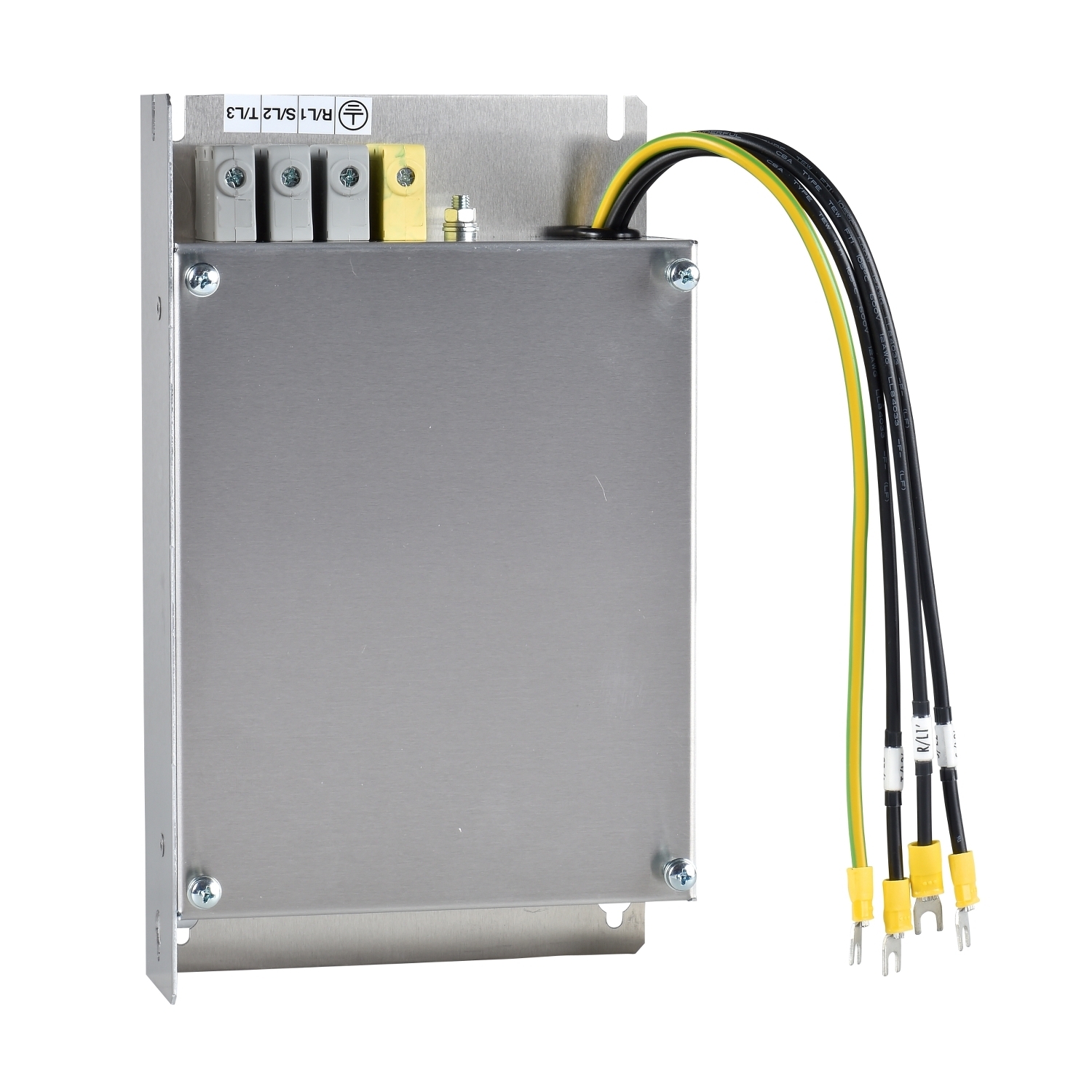

VW3A31404 Radio Interference EMC Input Filter, 200 to 240/380 to 500 VAC, 15 A, 1/2 hp, 7.68 in H x 4.12 in W
- MFR:
- Schneider Electric
- MFR #:
- VW3A31404
- Item #:
- 192655
VW3A31404 Radio Interference EMC Input Filter, 200 to 240/380 to 500 VAC, 15 A, 1/2 hp, 7.68 in H x 4.12 in W
- MFR #:
- VW3A31404
- Item #:
- 192655
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Manuals & Documentation
| Catalog Number | VW3A31404 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Thailand |
| Made in USA | No |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6940874&lang=en-us |
| GTIN | 03389110689464 |
