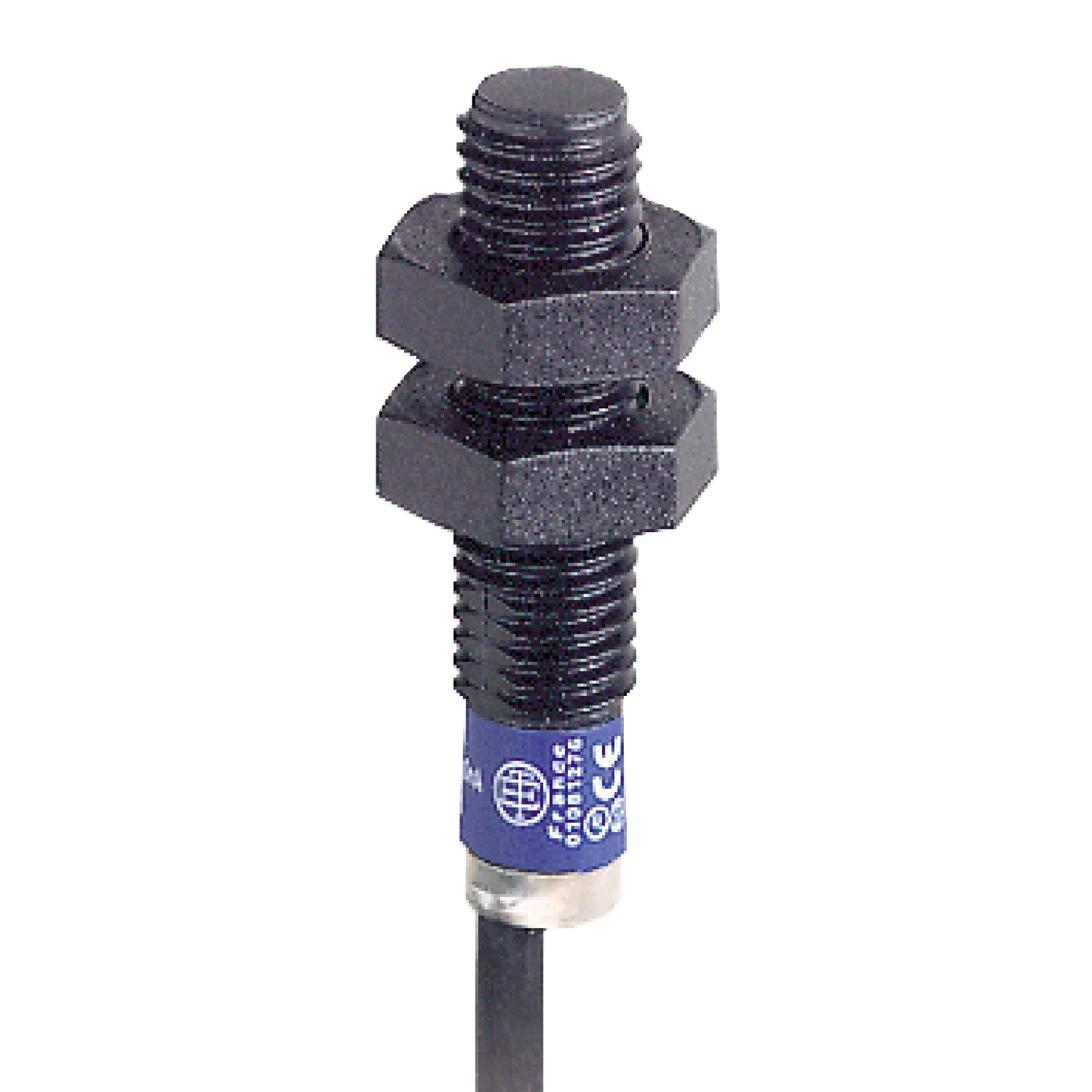

XS4P08PA340 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS4P08PA340
- UPC:
- 785901912859
- Item #:
- 192047
XS4P08PA340 OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, PNP Output, 1NO Contact, 10 to 36/12 to 24 V DC
- MFR #:
- XS4P08PA340
- UPC:
- 785901912859
- Item #:
- 192047
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This ECOLAB certified product is a cylindrical, non flush mountable sensor. Diameter 8mm, threaded M8 x 1. It features a plastic case and a 2m long cable. It has a sensing distance of 2.5mm. Three-wire, AC or DC supply, 12V to 24V, NO function, PNP solid-state output.
Manuals & Documentation
| Catalog Number | XS4P08PA340 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Control Output | 1 NO, PNP |
| Enclosure | PPS |
| Indicator | Output state 1 LED yellow) |
| Material | Plastic |
| Mounting | Flush |
| Sensing Range | 2.5 MM,> 0...0.1 IN (> 0...2.5 MM) |
| Sensor | 33 MM,8 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | PLASTIC |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=868822&lang=en-us |
| UPC | 785901912859 |
| GTIN | 03389110912852 |
| Item Type | Inductive proximity sensor;Cylindrical M8 |
| Operating Temperature | -25-70 A Degrees C |
