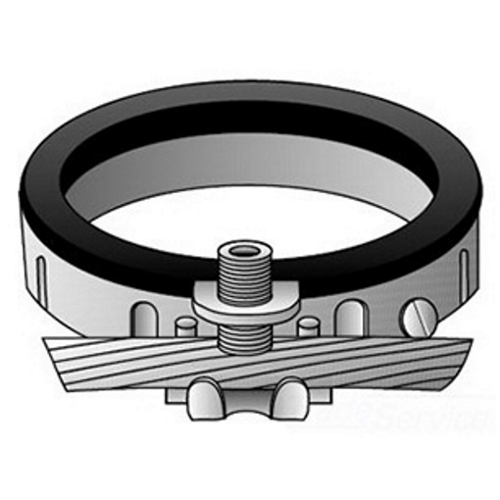

ABLG-2004 Copper Plus Lay-In-Lug Type ABLG Grounding Bushing, 14 to 4 AWG AC Cable, 2 in Trade, Copper Free Aluminum
- MFR:
- O-Z/Gedney
- MFR #:
- ABLG-2004
- UPC:
- 783126011326
- Item #:
- 191666
ABLG-2004 Copper Plus Lay-In-Lug Type ABLG Grounding Bushing, 14 to 4 AWG AC Cable, 2 in Trade, Copper Free Aluminum
- MFR #:
- ABLG-2004
- UPC:
- 783126011326
- Item #:
- 191666
Manuals & Documentation
| Catalog Number | ABLG-2004 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Threaded Rigid Conduit And IMC |
| Connection | Set-Screw |
| Material | Copper-Free Aluminum Body, Stainless Steel Screws |
| Special Features | O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Copper conductor only for #14-4 lug |
| Standard | Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1 |
| UPC | 783126011326 |
| GTIN | 00783126011326 |
| Item Type | Type ABLG Insulated Grounding Bushing |
| Size | 2 |
| Temperature Rating | 150 DEG C |
