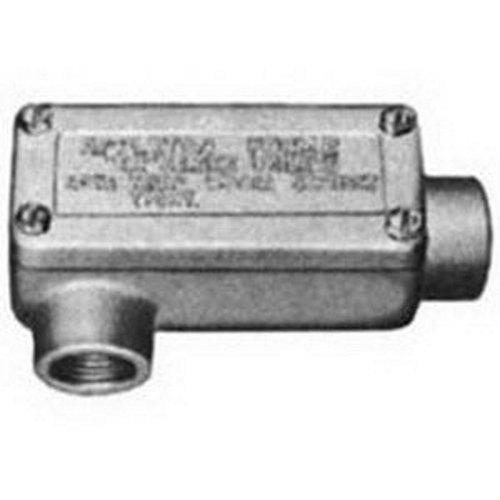

UNILETS ER Type LR Conduit Outlet Box With Cover, Hub Size: 3/4 IN, Height: 2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Threaded, Standard: UL File Num

Manuals & Documentation
Catalog Number ERLR75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit
Material Malleable Iron
Special Features Meet a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit; Provide access for maintenance; Malleable iron bodies have high tensile strength and ductility; Provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with covers; General purpose wiring; Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited; Six different hub arrangements; Ground surface contact between body and cover assures a flame-tight joint; Smooth, rounded integral bushing in each hub type box protects conductor insulation
Standard UL File Number E30513, R1044, 009795, Class I, Division 1 And 2, Group C And D Class II, Division 1 And 2, Groups E, F, G Class III
RoHS Indicator Contact Manufacturer
UPC 781381302753
GTIN 00781381302753
Item Type ER Type LR Conduit Outlet Box With Cover
Length 8.1000
Length UOM Inch
Width 5.1000
Width UOM Inch
Height 0.9200
Height UOM Inch
Weight 2.700
Weight UOM Pounds
