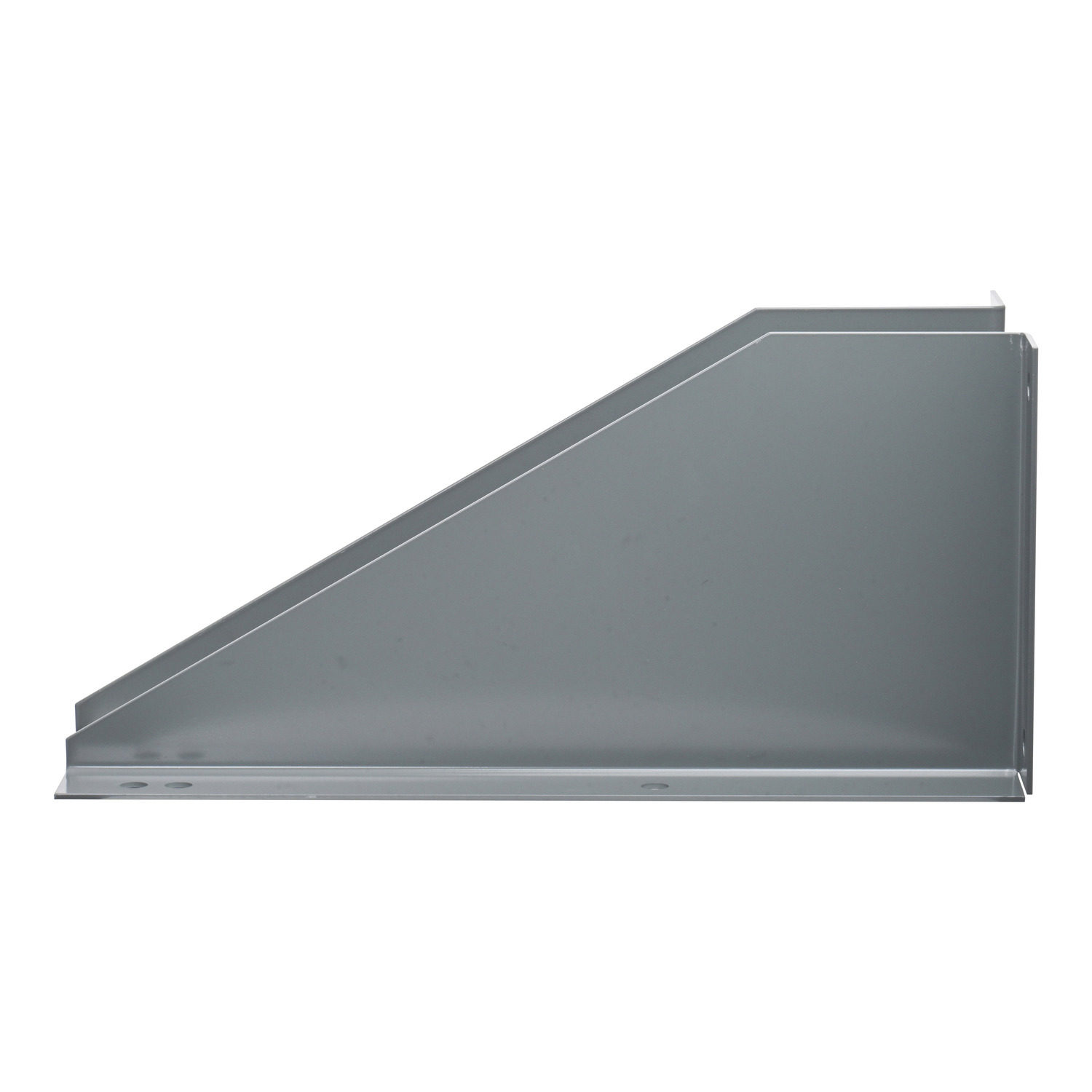

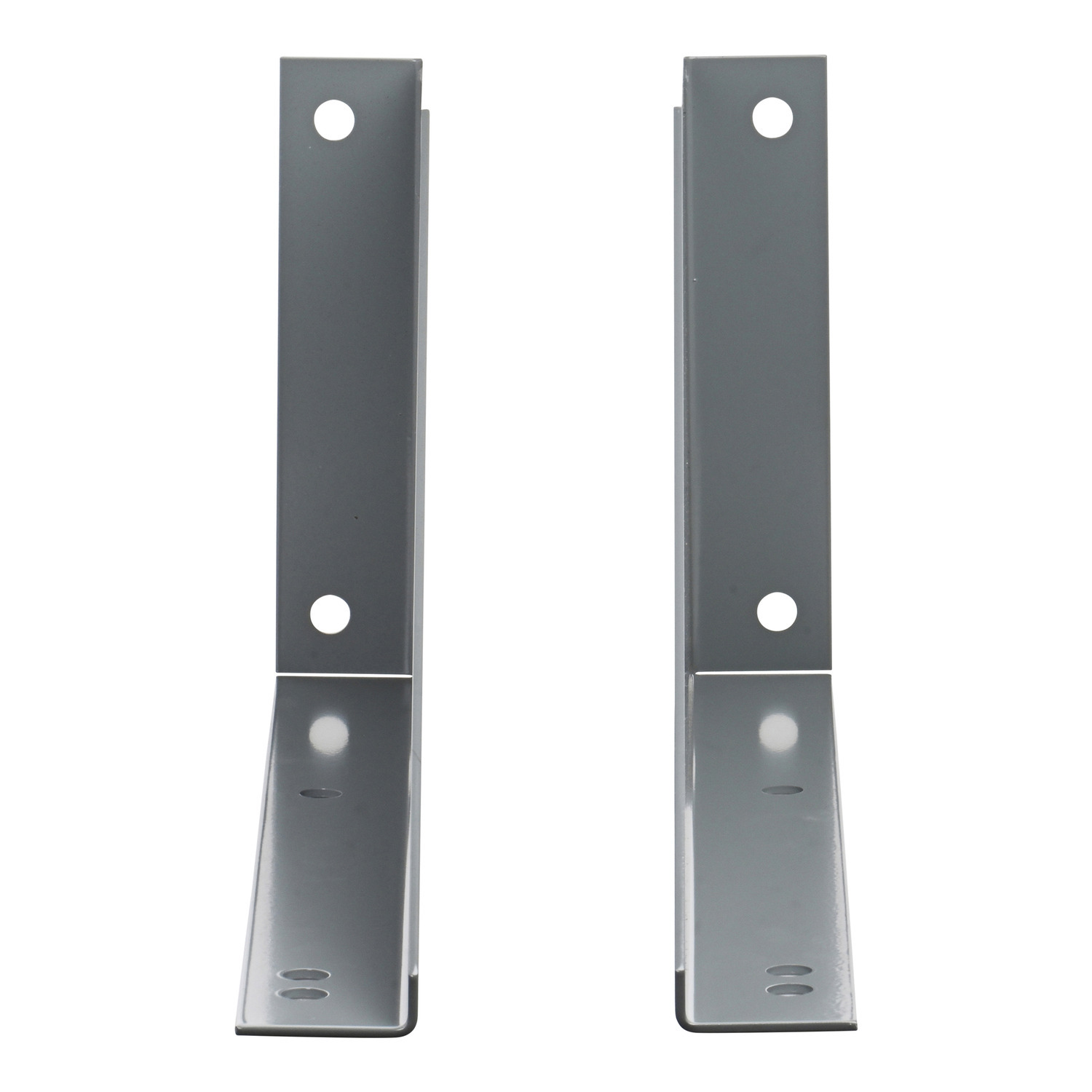

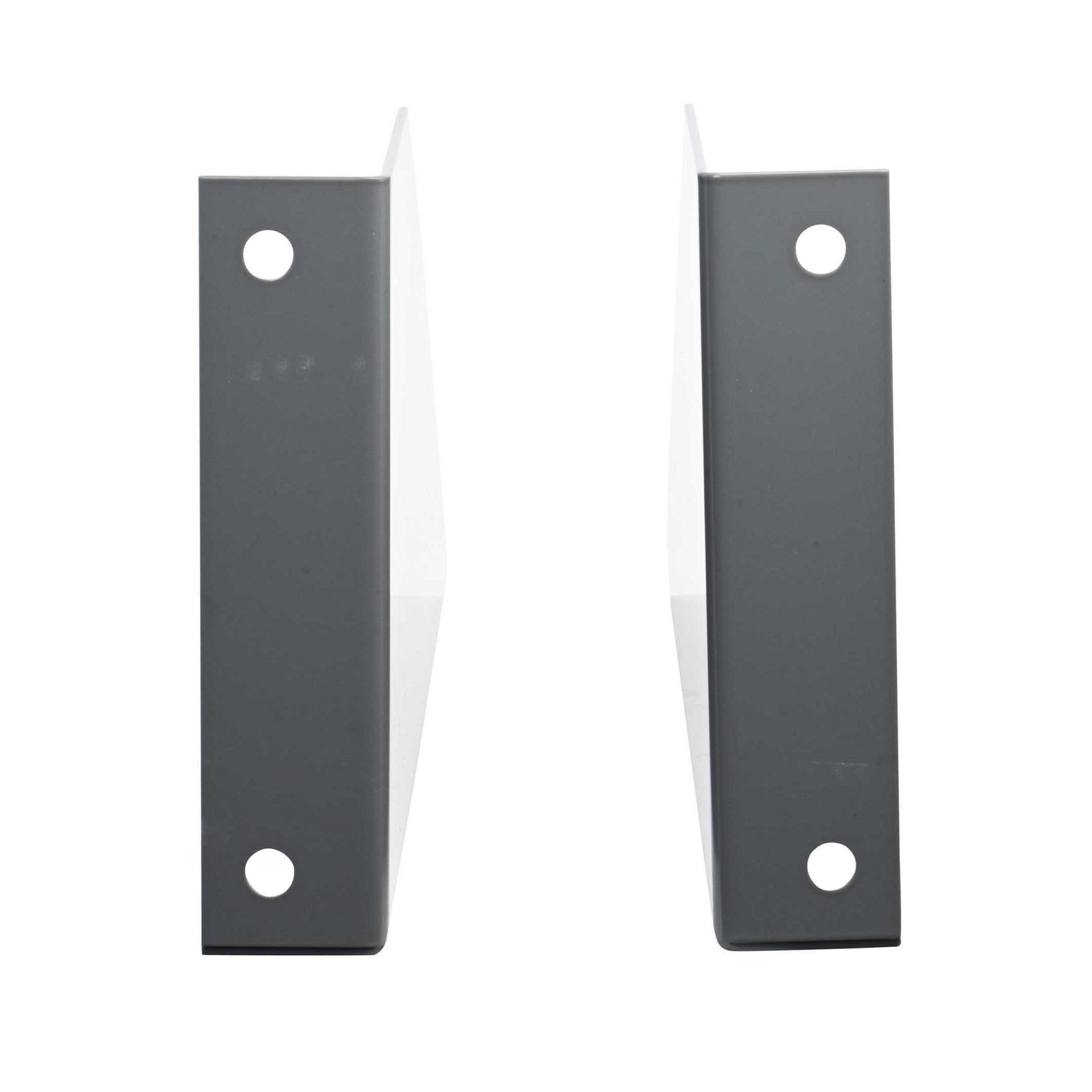

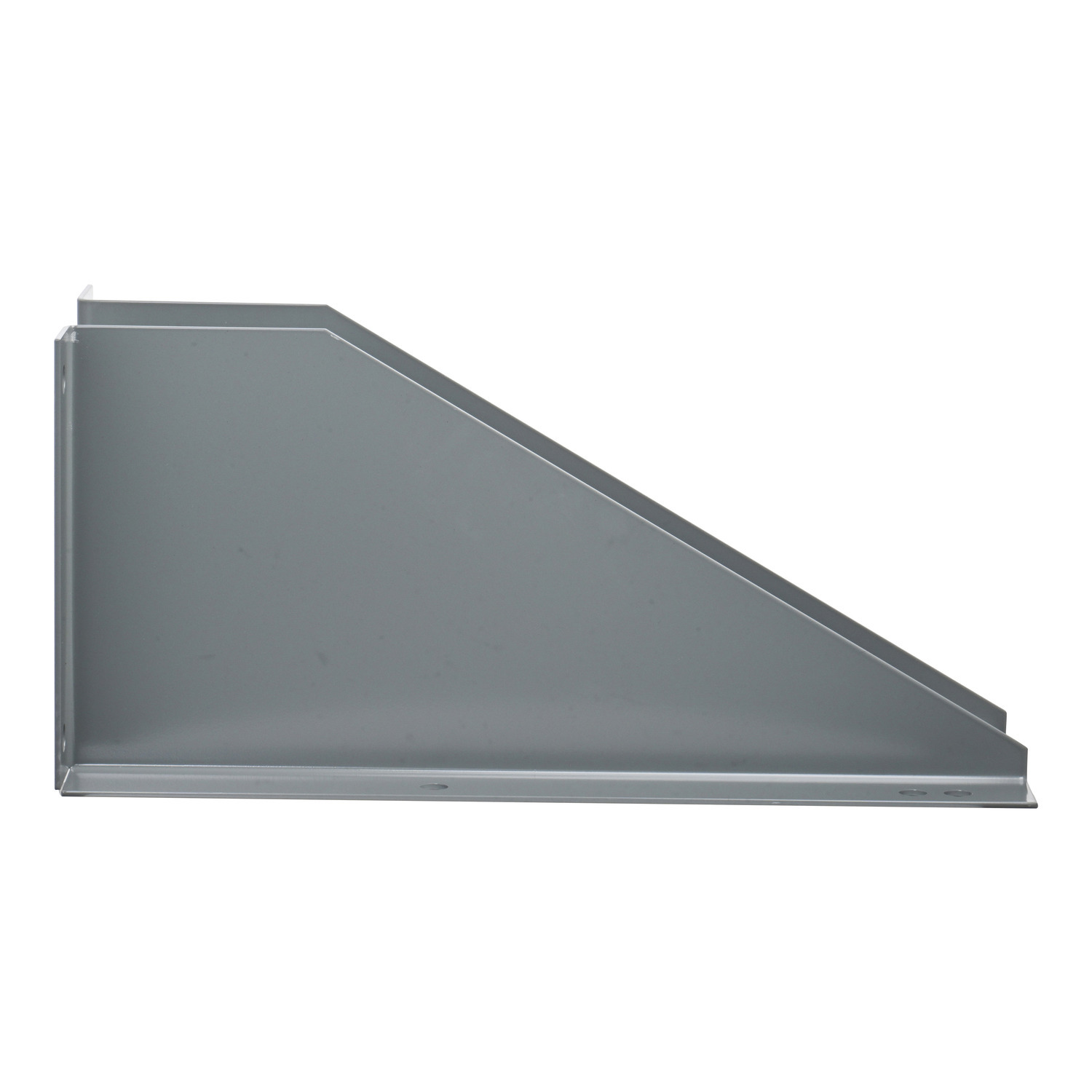

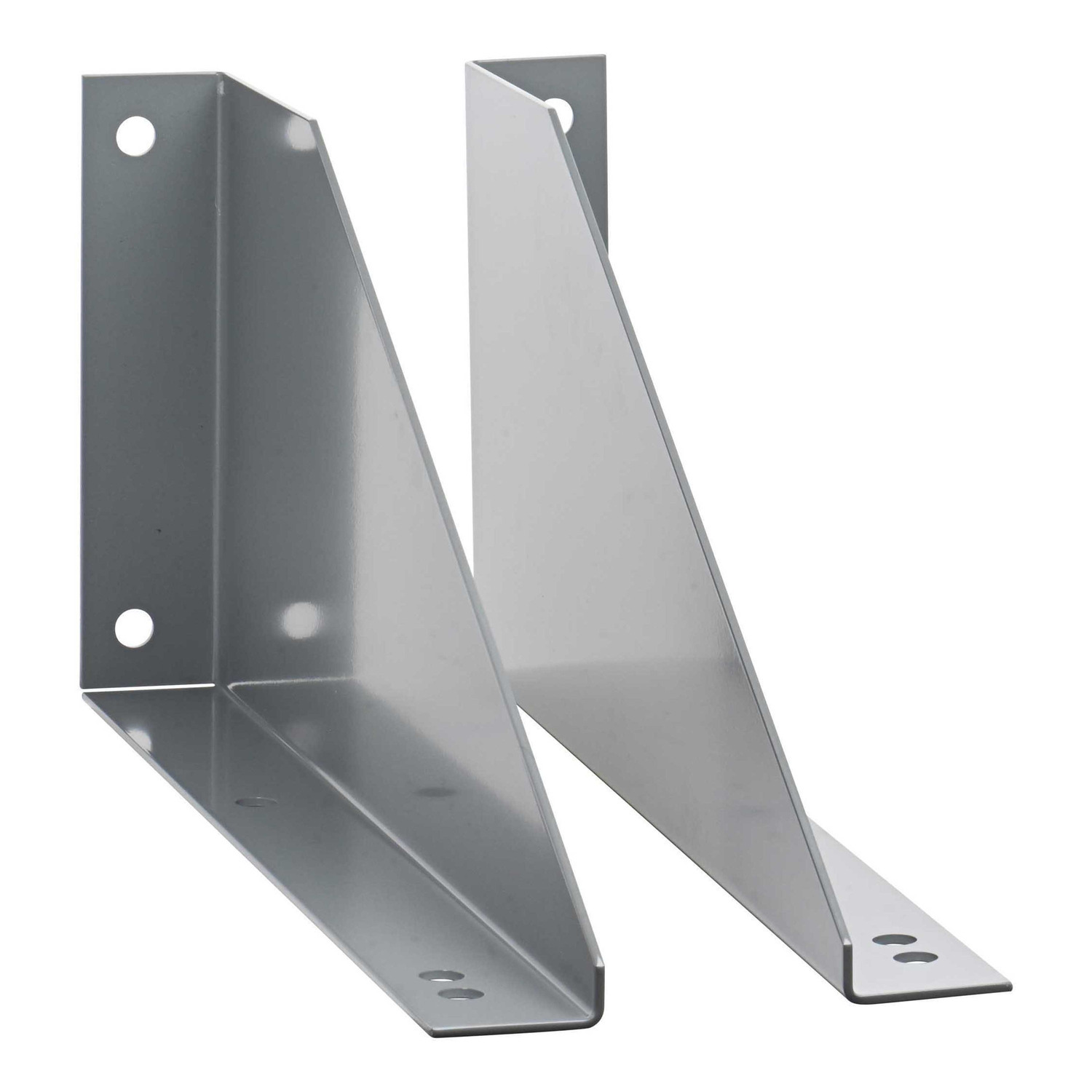

WMB361362 Wall Mount Bracket, For Use With D17 and H17 Left and Right General Purpose Transformer

MFR:
Schneider Electric
MFR #:
WMB361362
UPC:
785901753568
Item #:
19129

As the industry leading designer, manufacturer, and supplier of low voltage, general purpose transformers. Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. This wall mounting bracket is an mounting accessory. This wall mounting bracket, D17 & H17 Transformer, Left and Right, is a wall mount mounting accessory, and is made of grey painted steel and is used for indoor/outdoor applications. Dimensions are 10.12 in (H), 2.38 in (W), 21.62 in (D). This product comes with an 18 month warranty.

Manuals & Documentation
Catalog Number WMB361362
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Enclosure 17H;17E;17D
Material Gray painted steel
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=457431&lang=en-us
UPC 785901753568
GTIN 00785901753568
Item Type Wall bracket
Width 2.38
Width UOM Inch
Height 10.12
Height UOM Inch
Depth 21.62 IN
Cross Reference Products Grainger 2CP08|Schneider WMB361362|SquareD WMB361362
