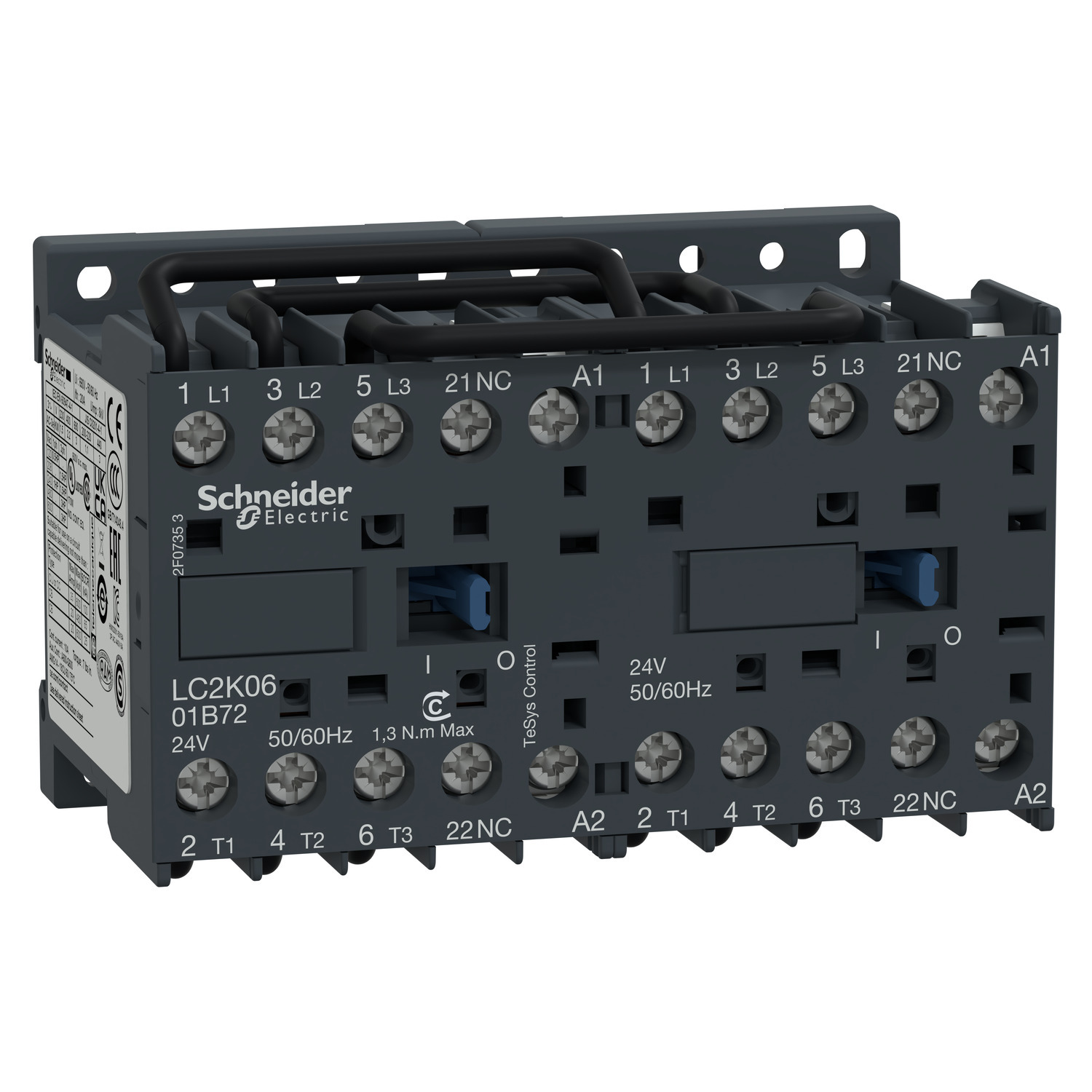

LC2K0601B72 TeSys K Reversing Contactor With Mechanical Lock, 24 V AC V Coil, 20 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2K0601B72
- Item #:
- 190172
LC2K0601B72 TeSys K Reversing Contactor With Mechanical Lock, 24 V AC V Coil, 20 A, 3NO Contact, 3 Poles
- MFR #:
- LC2K0601B72
- Item #:
- 190172
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V 50/60Hz AC coil with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals & Documentation
| Catalog Number | LC2K0601B72 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control |
| Coil Voltage | 24 V AC 50/60 Hz |
| Contact Configuration | 1 NC |
| Standard | CB Scheme;CCC;UL;CSA;EAC;CE;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=629234&lang=en-us |
| GTIN | 03389110490688 |
| Item Type | Reversing contactor;LC2K |
