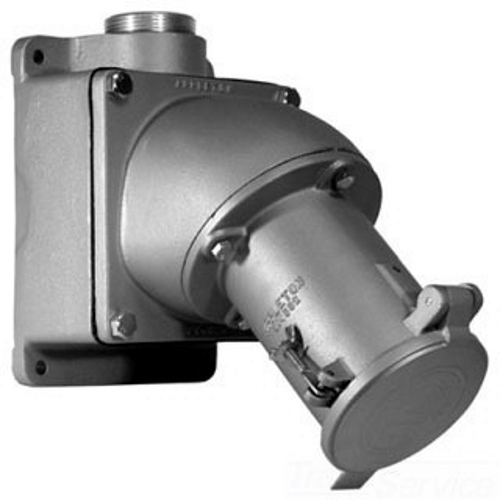

ADJA20033-200 Powertite 3-Phase Grounding Style 1 Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 200 A, 3 Poles, 3 Wires
- MFR:
- Appleton Electric
- MFR #:
- ADJA20033-200
- UPC:
- 781381612517
- Item #:
- 184728
ADJA20033-200 Powertite 3-Phase Grounding Style 1 Pin and Sleeve Receptacle With AJA Mounting Box, 600 V AC/250 V DC, 200 A, 3 Poles, 3 Wires
- MFR #:
- ADJA20033-200
- UPC:
- 781381612517
- Item #:
- 184728
Appleton Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, Mounting: Surface Mount With 2 IN Hub, Connection: Pressure Wire Terminal, Temperature Rating: -40 To 107 DEG C, Motor Horsepower: 50 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 8 IN Width X 13.50 IN Height X 14-1/4 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For AP20033E Plug
Manuals & Documentation
| Catalog Number | ADJA20033-200 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | For AP20033E Plug |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Surface |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Weatherproof spring door, raintight clamp cover |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381612517 |
| GTIN | 00781381612517 |
| Item Type | Grounding Style 1 Receptacle With AJA Mounting Box |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 2/0 AWG - 250 MCM |
