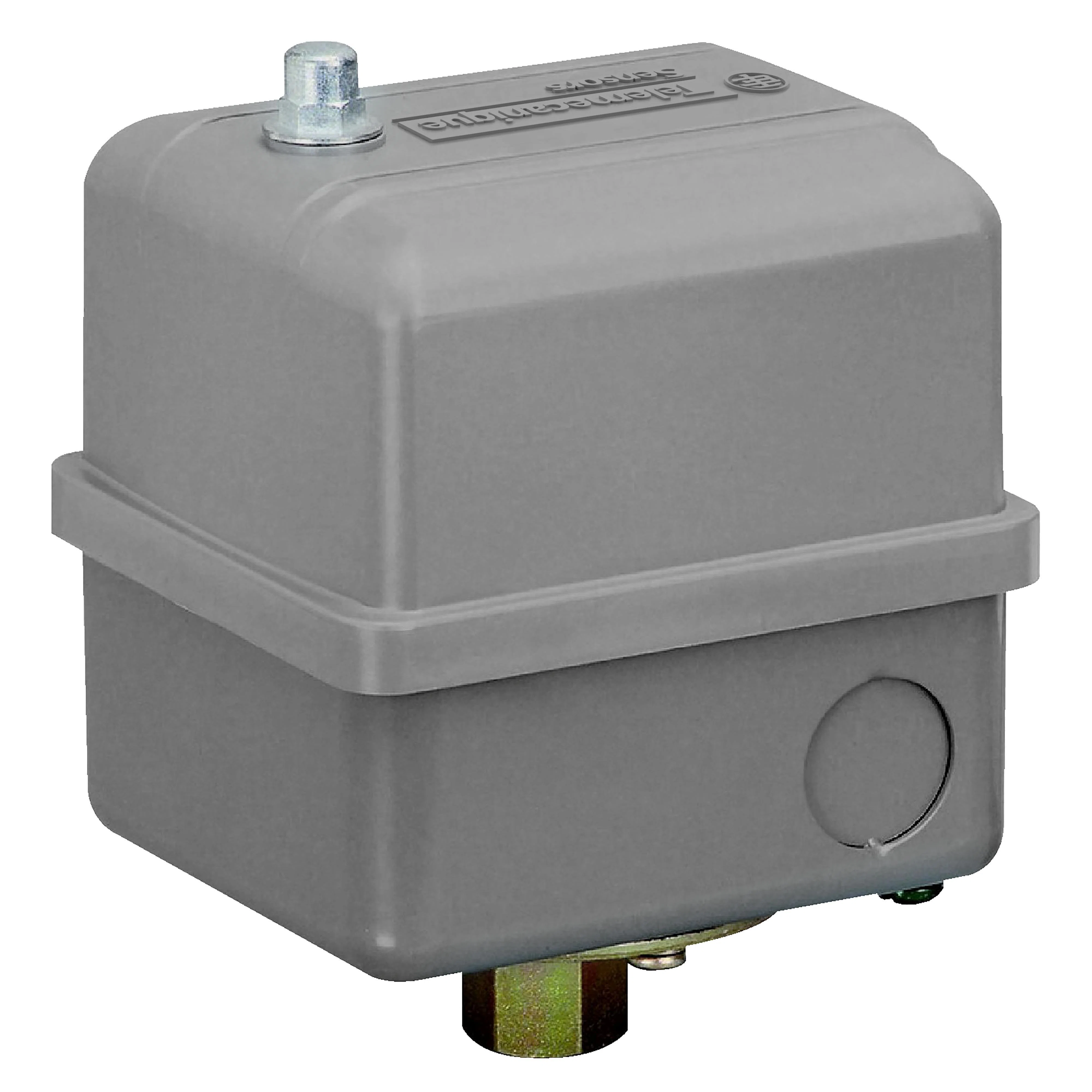

Pumptrol, pump or compressor switch 9013GS, adjustable diff., 60 80 PSI
- MFR:
- Schneider Electric
- MFR #:
- 9013GSG2J25
- UPC:
- 785901560395
- Item #:
- 18437
Pumptrol, pump or compressor switch 9013GS, adjustable diff., 60 80 PSI
- MFR #:
- 9013GSG2J25
- UPC:
- 785901560395
- Item #:
- 18437
Pressure switches, float switches, vacuum switches and power pressure switches for control or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses, injection molders, grinding machines, machining centers, complex, special machines, HVAC, automotive, food, beverage, healthcare facilities, pharmaceutical and more. Classes 9012, 9013, 9016, 9036, 9037 and 9038.
Manuals & Documentation
Features
- 9013G power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Driftproof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- 60 to 80 psi pressure
| Manufacturer Part Number | 9013GSG2J25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901560395 |
| EAN | 0785901560395 |
| Country Of Origin | MX |
| Enclosure Type | NEMA 1/IP20 |
| Housing Material | Polypropylene |
| Series | 9013GS |
| Temperature Rating | -33 to 257 deg F |
| Type | Type G Adjustable Electromechanical |
| Alternative Part Number | 8092047 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | ECCN EAR99 | CSA Certified | IEC 60529 | REACH Compliant | RoHS Compliant | UL 508 | PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Application | Industrial, Pressure Control or Monitoring of Water Pumps, Compressors, Agricultural/irrigation Water Systems, Molding Presses, Injection Molders, Grinding Machines, Machining Centers, Complex And Special Machines, HVAC, Automotive, Food and Beverage, Healthcare Facilities, Pharmaceutical, Controlling Small Electrically Driven Air Compressors, Indoor and General Purpose Applications and Regulation Between 2 Thresholds |
| Connection Material | Steel |
| Connection Type | Screw Clamp |
| Contact Configuration | 2NC |
| Diaphragm Material | Nitrile |
| Operating Cycles | 60 cpm |
| Pressure Rating | 5 to 60 psi |
