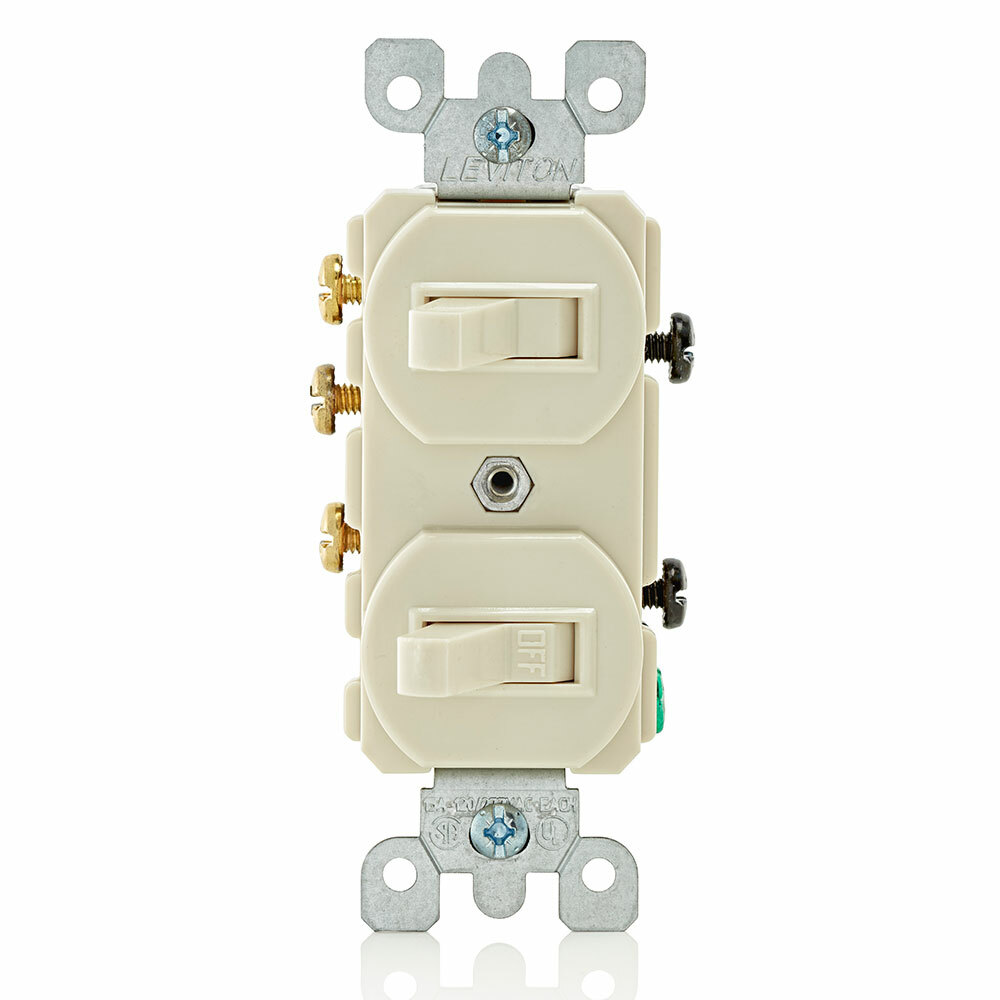

5241-T Traditional 3-Way Commercial Grade Duplex Non-Grounding Combination Switch, 20 A, 125 V AC, 1 hp, 1 Poles
- MFR:
- Leviton
- MFR #:
- 5241-T
- UPC:
- 078477274910
- Item #:
- 183530
5241-T Traditional 3-Way Commercial Grade Duplex Non-Grounding Combination Switch, 20 A, 125 V AC, 1 hp, 1 Poles
- MFR #:
- 5241-T
- UPC:
- 078477274910
- Item #:
- 183530
| Catalog Number | 5241-T |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Unknown |
| Made in USA | No |
| Actuator | Toggle |
| Amperage Rating | 15 |
| Application | Commercial |
| Color | Light Almond |
| Connection | Side Wired |
| Contact Rating | 120/277 VAC;15 AMP |
| Mounting | Wall |
| Special Features | Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Non-Grounding, Pilot Light, Made in Mexico |
| Standard | UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057) |
| UPC | 078477274910 |
| GTIN | 00078477274910 |
| Item Type | Duplex Style |
| Size | 4.20 H x 1.62 W x 16 D |
| Environmental Conditions | Flammability (Rated UL 94 V-2) |
| Operating Temperature | -40 to +120 DEG C |
| Voltage Rating | 120/277 |
| Cross Reference Products | RC103LA |
