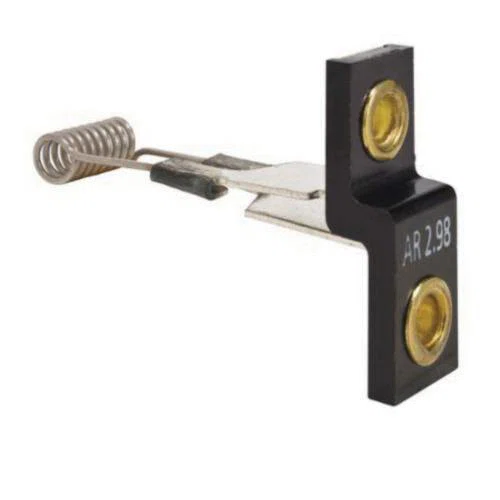

Square D™ Thermal Unit, Bi-Metallic, 1.75 to 849 A Full Load, Standard Trip, 4.8 in L x 3.5 in W x 2.4 in H, Plug-In Mount, NEMA 7/8, 40 deg C

Manuals & Documentation

Features

  • Manual or auto reset
  • Full load current range depends on overload relay
  • Type AR thermal unit
  • 1.75 to 849 A (1 thermal unit), 2.04 to 2.87 A (1 or 2 phase 2 thermal unit), 2.03 to 2.35 A (3 thermal unit) full load current
Manufacturer Part Number AR3.28
Brand Square D™
Manufacturer Schneider Electric
UPC 785901586425
Country Of Origin MX
Enclosure Type NEMA 7/8
Mounting Type Plug-In
Temperature Rating 40 deg C
Type Bi-Metallic
Size 4.8 in L x 3.5 in W x 2.4 in H
Manufacturer Item Status Discontinued
Country USA
Warranty 18 months
Standards Approvals ARRA Compliant | Buy American Act Compliant | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application Thermal Overload Relays, Magnetic Motor Starters and Motor Controls Applications
Full Load Current 1.75 to 849 A
Trip Type Standard
