SQUARE D

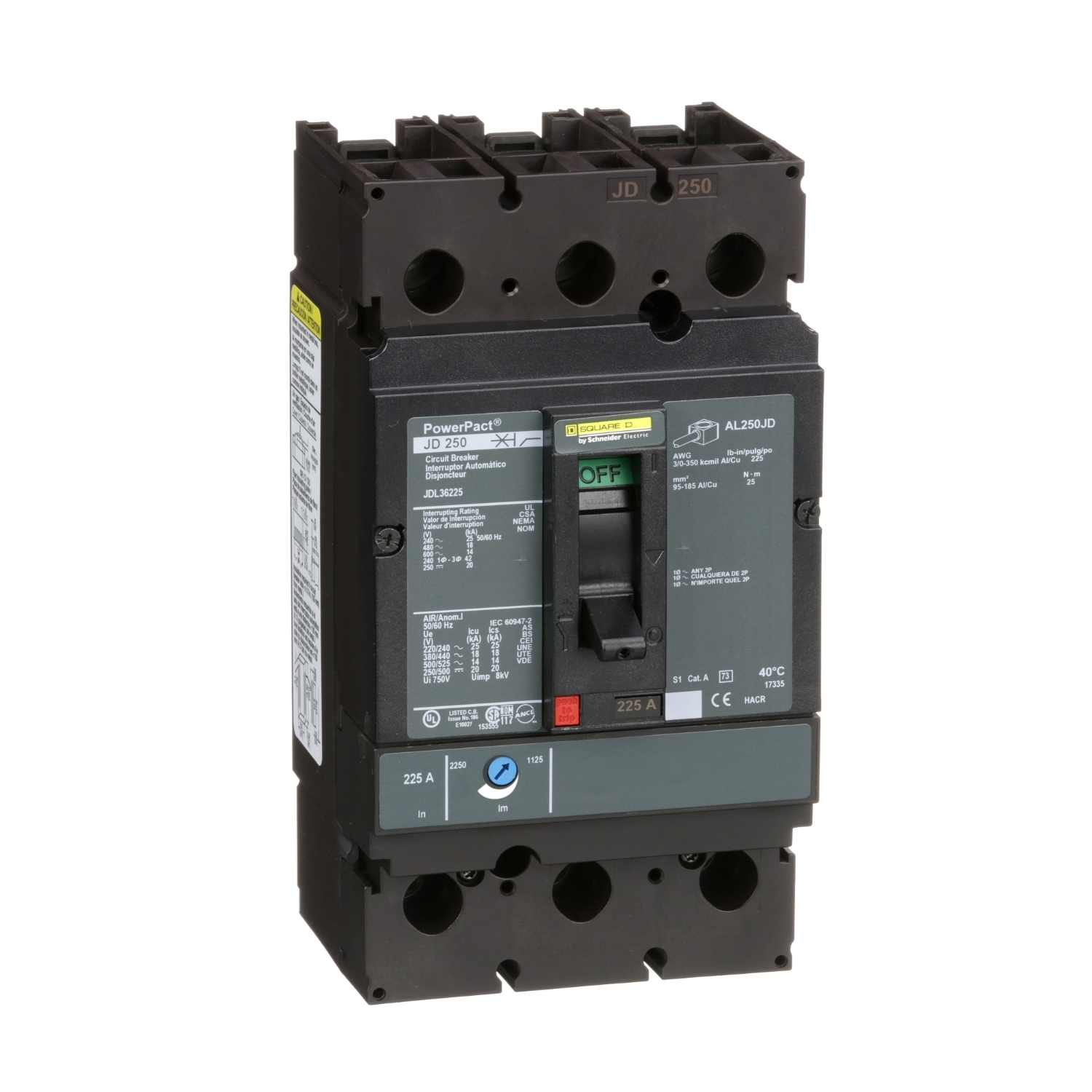

JDL36225 PowerPact Standard Type JDL Molded Case Circuit Breaker, 600 V AC/250 V DC, 225 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
JDL36225
UPC:
785901623175
Item #:
182936

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number JDL36225
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Canada
Made in USA No
Actuator Toggle
Application Distribution
Connection Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Ethernet;Overload protection;short-circuit protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425199&lang=en-us
UPC 785901623175
GTIN 00785901623175
Trip Type Thermal-magnetic
Cross Reference Products Eaton CHFD3225L|GEIndust TQD22225WL|Schneider JDL36225|Siemens FD63B225L|SquareD JDL36225
