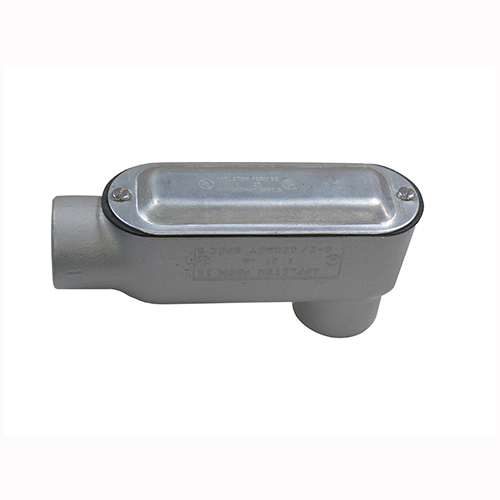

LB-75CG Type LB Conduit Outlet Body With Cover and Gasket, 3/4 in Hub, 7.5 cu-in Capacity, Malleable Iron, Aluminum Enamel/Zinc Electroplated
- MFR:
- O-Z/Gedney
- MFR #:
- LB-75CG
- UPC:
- 783126001457
- Item #:
- 182788
LB-75CG Type LB Conduit Outlet Body With Cover and Gasket, 3/4 in Hub, 7.5 cu-in Capacity, Malleable Iron, Aluminum Enamel/Zinc Electroplated
- MFR #:
- LB-75CG
- UPC:
- 783126001457
- Item #:
- 182788
Manuals & Documentation
| Catalog Number | LB-75CG |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Rigid Conduit And IMC |
| Connection | Tapered FNPT |
| Finish | Zinc Electroplated With Aluminum Enamel |
| Hub Size | 44624 |
| Material | Conduit Body: Malleable Iron, Cover: Type BS Steel Zinc Electroplated, Gasket: Type SGN Neoprene |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Internal volume and maximum wire capacity clearly marked on castings; Closed-cell neoprene gasket; Suitable for wet locations; Complete interchangeability with other manufacturers style 5 or 35 conduit bodies; Malleable iron suitable for use in concrete |
| Standard | Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563; NEMA : FB-1, FB-2.10 |
| UPC | 783126001457 |
| GTIN | 00783126001457 |
| Item Type | Type LB Conduit Body, Cover And Gasket Assembly |
| Length | 39571 |
| Width | 39452 |
