SQUARE D

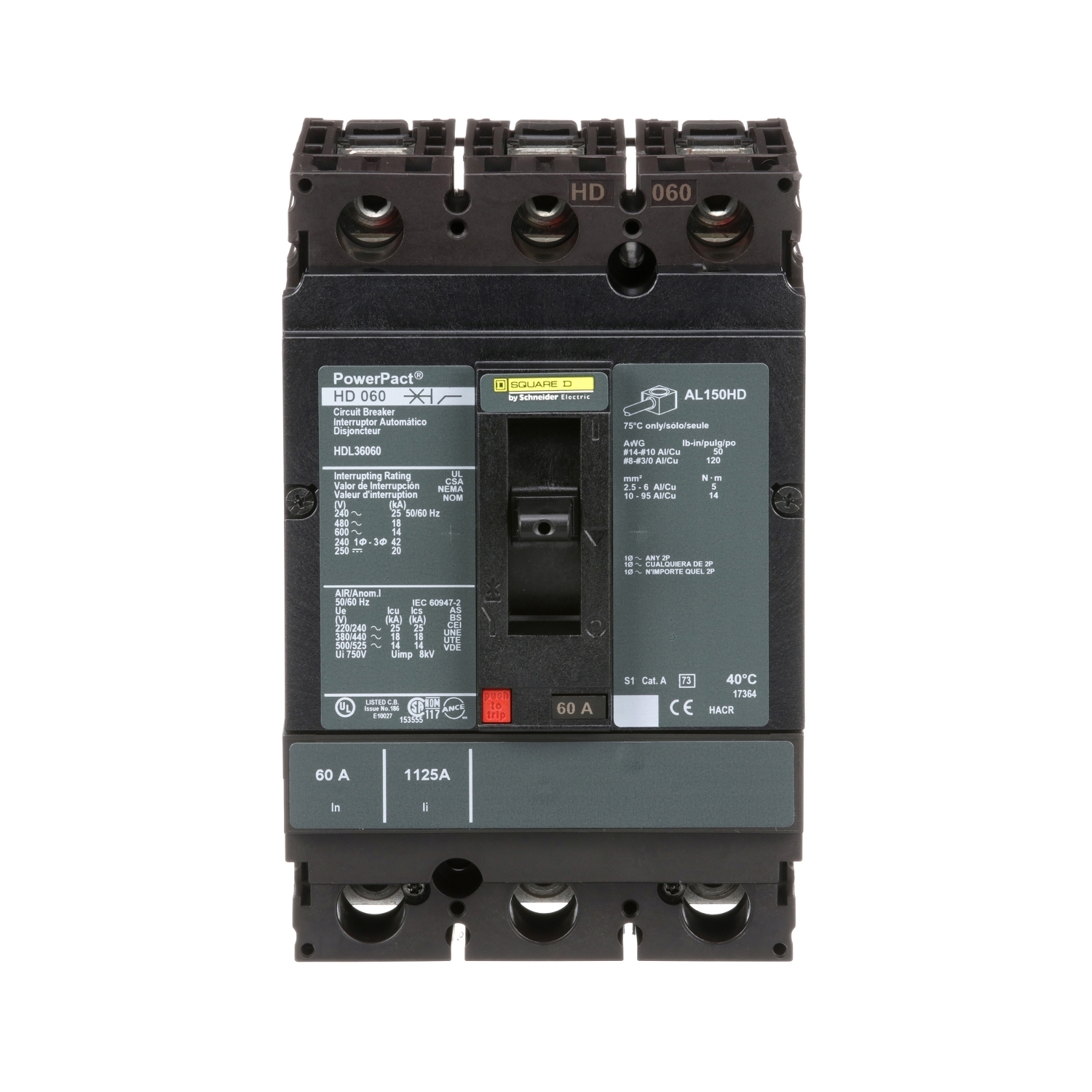

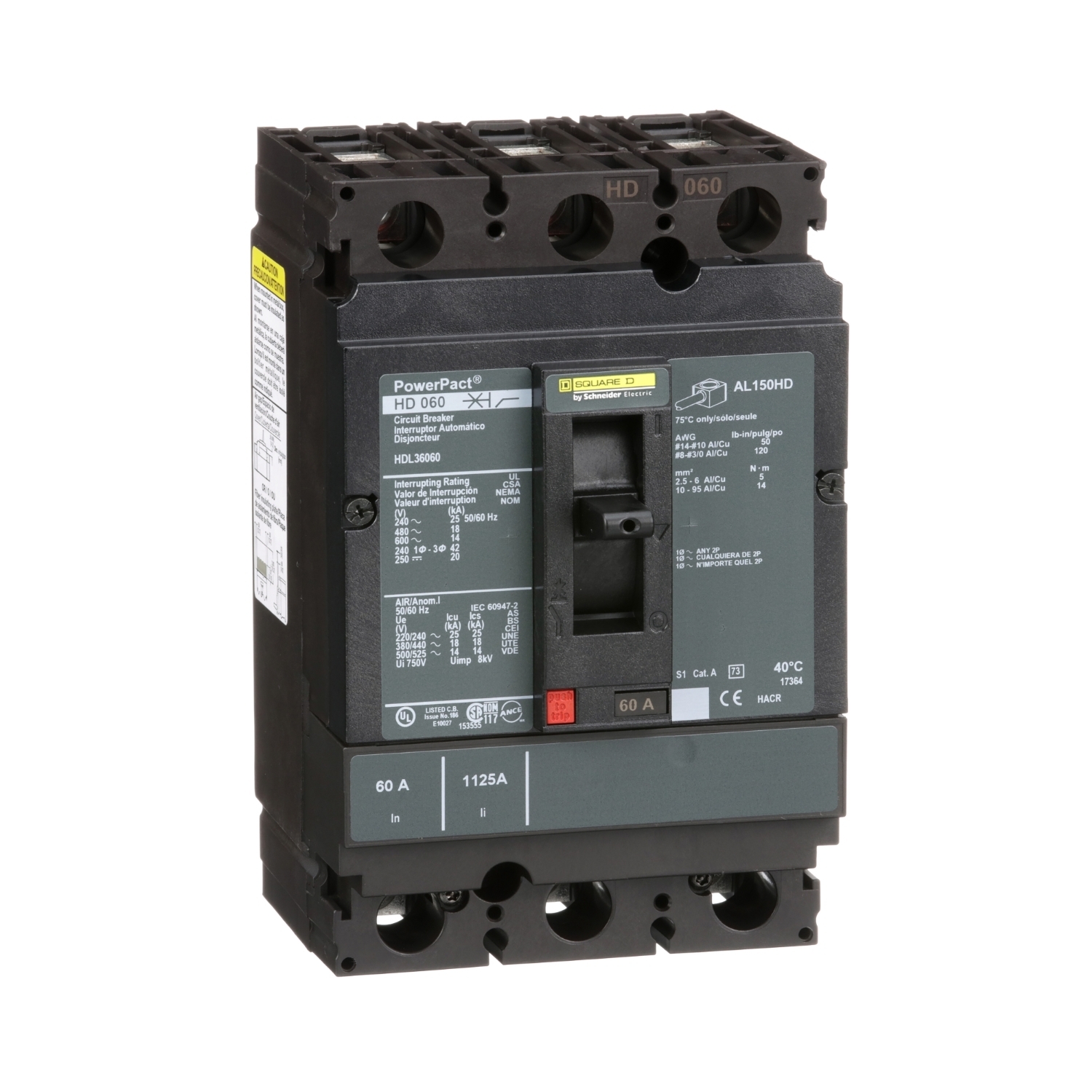

HDL36060 PowerPact 80% Rated Type HDA Molded Case Circuit Breaker, 600 V AC/250 V DC, 60 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
HDL36060
UPC:
785901577959
Item #:
182672

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number HDL36060
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Actuator Toggle
Application Distribution;HACR rated
Color Black
Connection Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Ethernet;1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421729&lang=en-us
UPC 785901577959
GTIN 00785901577959
Item Type Circuit breaker
Trip Type Thermal-magnetic
