LUCAX6BL LUCA Manual Solid State Standard Control, For Use With ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module
- MFR:
- Schneider Electric
- MFR #:
- LUCAX6BL
- Item #:
- 182412
LUCAX6BL LUCA Manual Solid State Standard Control, For Use With ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module
- MFR #:
- LUCAX6BL
- Item #:
- 182412

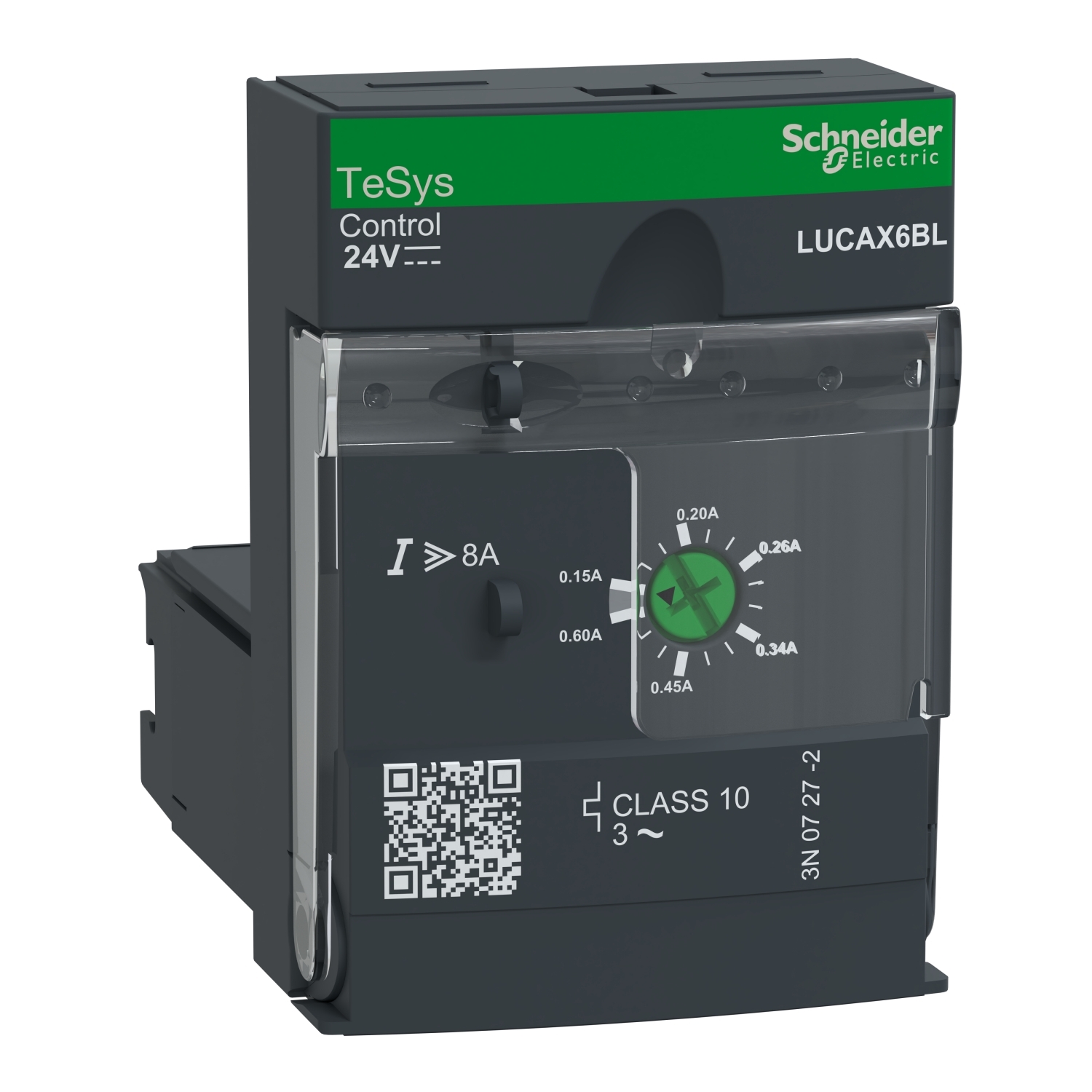

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09kW@400V. It provides full protection to motors with a rated current Ir 0.15-0.6A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals & Documentation
| Catalog Number | LUCAX6BL |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640684&lang=en-us |
| GTIN | 03389110363814 |
