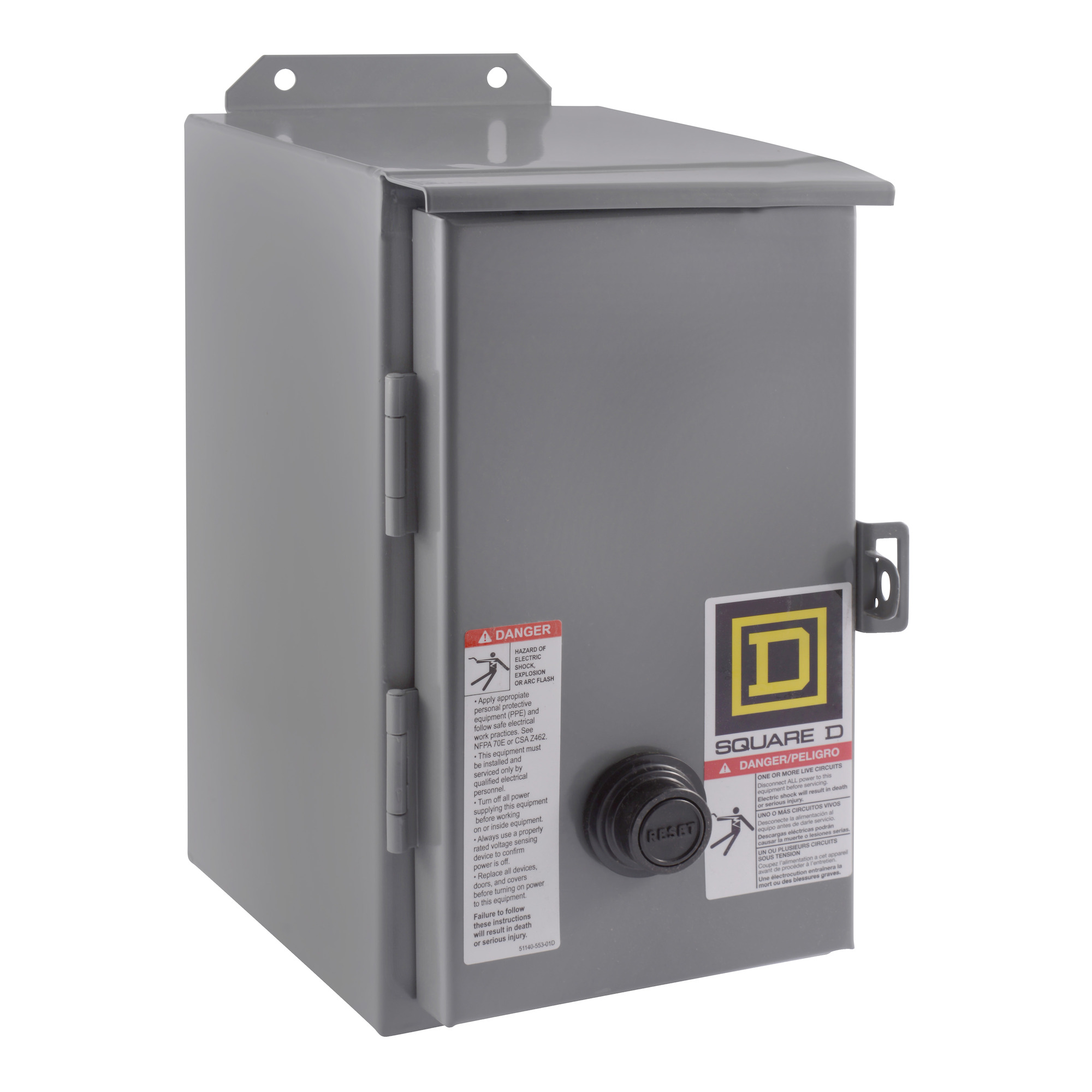

8536SBA2V03 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SBA2V03
- UPC:
- 785901789635
- Item #:
- 181579
8536SBA2V03 Type S Magnetic Starter, 220 VAC at 50 Hz/240 VAC at 60 Hz V Coil, 3 Poles, NEMA 12 Enclosure
- MFR #:
- 8536SBA2V03
- UPC:
- 785901789635
- Item #:
- 181579
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 12/3R dusttight and driptight industrial use enclosure is used to protect this starter. Enclosure is 12.75 inches tall, 6.38 inches wide and 8.53 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
| Catalog Number | 8536SBA2V03 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901789635 |
| GTIN | 00785901789635 |
