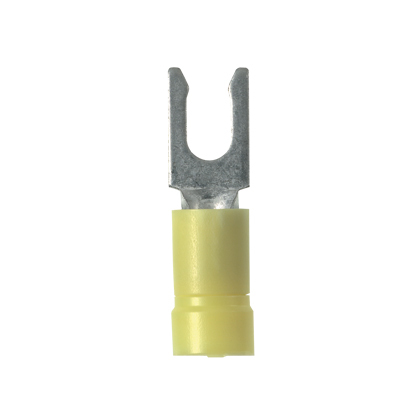

PV10-8LF-L Pan-Term Type PV-LF Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- PV10-8LF-L
- UPC:
- 074983808144
- Item #:
- 181388
PV10-8LF-L Pan-Term Type PV-LF Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Yellow
- MFR #:
- PV10-8LF-L
- UPC:
- 074983808144
- Item #:
- 181388
The PV10-8LF-L Pan-Term Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV10-8LF-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Funnel Entry |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983808144 |
| GTIN | 00074983808144 |
| Item Type | Locking Fork Terminal |
| Size | #8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
